Asus PRIME A320M-A SC-AM4 A320 DDR4 3200(OC) M.2 mATX Amd Anakart
ParaPuan : 916.300
- İşlemci
AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list - Yonga Seti
AMD A320 - Bellek
AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1
AMD 7th Generation A-series/Athlon™ Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Grafik
Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB - Genişleme Yuvaları
AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
2 x PCIe 2.0 x1 - Depolama
AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
2 x SATA 6Gb/s port(s), gray,
AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*4 - LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) - Ses
Realtek® ALC887 8-Channel High Definition Audio CODEC - USB Portları
AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD A320 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) - ASUS´a Özel Özellikler
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM - Operating System Support

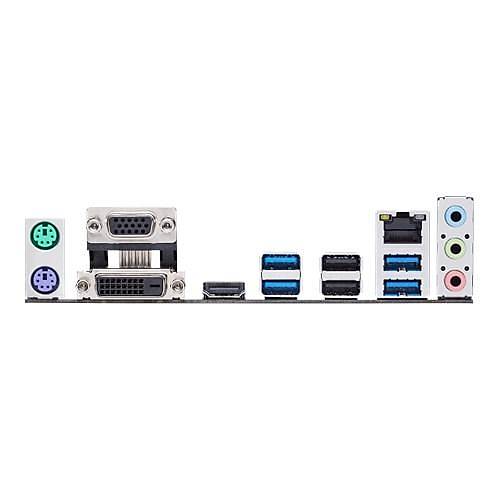

Windows® 10 , 64bit - Arka Giriş/Çıkış Portları
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s) - Dahili Giriş/Çıkış Portları
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector - Aksesuarlar
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control - İşletim Sistemi
Windows® 10 64-bit - Form Faktörü
mATX Form Factor
9.6 inch x 9.45 inch ( 24.4 cm x 24 cm ) - Not
1*Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel.
2*AMD Ryzen™ Processor does not support.
3*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
4*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
| Teknik Özellikler | |
|---|---|
| Soket Yapısı | AM4 |
| Bellek Tipi | DDR4 |
| Chipset | A320 |
| Ekran Kartı | Onboard |
| D-Sub Çıkışı | Var |
| Dvı Çıkışı | Var |
| Hdmı Çıkışı | Var |
| Display Port Çıkışı | Yok |
| M.2 Slotu | Var |
| Kablosuz Bağlantı | Yok |
| Ryzen 1. Nesil Desteği | Var |
| Yapısı | mATX |
| Ryzen 2. Nesil Desteği | Var |
| Ryzen 3. Nesil Desteği | Yok |
| Ryzen 4. Nesil Desteği | Yok |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | 90MB0VA0-M0EAY0 |
| Marka | ASUS |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
