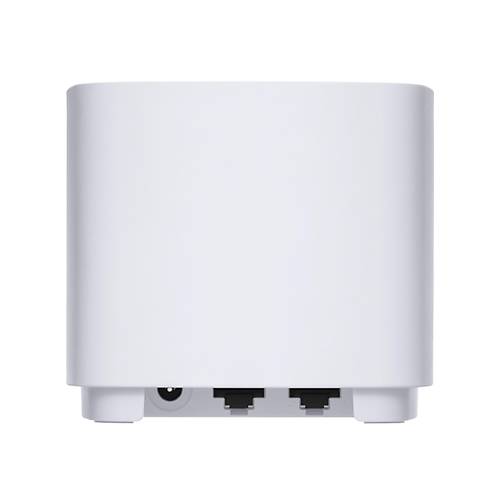

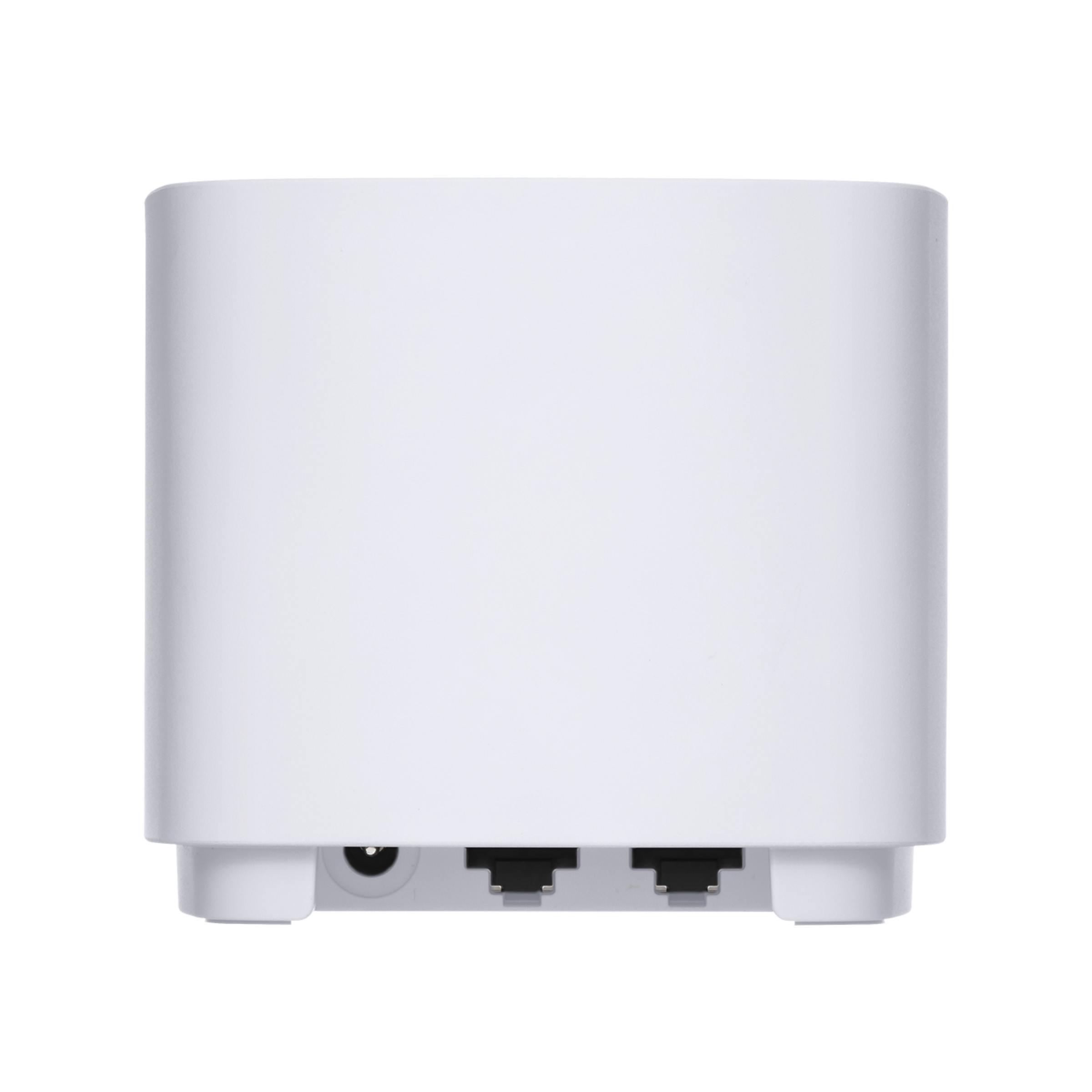

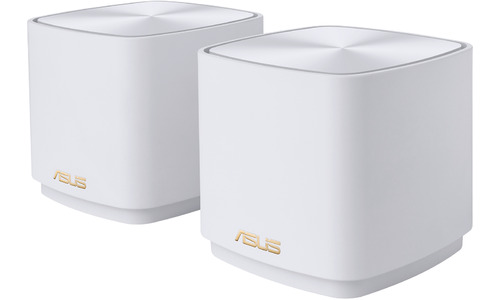

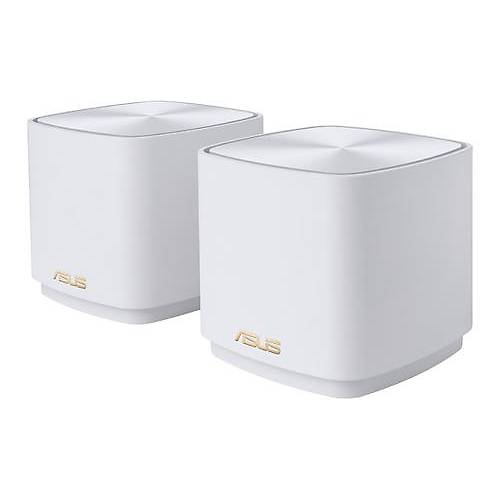

Asus XD4 PLUS W-2-PK ZenWiFi 1 Port Gigabit AX1800 Dual Band 2 li Paket Beyaz Access Point

Model Name

XD4 PLUS (W-2-PK)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 4 (802.11n) TurboQAM : up to 867 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

Internal dual-band antenna x 2

Transmit / Receive

MIMO technology
2.4GHz 2x2
5GHz 2x2

Memory

128 MB Flash, 256 MB RAM

Boosts Speed

MIMO technology

Operating Frequency

2.4 G Hz / 5 GHz

I/O Ports

RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Buttons

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

"AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current"

Package Content

XD4 Plus
?RJ45 Ethernet cable
?Power adapter
?Quick start guide
?Warranty card
?Screw pack

Product Weight (g)

307 g

Product Dimensions

90 x 90 x 85 mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule

Router APP

APP: ASUS Router APP

Guest Network

Support Guest Network
• Maximum Guest Network Rule : 6
Guest Network Connection Time Limit

Security

WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let's Encrypt
SSH
Firewall

AiProtection

AiProtection Classic
• Malicious Site Blocking
• Infected Device Prevention and Blocking

VPN

VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP

Traffic Control

• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
• Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

UTF-8 SSID

USB application

4G / 5G Auto Mobile Tethering

Administration

Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
