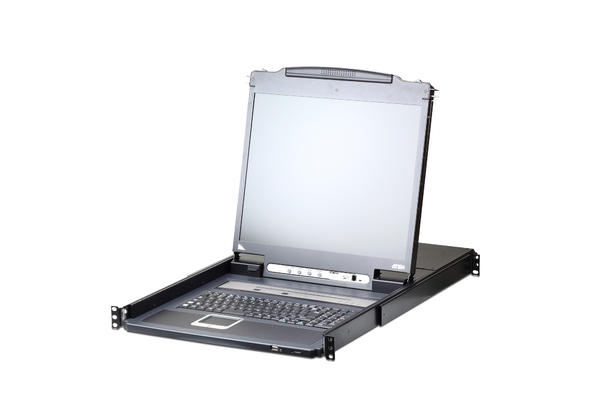

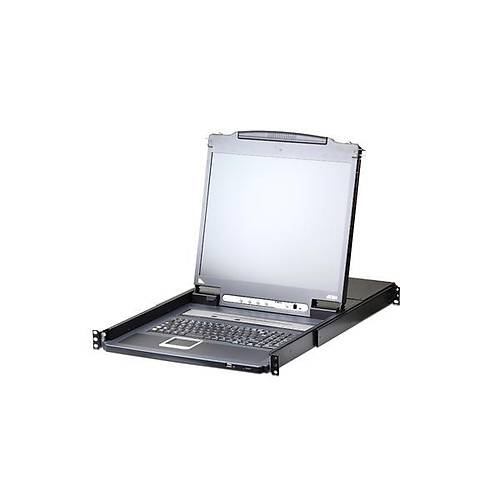

  • Aten CL5708IMt 8 Port Vga 17 inch Slıdeaway USB 2.0 Kvm Switch

    Görsel 1
    Görsel 2
    Görsel 3
    ParaPuan : 9.888.420
    Fiyat:
    23.336,67 TL
    Havale / EFT:
    22.869,94 TL
    1.966,11 TL'den başlayan taksit seçenekleri için tıklayın.
    1
    8-Port PS/2-USB VGA LCD KVM over IP Switch with 17" LED-backlit LCD monitor in a Slideaway™, Turkish keyboard, Daisy-Chain Port and USB Peripheral Support
    • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway™ housing
    • Space saving technology - up to two consoles (one bus) control up to 8 computers
    • Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
    • Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
    • Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
    • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
    • LCD module USB port allows connected computers to access USB peripherals*
    • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
    • Hot pluggable - add or remove computers without having to power down the switch
    • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
    • Supports multimedia USB keyboards for Windows, Mac and Sun
    • Supports external USB mouse
    • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
    • Rack mountable in a 1U system rack
    • LCD module rotates up to 115 degrees for a more comfortable viewing angle
      * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.




    • Management
    • Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
    • Up to 32 concurrent logins
    • Multilanguage web UI support featuring a tree-structured local and remote OSD
    • Adjustable video quality for flexible adaptation to diverse network environments
    • Auto Scan mode enables continuous monitoring of user-selected computers
    • Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
    • Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
    • Integration with CC2000 Centralized Management Software
    • Backup and restore configuration and user account settings
    • Event logging
    • IPv6 capable




    • Ease-to-Use Interface
    • Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
    • Multiplatform support - Windows, Linux, Mac, and Sun
    • Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
    • Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
    • Windows client and Java client software support; Java client works with all operating systems
    • Beeper on/off via hotkey and OSD
    • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese




    • Advanced Security
    • Secure keyboard/mouse/video transmission via RC4 128 bit encryption
    • Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
    • Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
    • External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
    • Support for IP/MAC Filter
    • Local and remote access logged and authenticated




    • Virtual Remote Desktop
    • Resizable remote desktop window
    • Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
    • Mouse DynaSync™
    • On-screen keyboard with multi-language support
    • BIOS-level access



    • 1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
    • 2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
    • 1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
    • 1x Firmware Upgrade Cable
    • 1x Power Cord
    • 1x User Instructions



    FunctionCL5708IMCL5708IN
    Computer Connections
    Direct88
    Maximum128 (via Daisy-chain)128 (via Daisy-chain)
    Port SelectionOSD, Hotkey, PushbuttonsOSD, Hotkey, Pushbuttons

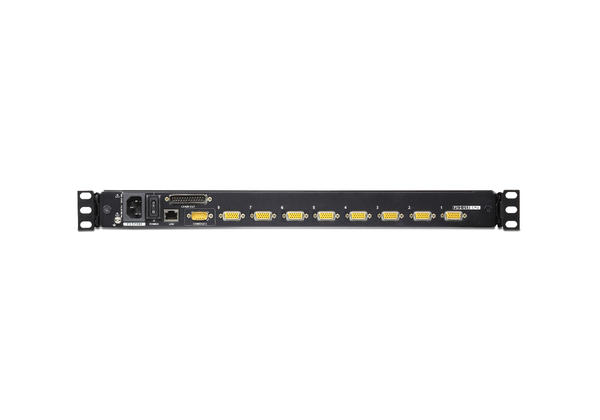

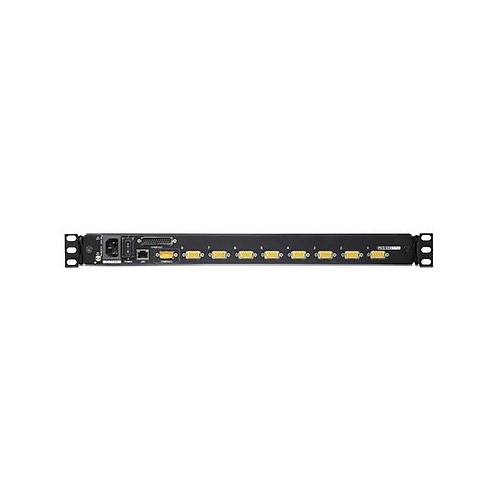

    Connectors
    External Console Ports1 x SPHD-18 Male (Yellow)1 x SPHD-18 Male (Yellow)
    External Mouse Port1 x USB Type-A Female1 x USB Type-A Female
    KVM Ports8 x SPHD-17 Female (Yellow)8 x SPHD-17 Female (Yellow)
    Daisy Chain Ports1 x DB-25 Male (Black)1 x DB-25 Male (Black)
    Firmware Upgrade1 x RJ-11 Female1 x RJ-11 Female
    Power1 x 3-prong AC Socket1 x 3-prong AC Socket
    USB Port1 x USB Type A Female1 x USB Type A Female
    LAN Ports1 x RJ-45 Female1 x RJ-45 Female
    Switches
    Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
    Power1 x Rocker Switch1 x Rocker Switch
    Firmware Upgrade1 x Switch1 x Switch
    LCD Adjustment4 x Pushbutton4 x Pushbutton
    LCD On/Off1 x LED Pushbutton (Orange)1 x LED Pushbutton (Orange)
    Port Selection2 x Pushbutton2 x Pushbutton
    Station Selection2 x Pushbutton2 x Pushbutton
    LEDs
    Port ID2 x 7-segment LED Display (Yellow)2 x 7-segment LED Display (Yellow)
    Station ID2 x 7-segment LED Display (Yellow)2 x 7-segment LED Display (Yellow)
    Power1 (Dark Green)1 (Dark Green)
    Lock1 x Num Lock (Green)
    1 x Caps Lock (Green)
    1 x Scroll Lock (Green)
    1 x Num Lock (Green)
    1 x Caps Lock (Green)
    1 x Scroll Lock (Green)
    Online8 x (Orange)8 x (Orange)
    10/100 Mbps1 (Orange/Green)1 (Orange/Green)
    Panel Spec
    LCD Module17" TFT-LCD19" TFT-LCD
    Response time5 ms5 ms
    Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
    Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
    Support Color16.7M colors16.7M colors
    Contrast Ratio1000:11000:1
    Luminance250 cd/m²250 cd/m²
    Emulation
    Keyboard / MousePS/2, USBPS/2, USB
    Video
    Local1280 x 1024 @75 Hz; DDC2B1280 x 1024 @75 Hz; DDC2B
    Remote1920 x 1200 @60 Hz1920 x 1200 @60 Hz
    Scan Interval1-255 sec.1-255 sec.
    Maximum Input Power Rating100-240V AC, 50-60Hz, 1A100-240 VAC, 50-60Hz, 1A
    Power
    Consumption120V/15.2W; 230V/16W120V/24W; 230V/25W
    Environmental
    Operating Temperature0-50°C0-50°C
    Storage Temperature-20-60°C-20-60°C
    Humidity0-80% RH, Noncondensing0-80% RH, Noncondensing
    Physical Properties
    HousingMetal + PlasticMetal + Plastic
    Weight13.49 kg ( 29.71 lb )13.41 kg ( 29.54 lb )
    Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm
    (18.9 x 25.3 x 1.73 in.)
    48.00 x 68.92 x 4.40 cm
    (18.9 x 27.13 x 1.73 in.)
    Diğer Özellikler
    Stok KoduATEN-CL5708IMT
    MarkaATEN
    Stok DurumuVar
    Garanti (Yıl)2
    4719264645600
