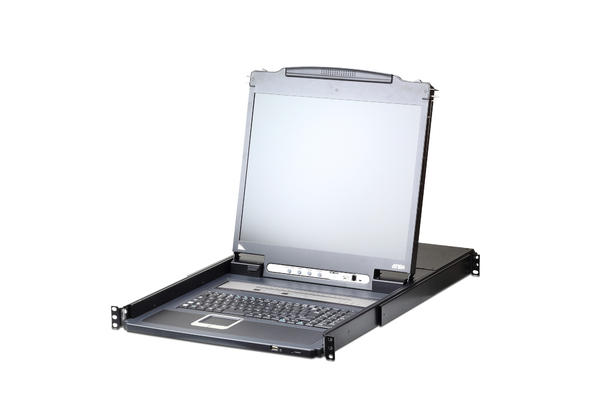

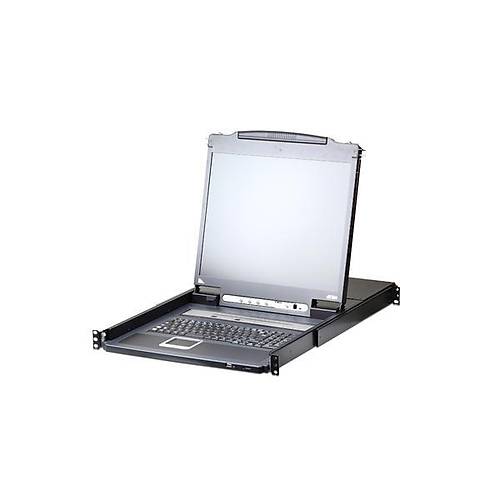

Aten CL5716INT 16 Port Vga 17 inch Ekran PS/2 - USB Kvm Switch
ParaPuan : 26.413.200
| Fiyat | : | 63.391,68 TL |
| Havale / EFT | : | 62.440,80 TL |
11.621,81 TL'den başlayan taksit seçenekleri için tıklayın.
16-Port PS/2-USB VGA 17"LCD KVM over IP Switch with Daisy-Chain Port and USB Peripheral Support, English keyboard
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing

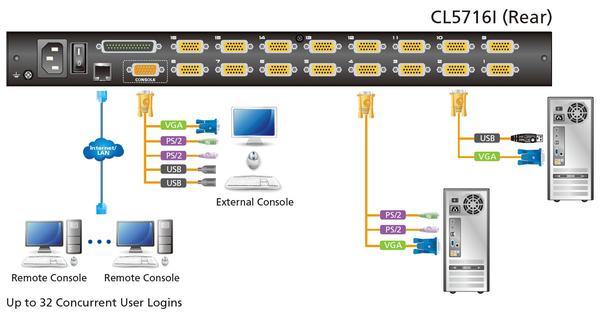

- Space saving technology - up to two consoles (one bus) control up to 16 computers
- Daisy chain up to 15 additional units – control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
- Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows connected computers to access USB peripherals*
- Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
- Hot pluggable - add or remove computers without having to power down the switch
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports multimedia USB keyboards for Windows, Mac and Sun
- Supports external USB mouse
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Rack mountable in a 1U system rack
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
- Management
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
- Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
- Integration with CC2000 Centralized Management Software
- Backup and restore configuration and user account settings
- Event logging
- IPv6 capable
- Ease-to-Use Interface
- Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
- Multiplatform support - Windows, Linux, Mac, and Sun
- Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
- Windows client and Java client software support; Java client works with all operating systems
- Beeper on/off via hotkey and OSD
- Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
- Advanced Security
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
- Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
- Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
- External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
- Support for IP/MAC Filter
- Local and remote access logged and authenticated
- Virtual Remote Desktop
- Resizable remote desktop window
- Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
- Mouse DynaSync™
- On-screen keyboard with multi-language support
- BIOS-level access
- 1x CL5716I LCD KVM over IP Switch with standard Rack Mount Kit
- 2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
- 1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
| Function | CL5716IM | CL5716IN |
| Console Connections | ||
| Local | 1 (Share Remote Bus) | 1 (Share Remote Bus) |
| Remote | 1 | 1 |
| Computer Connections | ||
| Direct | 16 | 16 |
| Maximum | 256 (via Daisy-chain) | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbuttons | OSD, Hotkey, Pushbuttons |

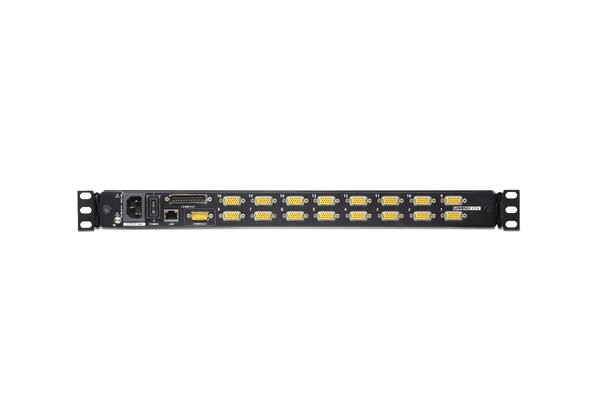

| Connectors | ||
| External Console Ports | 1 x SPHD-18 Male (Yellow) | 1 x SPHD-18 Male (Yellow) |
| External Mouse Port | 1 x USB Type-A Female | 1 x USB Type-A Female |
| USB Port | 1 x USB Type-A Female | 1 x USB Type-A Female |
| KVM Ports | 16 x SPHD-17 Female | 16 x SPHD-17 Female |
| Daisy Chain Ports | 1 x DB-25 Male | 1 x DB-25 Male |
| Firmware Upgrade | 1 x RJ-11 Female | 1 x RJ-11 Female |
| LAN Ports | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Power | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 |
| Switches | ||
| Port Selection | 2 x Pushbutton | 2 x Pushbutton |
| Station Selection | 2 x Pushbutton | 2 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Switch | 1 x Switch |
| Power | 1 x Rocker Switch | 1 x Rocker Switch |
| LCD On/Off | 1 x LED Pushbutton (Orange) | 1 x LED Pushbutton (Orange) |
| LCD Adjustment | 4 x Pushbutton | 4 x Pushbutton |
| LEDs | ||
| Online | 16 x (Orange) | 16 x (Orange) |
| Port ID | 1 x 2-digit, 7-segment (Yellow) | 1 x 2-digit, 7-segment (Yellow) |
| Station ID | 1 x 2-digit, 7-segment (Yellow) | 1 x 2-digit, 7-segment (Yellow) |
| 10/100 Mbps | 1 x (Orange/Green) | 1 x (Orange/Green) |
| Power | 1 x (Dark Green) | 1 x (Dark Green) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| Video | ||
| Remote | 1920 x 1200 @60 Hz | 1920 x 1200 @60 Hz |
| Panel Spec | ||
| LCD Module | 17" TFT-LCD | 19" TFT-LCD |
| Resolution | 1280 x 1024 @75 Hz | 1280 x 1024 @75 Hz |
| Pixel Pitch | 0.264 mm x 0.264 mm | 0.294 mm x 0.294 mm |
| Response time | 5 ms | 5 ms |
| Viewing Angle | 170° (H), 160° (V) | 170° (H), 160° (V) |
| Support Color | 16.7M colors | 16.7M colors |
| Contrast Ratio | 1000:1 | 1000:1 |
| Luminance | 250 cd/m² | 250 cd/m² |
| Emulation | ||
| Keyboard / Mouse | PS/2, USB | PS/2, USB |
| Scan Interval | 1-255 sec. | 1-255 sec. |
| Maximum Input Power Rating | 100-240V AC, 50-60Hz, 1A | 100-240 VAC, 50-60Hz, 1A |
| Power Consumption | 120V/17W; 230V/18W | 120V/26W; 230V/26.8W |
| Environmental | ||
| Operating Temperature | 0-50°C | 0-50°C |
| Storage Temperature | -20-60°C | -20-60°C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal + Plastic | Metal + Plastic |
| Weight | 13.61 kg ( 29.98 lb ) | 13.67 kg ( 30.11 lb ) |
| Dimensions (L x W x H) | 48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.) | 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | ATEN-CL5716INT |
| Marka | ATEN |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
