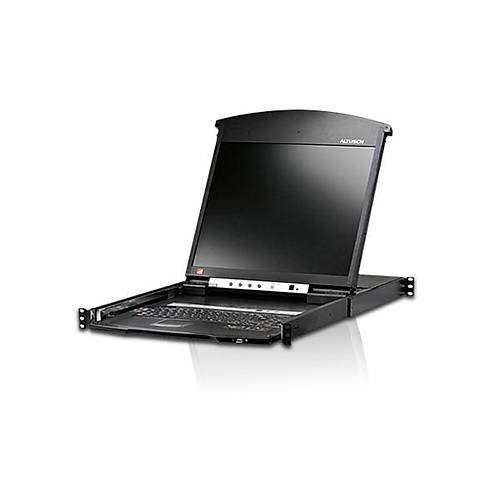

Aten CL6700MW 8 Port Cat 5 17.3 inch Dual Raıl USB 2.0 Kvm Switch
ParaPuan : 14.911.680
USB DVI Geniş Ekran Full HD LCD Konsol, USB Periferi/USB Çevre Cihazlarla Bağlantı Kurabilir
USB DVI WideScreen Full HD LCD Console with USB Peripheral Support
USB DVI WideScreen Full HD LCD Console with USB Peripheral Support
- ntegrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Supports an external console with USB / DVI / VGA / HDMI connectors
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
- Audio support for connecting speakers
- Standard 105-key keyboard; Sun keyboard emulation
- Multiplatform support – Windows, Linux, Mac, and Sun
- Adjustable depth to fi t within the rack
- Firmware upgradeable
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
- Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
- 1x CL6700MW DVI Full HD LCD Console with Standard Rack Mount Kit
- 1x Custom USB DVI KVM Cable Set
- 1x Power Cord
- 1x Firmware Upgrade Cable
- 1x User Instructions
| Panel Spec | |
| LCD Module | 17.3" TFT-LCD |
| Pixel Pitch | 0.1989 mm x 0.1989 mm |
| Support Color | 262144 colors |
| Contrast Ratio | 650:1 |
| Luminance | 300 cd/m² |
| Response time | 8 ms |
| Viewing Angle | 140° (H), 120° (V) |
| Computer Connections | 1 |
| Console Selection | Hotkey |
| Connectors | |
| External Console Ports | 2 x USB Type A Female 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 1 x HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) |
| KVM Ports | 1 x USB Type B Female 1 x DVI-D Female (White) 1 x HDB-15 Male (Blue) 1 x HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) |
| External Mouse / Peripheral | 1 x USB Type A Female |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x 3-prong AC Socket |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 1 x Rocker |
| Firmware Upgrade | 1 x Slide |
| LCD Power | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbutton |
| LEDs | |
| Power | 1 (Green) |
| Lock | 1 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60Hz, DDC2B |
| Maximum Input Power Rating | 100–240V AC; 50–60Hz; 1A |
| Power Consumption | 120V/19.4W; 230V/19.4W |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 11.38 kg ( 25.07 lb ) |
| Dimensions (L x W x H) | 48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.) |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | ATEN-CL6700MW |
| Marka | ATEN |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
