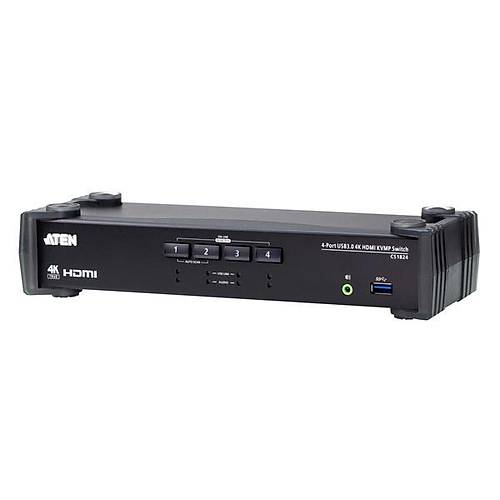

Aten CS1824 4 Port USB 3.0 4K HDMI KVMP Switch

Görsel 1
Görsel 2
Görsel 3
ParaPuan : 7.574.405
Fiyat:
18.178,57 TL
Havale / EFT:
17.905,89 TL
3.453,93 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

4-Port USB 3.0 4K HDMI KVMP™ Switch


  • One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
  • Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
  • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio Mixer Modes – mixes up to two audio sources as audio output
  • Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
  • ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
  • Independent switching of KVM, USB peripheral, and stereo audio focus2
  • HDMI 2.0 compliant; HDCP 2.2 compliant
  • Supports HD Audio2
  • Power on detection
  • Firmware upgradable



Note:

1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.

2. HD audio through HDMI channel cannot be switched independently



Computer Connections4
Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports4 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Serial1 x RJ-11 Female
Power1 x DC Jack
USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected4 x Pushbutton
LEDs
On Line /Selected4 (Orange)
USB Link4 (Green)
Audio4 (Green)
Emulation
Keyboard / MouseUSB
Video4096 x 2160 @ 60Hz
Scan Interval1-99 Seconds (Default: 5 sec.)
Power ConsumptionDC5V:2.535W:54.5BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic

Diğer Özellikler
Stok KoduATEN-CS1824
MarkaATEN
Stok DurumuVar
Garanti (Yıl)2
4719264649424
