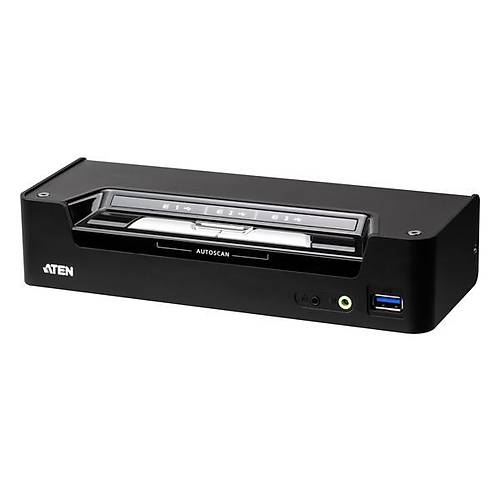

Aten CS1953 3 Port USB Type C Display Port Hybrid KVMP Switch


  • One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals
  • Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Provides USB Power Delivery 3.0 for USB-C device charging up to 45W1
  • Computer selection via pushbuttons, hotkeys, mouse2, and remote port selector
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • Independent switching of KVM, USB peripheral, and audio focus3
  • DisplayPort 1.2 compliant; HDCP 1.4 compliant
  • Supports HD Audio3
  • Supports DisplayPort Dual-Mode technology (DP++)4
  • Firmware upgradeable
  • Bus-powered5

    Note:
    1. An additional power adapter is needed on the CS1953 for USB-C device charging to work.
    2. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
    3. HD audio through DisplayPort channel cannot be switched independently.
    4. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source’s DP++ compatibility.
    5. The unit can be bus-powered by the connected KVM sources via USB ports.



Package Contents
  • 1x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch
  • 2x DisplayPort 1.2 Cables
  • 2x USB 3.0 Type-A to Type-B Cables
  • 1x USB-C Cable
  • 3x Audio Cables
  • 1x Remote Port Selector
  • 1x User Instructions
  • 1x Power Adapter*
  • Note: *The CS1953 is provided in two packages; one package contains a power adapter, the other does not.

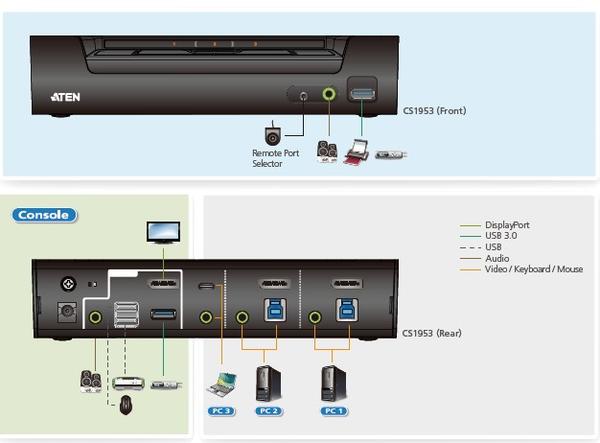

Computer Connections 3
Port Selection Hotkey, Pushbutton, Mouse, Remote Port Selector

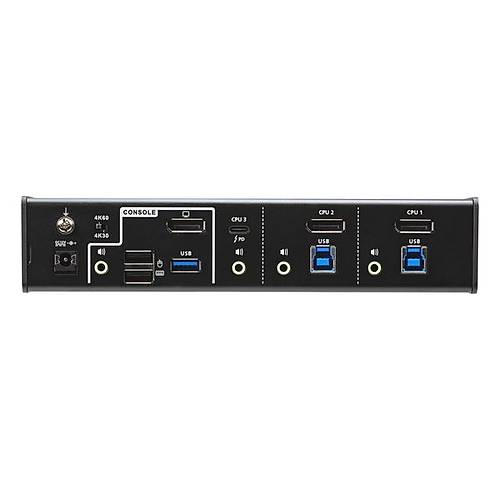

Connectors
Console Ports 2 x USB Type A Female
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports CPU1 and CPU2:
2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
CPU3:
1 x USB Type-C Female (Black)
1 x 3.5mm Audio Jack Female (Green)
Remote Port Selector 1 x 2.5mm Audio Jack Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front, 1 x rear)
Switches
Selected 3 x Pushbutton
Mode Switch 1 x Slide Switch
LEDs
Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 60Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC12V:5.78W:269BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.63 x 7.54 x 4.40 cm
(8.12 x 2.97 x 1.73 in.)

Diğer Özellikler
Stok KoduATEN-CS1953
MarkaATEN
Stok DurumuVar
Garanti (Yıl)2
4710469340604
