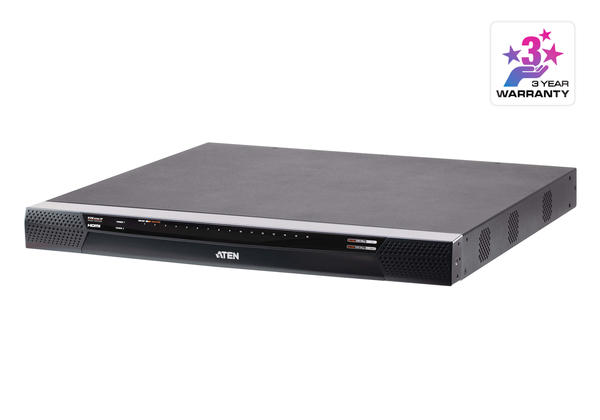

Aten KN2116VB 1 Local 2 Remote Access 16 Port Multi-Interface Cat 5 KVM over IP Switch

^{Aten KN2116VB 1 Local 2 Remote Access 16 Port Multi-Interface Cat 5 KVM over IP Switch}

• Hardware
  • High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
  • Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
  • 2 separate buses for remote KVM over IP access (varies by different models)
  • Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
  • Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual power supply
  • Video resolution up to 1920 x 1200 @ 60 Hz; 24-bit color depth
  • Cascadable – controls up to 512 computers

• Management
  • Simultaneously share 1 local console and 2 independent connection to the attached servers
  • Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
  • Supports 64 user accounts and up to 32 users can be logged in at the same time for management
  • Green IT Fan – auto-fan-speed adjustment responding to temperature
  • Event logging and Windows-based log server
  • Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
  • Event destination – event logs will be saved to Log server, Syslog server, and USB drive
  • Firmware upgradeable
  • Out-of-Band access – modem dial-in / dial-out / dial-back support
  • Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
  • Port share mode – allows multiple users to gain access to a server simultaneously
  • Supports ATEN KVM over IP console station (KA82xx series)
  • Power association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
  • Supports IPv4, IPv6

• Easy-to-Use Interface
  • Supports PadClient application on an iPad for mobile management
  • Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
  • Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivities
  • Multiplatform client support (Windows, Mac OS X, Linux, and Sun)
  • Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, and Netscape
  • Browser-based GUI in pure Web technology – allows administrators to perform administrative tasks without pre-installed software. (e.g. Java)
  • Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
  • Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
  • Full-screen or sizable and scalable virtual remote desktop
  • Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously
  • Video syncing with the local console – local console monitor’s EDID information stored on the KVM adapter for display resolution optimization

• Security
  • High-grade security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for independent keyboard / mouse, video, and virtual media data encryption
  • Support for IP / MAC filter
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third party CA certificate authentication

• Virtual Media
  • Virtual media enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images

• Virtual Remote Desktop
  • Video quality such as monochrome color depth, threshold and noise settings, bandwidth increment / reduction can be adjusted for optimizing data transfer speed
  • Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multi-language support
  • BIOS-level access for troubleshooting

• 1x KN2116VB KVM over IP Switch
• 2x power cords
• 1x mounting kit
• 2x Lok-U-Plugs
• 1x Lok-U-Plug installation tool
• 1x foot pad set (4 pcs.)
• 1x user instructions
