Aten UH3239 USB Type C to HDMI Multipoer mini Dock with Power Pass Through

Görsel 1
Görsel 2
Görsel 3
ParaPuan : 958.320
2.299,97 TL
Havale / EFT:
2.265,47 TL
436,99 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

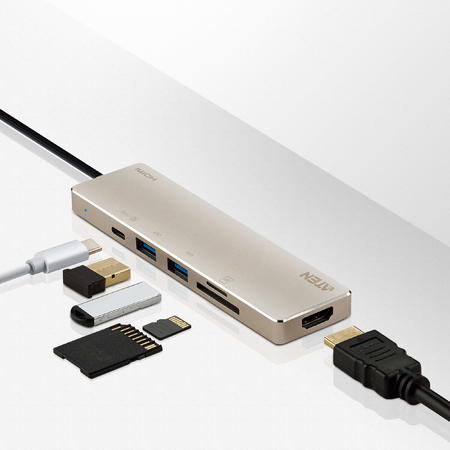

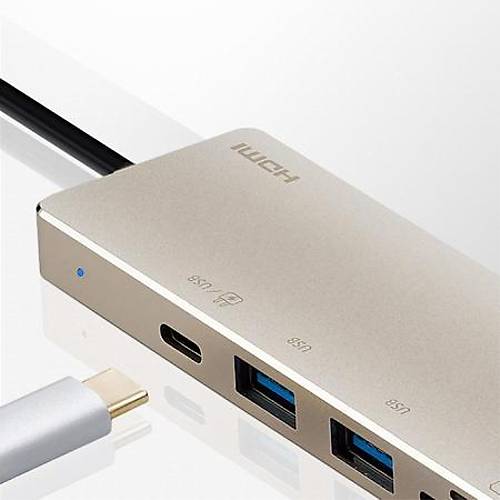

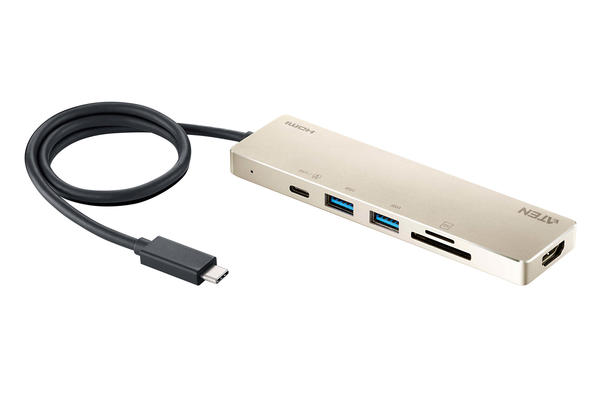

Aten UH3239 USB Type C to HDMI Multipoer mini Dock with Power Pass Through

The UH3239 USB-C Multiport Mini Dock with Power Pass-Through is a portable, versatile and flexible 6-in-1 adapter for USB-C PCs or laptops. The durable aluminum enclosure ships with dual USB 3.2 Type-A ports, a USB-C PD port, an HDMI port along with an SD card and a MicroSD card slots. It covers users' peripheral connectivity demands while allowing power delivery to the connected USB-C device. It supports resolutions up to 4K HDMI (3840 x 2160 @ 30Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD resolution on the 4K graphics-supported laptop. Besides, its 2 USB 3.2 Gen 1 Type-A ports guarantee effective communication with peripherals at a decent 5 Gbps transmission speed. Thanks to the USB-C PD port, the UH3239 can provide power or charge the external devices, and hence, there will be no more tangled data cables on the desk.

The UH3239 is a plug-and-play device compatible with all major operating systems (Windows®, macOS X and iPadOS). It is a compact, yet competent, data and power transmission solution for on-the-go professionals when it comes to building a mobile workstation ecosystem.


  • 6-in-1 multi-function dock that includes 1x HDMI, 1x SD / Micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports
  • Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter – power profiles include 5V, 12V, 15V, 20V
  • Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for superior video distribution
  • Plug and Play – no drivers needed
  • Works with all major operating systems: Windows®, macOS X and iPadOS
  • Compatible with Thunderbolt™ 3 (USB-C)


Computer Connections 1
Cable Length 55cm
Computer USB 3.2 Gen1 Type-C Male Cable
Device 2 x USB 3.2 Gen 1 Type-A Female (Blue)
Power 1 x USB Type-C Female ( (supports USB 3.2 Gen1 Type-C Port data transfer) )

Support Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 12V, 15V, 20V (additional USB-C power adapter needed)
Video Output 1 x HDMI Female (Black)
Flash Memory Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0
SD (Capacity up to 2GB)
SDHC (Capacity up to 32GB)
SDXC (Capacity up to 2TB)
Video Resolution 3840 x 2160@30Hz
Power Consumption DC5V:15WBTU
System Requirements Windows 10 or later, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 or later, USB-C enabled computer

iPadOS 13.1 or later, iPad Pro (USB-C)
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Aluminum
Weight 0.08 kg ( 0.18 lb )
Dimensions (L x W x H) 13.30 x 3.60 x 1.10 cm
(5.24 x 1.42 x 0.43 in.)


Teknik Özellikler
Giriş PortuUsb 3.0 Type C
Çıkış PortuHdmı
Usb Portu Var
PD Port Var
Ethernet PortuYok
Diğer Özellikler
Stok KoduATEN-UH3239
Stok DurumuVar
Garanti (Yıl)2
