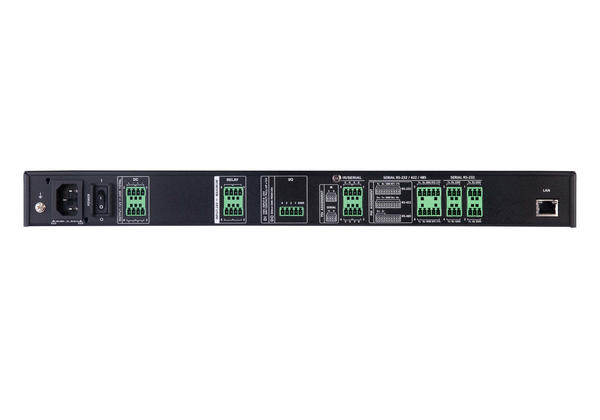

Görsel 1

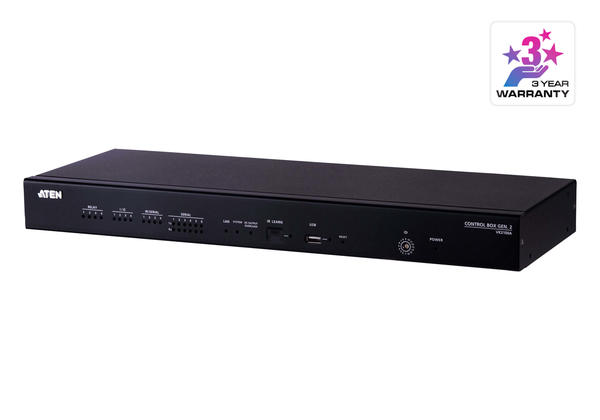

Görsel 2
Lütfen Teklif İsteyin
Aynı Gün Kargo Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış

Aten VK2100A  Contorl System Box Gen 2


  • High-performance processor embedded with quad-core CPU and 1GB memory for designing and controlling complex projects
  • Supports various interface connections for hardware-software integration and mobile device control
  • DC outputs for power supply connections
  • USB port for easy project upload
  • IR learning function for adding IR device drivers
  • Supports native KNX IP for building management systems
  • TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
  • Supports centralized control and management by ATEN Unizon™
  • Supports project file backup
  • Web GUI for easy system configuration
  • Supports SSH communication for convenient data monitoring
  • LED indication of connection and hardware status
  • 2 free licenses for mobile control*

    Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, please see Specifications.



  • 1x VK2100A Control Box Gen. 2
  • 1x power cord
  • 1x foot pad set (4 pcs)
  • 1x rack mount kit
  • 1x terminal block kit
  • 1x user instructions





Memory
SDRAM 1GB
Flash 8GB
Interfaces
Serial • 2 x Programmable Bi-directional RS-232/422/485 Port
(2 x 5-Pole Terminal Block Connector, configurable via pin assignments);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd;
 – Flow Control: None (default) or RTS/CTS
• 4 x Bi-directional RS-232 Port
(4 x 3-Pole Terminal Block Connector);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd
IR/Serial • 4 x Programmable IR / Uni-directional RS-232 Port
(2 x 4-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd
Relay • 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A
I/O • 4 x Programmable Digital Input / Output Channel
(1 x 5-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
 – VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
 – Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
Ethernet •1 x RJ-45 Female, 10/100/1000Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
VDC • 4 x 12 VDC Output Port (2 x 4-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 2A Max (shared by 4 ports)
USB 1 x USB Type A
Switches
Power 1 x On/Off Switch
IR Learning 1 x IR Receiver LED
Reset Button 1 x Semi-recessed Pushbutton
Power Consumption AC110V:5.2W:137BTU
AC220V:6.5W:143BTU
Power
Maximum Input Power Rating Internal Power: 100-240 VAC, 50-60 Hz
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.59 kg ( 5.7 lb )
Dimensions (L x W x H) 43.24 x 16.32 x 4.40 cm
(17.02 x 6.43 x 1.73 in.)
License
Basic (free) 2 free licenses
Max. No. Allowed 16 licenses
Note The ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
