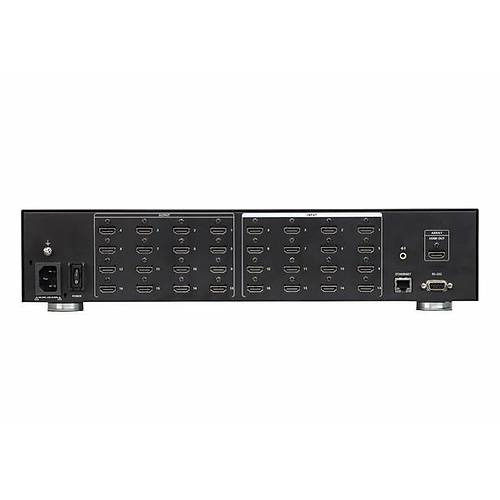

Aten VM51616H 16 Port Giriş 16 Port Çıkış HDMI Matrix Switch Scaler
Geçici olarak temin edilememektedir. Temin edildiğinde
Bu ürünün yerine tercih edebileceğiniz ürünler
Aten VM51616H 16 Port Giriş 16 Port Çıkış HDMI Matrix Switch Scaler

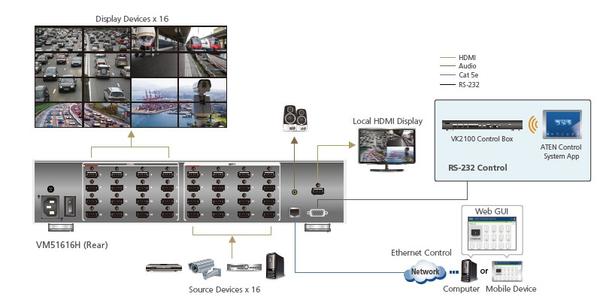

- Connects any of 16 HDMI sources to any of to 16 HDMI displays
- Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
- Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
- Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
- EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep color); HDCP 1.4 compatible
- Consumer Electronics Control (CEC) support
- Local HDMI output –allows multiple preview of 16 video sources
- Audio-enabled; HDMI audio can be extracted to stereo audio
- Supports Dolby True HD and DTS HD Master audio
- ESD protection for HDMI
- Rack-mountable (2U design)
*Note:
1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
- 1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
- 1x Power Cord
- 1x Rack Mounting Kit
- 1x User Instructions
| Video Input | |
| Interfaces | 16 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | up to 5m |
| Video Output | |
| Interfaces | 16 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | up to 15 m |
| Video | |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 1080p |
| Audio | |
| Output | 1 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) |
| Switches | |
| Power | 1 x Rocker Switch |
| Connectors | |
| Power | 1 x 3-Prong AC Socket |
| Power | |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
| Power Consumption | AC110V:124.5W:584BTU AC220V:121.8W:571BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 7.86 kg ( 17.31 lb ) |
| Dimensions (L x W x H) | 43.24 x 38.18 x 8.80 cm (17.02 x 15.03 x 3.46 in.) |
| Rack Height (U Spaces) | 2U |
| Teknik Özellikler | |
|---|---|
| Giriş Portu | Hdmı |
| Çıkış Portu | Hdmı |
| Giriş Port Sayısı | 16 Port |
| Çıkış Port Sayısı | 16 Port |
| Adatör | Var |
| Rengi | Siyah |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | ATEN-VM51616H |
| Marka | ATEN |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. Bilgi İçin Arayın |
| Garanti (Yıl) | 2 |
