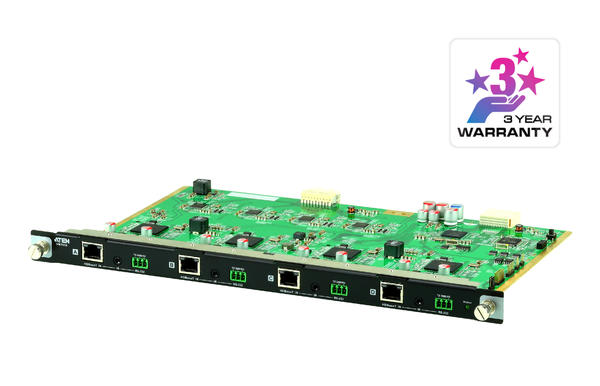

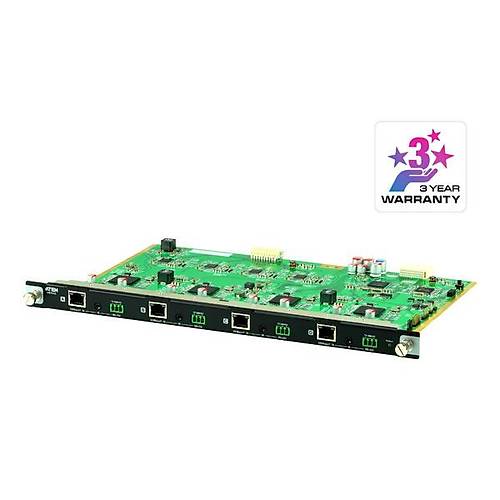

Aten VM7514 4 Port HDBaseT Input Board
Aten VM7514 4 Port HDBaseT Input Board
- 4-port HDBaseT Input Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
| Video Input | |
| Interfaces | 4 x RJ-45 Female (Silver) |
| Impedance | 100 ? |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDBaseT, HDCP 1.4 compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | 100 m (Cat 6a) |
| Control | |
| RS-232 | 4 x Captive Screw Connectors, 3 pole |
| IR | 4 x Mini Stereo Jack Female (Black) |
| Power Consumption | 24.5W:115BTU |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
- 1x VM7514 4-Port HDBaseT Input Board
- 4x Terminal Block Connectors
- 1x IR Transmitter
- 1x IR Receiver
- 1x User Instructions
| Diğer Özellikler | |
|---|---|
| Stok Kodu | ATEN-VM7514 |
| Marka | ATEN |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
