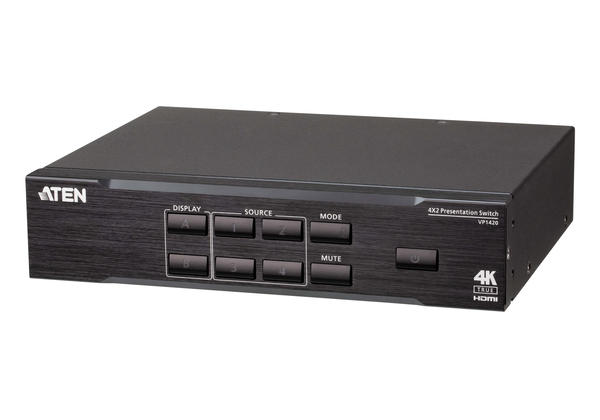

Aten VP1420 15 Mt 4 x 2 Port HDMI True 4K 4096x2160 Kumandalı HDMI Matrix Switch

4 x 2 True 4K Presentation Matrix Switch

The ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix switch, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device that easily mounts under a table or in a rack. With four analog/digital inputs to two HDMI True 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front-panel pushbuttons, IR remote controller, RS-232, and web-based GUI via Ethernet, the VP1420 reduces not only system device count, but also lowers operation complexity. It is suitable for all meeting space and education environments, such as huddle rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition galleries or hotels.


  • Fast Analog/Digital AV Matrix Switching
    • Supports multi-format 4 inputs – 3 HDMI and 1 VGA inputs
    • 2 HDMI outputs
    • Audio embedding – stereo audio can be embedded into HDMI output or separated to stereo line out
    • Audio de-embedding – HDMI audio can be extracted to stereo line out
    • Auto switching – automatically detects and switches to a new source as soon as it is connected


  • High-definition Video with Optimum Output
    • Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI)
    • Supports 4K HDR
    • Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
    • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant


  • Versatile, Streamlined Operation
    • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
    • Supports stand-by mode for power saving and fast waking up
    • Consumer Electronics Control (CEC) support
    • Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad


  • 1x VP1420 4 x 2 True 4K Presentation Matrix Switch
  • 1x IR Receiver
  • 1x IR Remote Control
  • 2x 3-pole Terminal Blocks
  • 2x 5-pole Terminal Blocks
  • 1x Power Adaptor
  • 1x User Instructions


Video Input
Interfaces 3 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female (Blue)
Max. Distance HDMI: 4K@60Hz (4:4:4) at 3m; 4K@30Hz at 10m; 1080p@60Hz at 15m
VGA: 1920x1200@60Hz at 15m
Video Output
Interfaces 2 x HDMI Type A female (Black)
Max. Distance HDMI: 4K@60Hz (4:4:4) at 3m; 4K@30Hz at 10m; 1080p@60Hz at 15m
Max. Resolution HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
VGA: Up to 1920x1200@60Hz
Compliance HDMI 2.0 (3D, Deep Color, 4K); 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Input Stereo Audio (VGA): 1 x mini stereo Jack female (Green)
Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)
Output Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole
RS-232 1 x Captive Screw Connector, 3-pole
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female (Silver)
Contact In 1 x Captive Screw Connector, 5-pole
LED Out 1 x Captive Screw Connector, 5-pole
LED out power: +5 VDC, 0.2 A
Power 1 x Pushbutton (LED: Green / Orange)
Video Input Port Selection 4 x Pushbutton (LED: Green)
Video Output Port Selection 2 x Pushbutton (LED: Orange)
Selection Mute: 1 x Pushbutton
Mode / Unlock: 1 x Pushbutton
EDID Settings EDID Mode: Default / Port 1 / Remix
Power 1 x DC Jack (Black)
Power Consumption DC5V:7.21W:38BTU
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 1.09 kg ( 2.4 lb )
Dimensions (L x W x H) 20.00 x 16.05 x 4.40 cm
(7.87 x 6.32 x 1.73 in.)
Teknik Özellikler
Giriş PortuHdmı
Çıkış PortuHdmı
Giriş Port Sayısı4 Port
Çıkış Port Sayısı2 Port
Diğer Özellikler
Stok KoduATEN-VP1420
Stok DurumuVar
Garanti (Yıl)2
