Aten VS381B 3 Port Giriş 1 Port Çıkış 4K Dişi-Dişi 4K HDMI Görüntü Çoklayıcı
Geçici olarak temin edilememektedir. Temin edildiğinde
Bu ürünün yerine tercih edebileceğiniz ürünler
Aten VS381B 3 Port Giriş 1 Port Çıkış 4K Dişi-Dişi 4K HDMI Görüntü Çoklayıcı

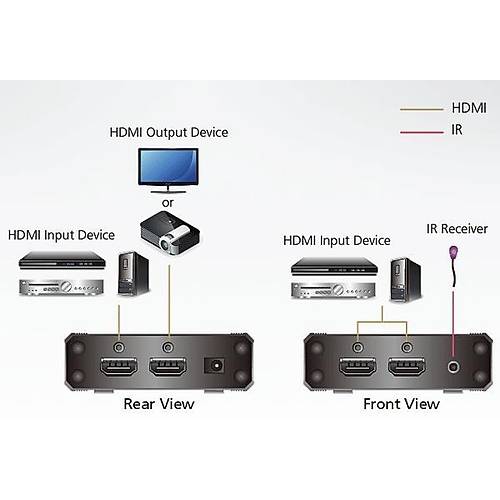

- Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
- Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
- HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG)
- HDCP 2.2 compliant
- Auto switching mode for auto port selection
- Switching between HDMI input sources via front panel pushbuttons and IR remote control
- Supports IR extension
- Supports 7.1 channel audio output
- Clear LED indication of device status
- Plug-and-play – no software installation required
| Note | USB to DC cable as the main power source; In some circumstances power from HDMI maybe sufficient for the device; however, the power source from USB via USB to DC cable is recommended for device operation |
| LEDs | |
| Input | 3 x HDMI-In (Green) |
| Power | 1 x Power LED (Green) |
| Pushbuttons | |
| Select | 1 x push button (input selection) |
| Audio | |
| Input | 3 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) |
| Video Input | |
| Interfaces | 3 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision) HDCP 2.2 |
| Max. Resolution | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Control | |
| IR | 1 x Mini Stereo Jack Female (Black) / Max distance@ 5m |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:1.46W:6BTU |
| Environmental | |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.15 kg ( 0.33 lb ) |
| Dimensions (L x W x H) | 7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.) |
| Teknik Özellikler | |
|---|---|
| Giriş Portu | Hdmı |
| Çıkış Portu | Hdmı |
| Giriş Port Sayısı | 3 Port |
| Çıkış Port Sayısı | 1 Port |
| Adatör | Yok |
| Rengi | Siyah |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | ATEN-VS381B |
| Marka | ATEN |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. Bilgi İçin Arayın |
| Garanti (Yıl) | 2 |
