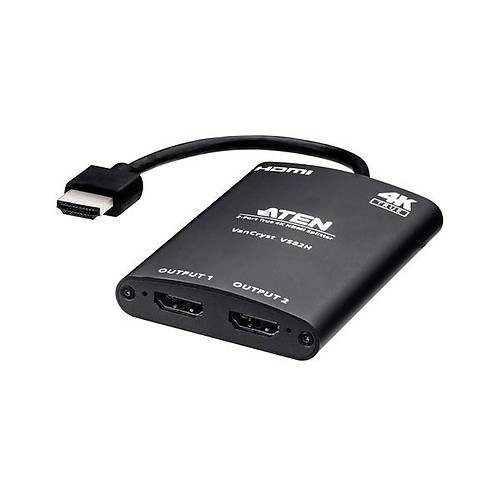

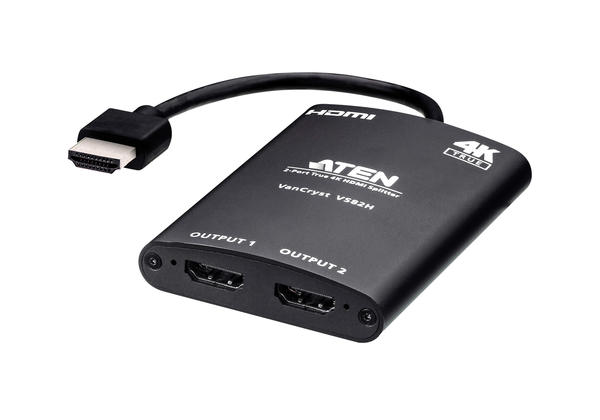

2-Port True 4K HDMI Splitter
- Distributes one True 4K source to two HDMI displays at the same time
- Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
- HDMI; HDCP 2.2 compliant
- True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
- Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
- Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
- Quality and durable aluminum metal enclosure
- 1x VS82H 2-Port True 4K HDMI Splitter
- 1x Micro-USB Cable
- 1x User Instructions
| EDID Settings |
PORT-1 & Default |
| LEDs |
| Status |
HDMI Output x 2 (Blue)
Power Input x 1 (Blue) |
| Video Input |
| Interfaces |
1 x HDMI Type A Female (Black) |
| Impedance |
100 ? |
| Max. Distance |
30cm / 4K@60Hz (4:4:4) |
| Video Output |
| Interfaces |
2 x HDMI Type A Female (Black) |
| Impedance |
100 ? |
| Max. Distance |
3m / 4K@60Hz (4:4:4) |
| Video |
| Max. Data Rate |
18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock |
600 MHz |
| Compliance |
HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible |
| Max. Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Power Consumption |
3WATT(MAX)BTU |
| Connectors |
| USB Port |
Micro-USB to USB cable (50cm) X 1
Firmware upgrade & power source |
| Environmental |
| Operating Temperature |
0-40 °C |
| Storage Temperature |
-20 - 60 °C |
| Humidity |
0 - 80% RH, Non-Condensing |
| Physical Properties |
| Housing |
Metal (aluminum) |
| Weight |
0.09 kg ( 0.2 lb ) |
| Dimensions (L x W x H) |
8.80 x 6.00 x 15.00 cm
(3.46 x 2.36 x 5.91 in.) |
| Teknik Özellikler |
|---|
| Giriş Portu | Display Port |
| Çıkış Portu | Display Port |
| Giriş Port Sayısı | 1 Port |
| Çıkış Port Sayısı | 2 Port |
| Adatör | Yok |
| Rengi | Siyah |
| Diğer Özellikler |
|---|
| Stok Kodu | ATEN-VS82H |
| Marka | ATEN |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
