^{Axle AX-MBAIH81T Sc-1150 H81 DDR3 1600Mhz SATA VGA HDMI M.2 mATX INTEL Anakart}

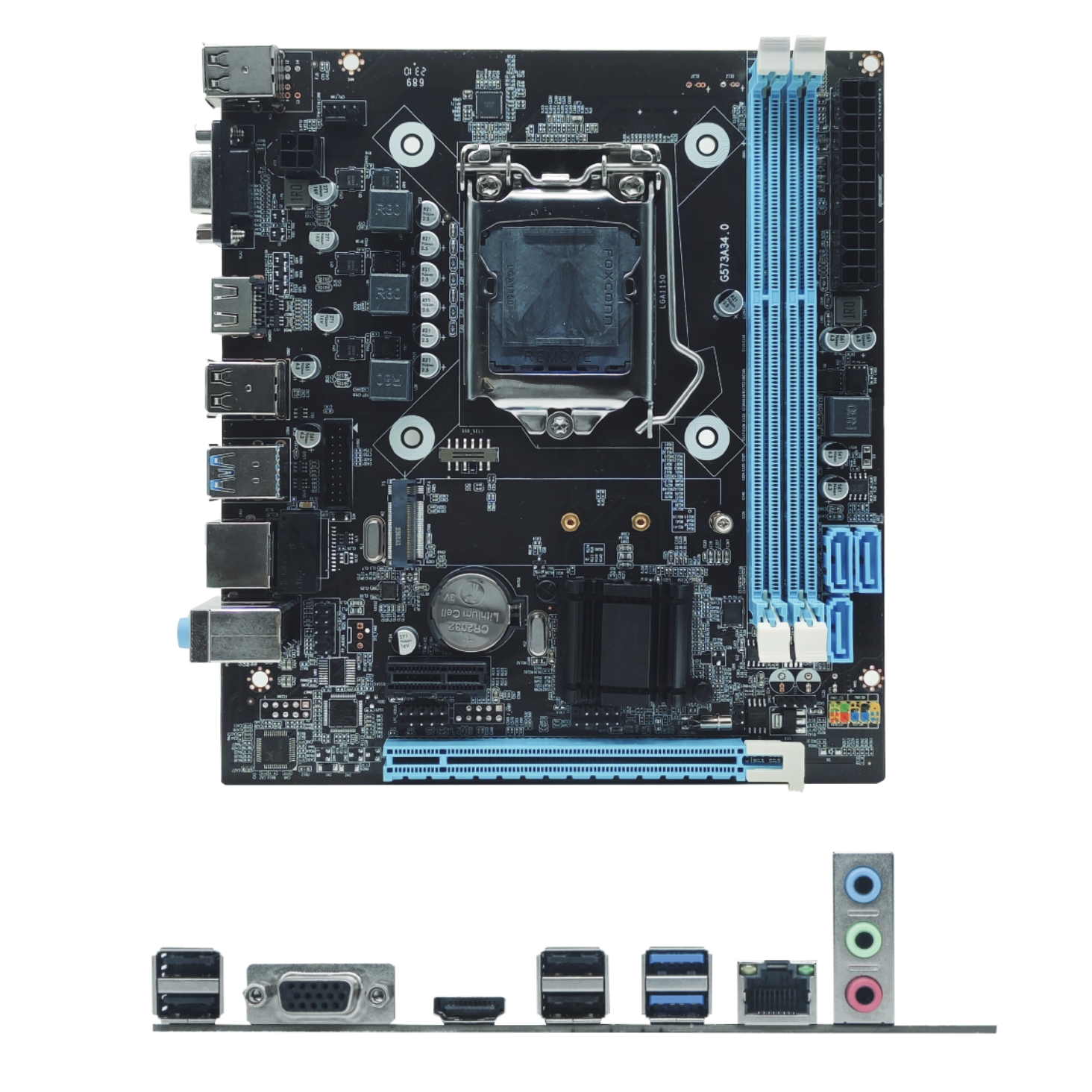

AXLE AX-MBAIH81T H81 1150p Anakart

• CPU: Supports LGA1150 Socket I3/I5/I7 series
• Chipset: Intel H81 Express Chipset
• Memory: 2 x 240-pin DDR3 SDRAM slots
• Memory up to 16GB Supports dual channal DDR3 1066/1333/1600 MHz
• I/O interface
  • 4 x USB 2.0
  • 2 x USB 3.0
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x RJ45 port
  • 1 x 3-in-1 Audio port(line ln/Line Out/MIC IN)
• Onboard interface
  • 1 x 24-pin ATX power connector
  • 1 x 4-pin ATX 12V power connector
  • 2 x USB connector, can support 4 x USB 2.0
  • 1 x F_ AUDIO connector
  • 1 x F_ PANEL connector
  • 1 x SPEAKER connector
  • 1 x FAN connector
  • 1x serial SATA/6GB/S connector port
  • 2 x serial SATA/3GB/S connector port
  • 1 x LPC_ DEBUG connector
• Expansion slot
  • 1x PCI Express x16 slot
  • 1x PCI Express x1 slot
  • 1x M.2 slot support Nvme and NGFF
• Dimension:  Micro-ATX architecture(17 x 19cm)
