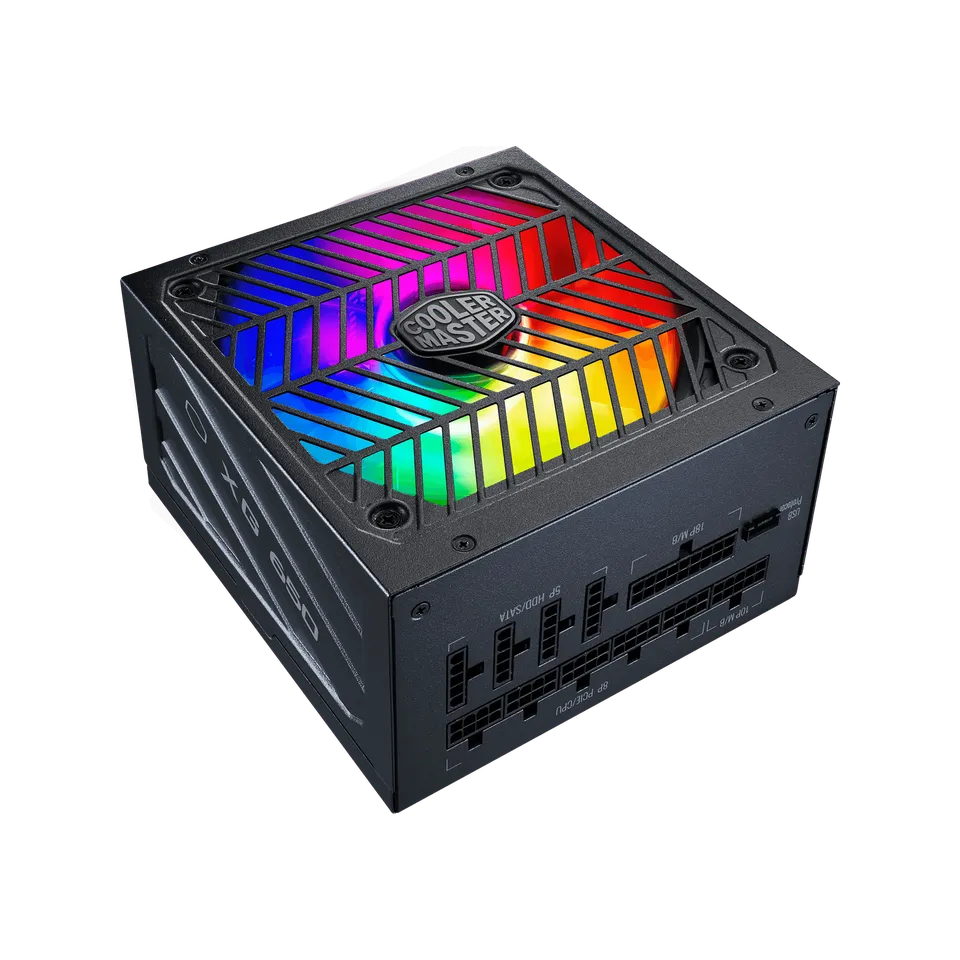

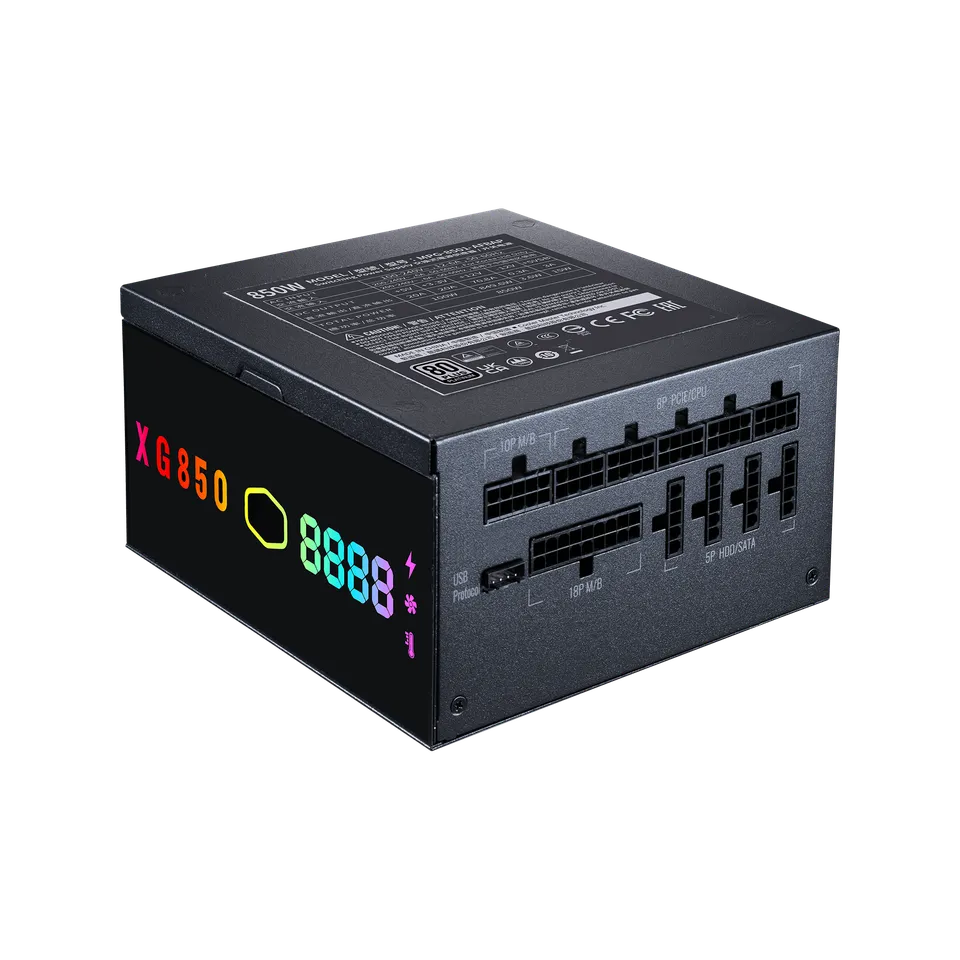

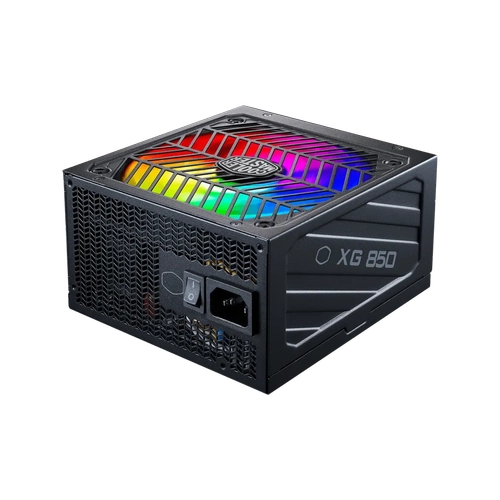

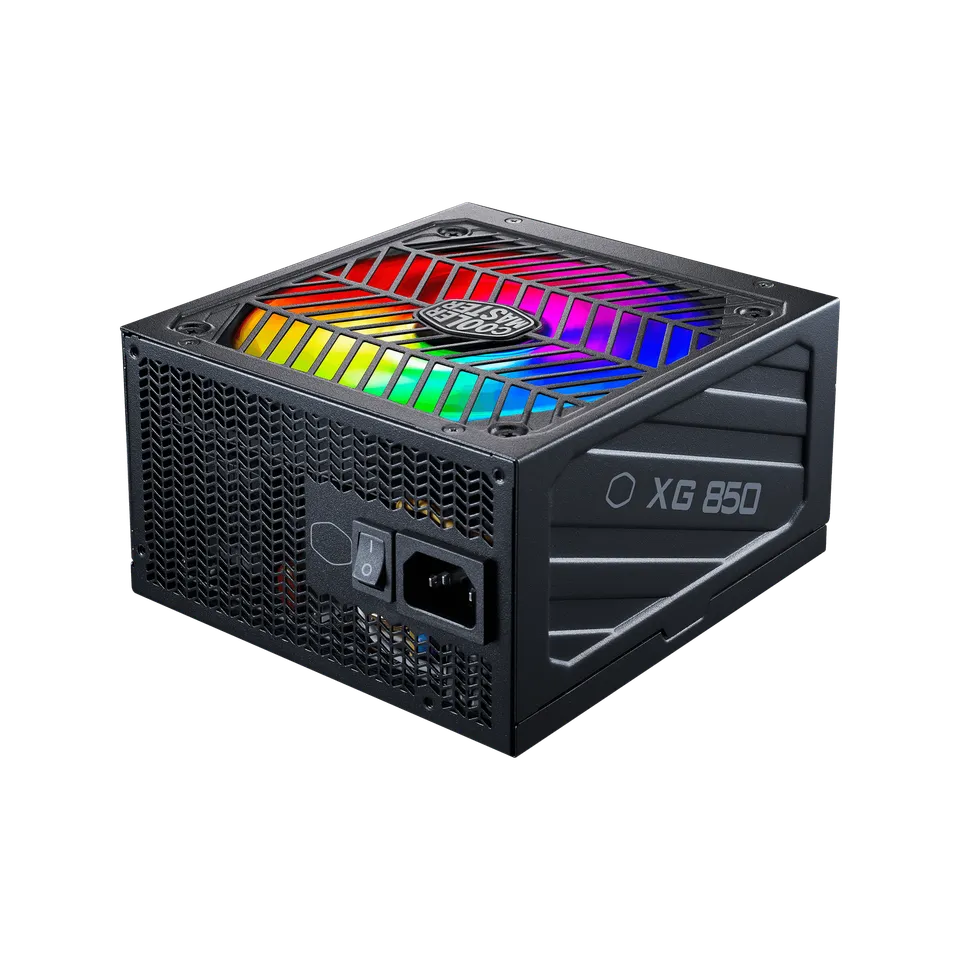

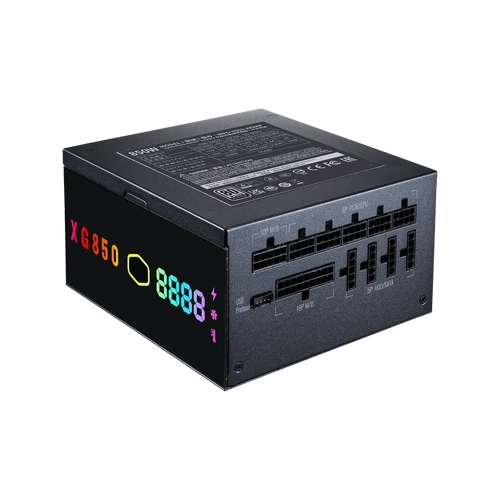

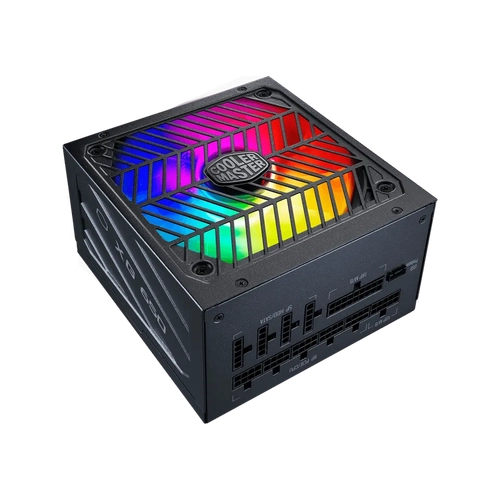

Cooler Master MPG-8501-AFBAP-XEU 850W Plus Platinum XG RGB 13.5cm Fanlı Tam Modüler ATX Power Supply

CategoryAbove 750W
ModularFully Modular
PFCActive PFC
Input Frequency50-60Hz
ErP 2014 Lot 3Yes
ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
80 PLUS Rating80 PLUS Platinum
EPS 8 Pin Connector1
Power Good Signal100 - 150 ms
USB Protocol 10P1
MTBF>100,000 Hours
80 Plus EfficiencyPlatinum
Operating Temperature0-50°C
SATA Connectors12
PCI-e 6+2 Pin Connectors6
Fan Size135mm
Input Voltage100-240V
Peripheral 4 Pin Connectors4
ProtectionsOVP
ProtectionsOPP
ProtectionsSCP
ProtectionsUVP
ATX VersionIntel ATX 12V Ver. 2.53
ProtectionsOTP
ProtectionsOCP
Dimensions (L x W x H)160 x 150 x 86 mm
ProtectionsSurge and Inrush Protection
Fan Speed1800 RPM
RegulatoryCCC
RegulatoryCE
SeriesXG Series
Input Current12-6A
RegulatoryEAC
RegulatorycTUVus
RegulatoryFCC
Efficiency≥ 92% @ Typical Load
RegulatoryBSMI
Hold Up Time≥ 16ms
RegulatoryTUV
Noise Level @ 100%≤ 25 dBA
RegulatoryUKCA
ModelMPG-8501-AFBAP-X**
