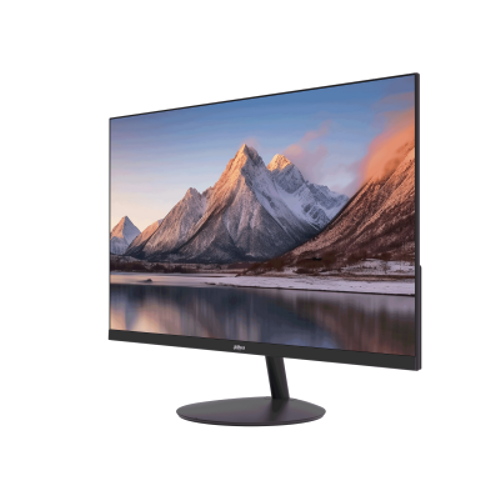

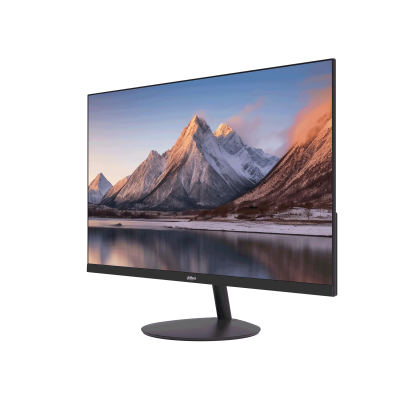

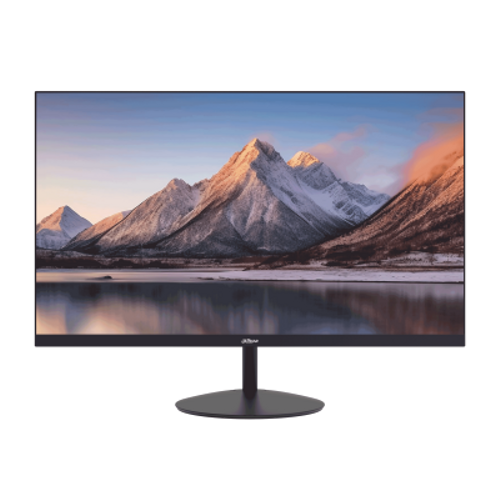

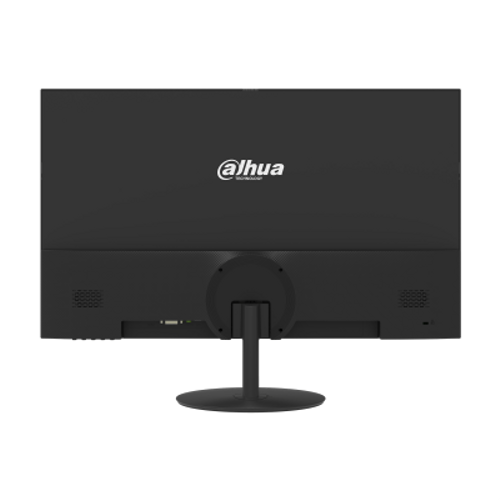

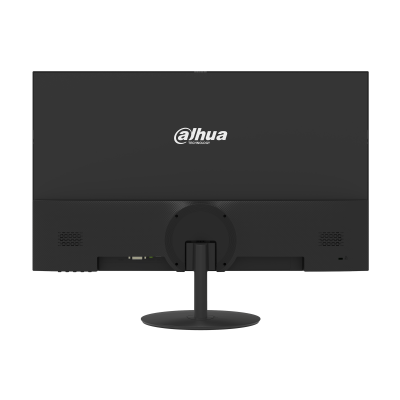

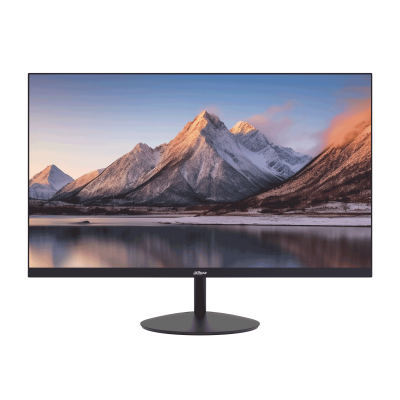

Dahua LM22-A200Y 21.5 inch 1920x1080 5ms 100Hz VGA HDMI Led Monitör

Display

Model

DHI-LM22-A200Y

LCD Technology

VA

Backlight

ELED

Screen Size

21.45 inch

Aspect Ratio

16:9

Viewing Size

478.656 mm (H) × 260.28 (V) mm

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2493 mm × 0.241 mm

Pixels Per Inch

102.69

Resolution

1920 (H) × 1080 (V)

Refresh Rate

100 Hz

Display Color

8 bit

Color Gamut

72% NTCS (typ.)

Brightness

250 cd/m²

Contrast Ratio

3000:1

Response Time

10 ms

Lifespan

30,000 hrs

Device Ports

Input Port

1 × VGA (1080p@60 Hz), 1 × HDMI 1.4 (1080p@100 Hz)

Power & Environmental Conditions

Power Supply

12 VDC, 2 A

Power Type

External power adapter

Power Consumption

14 W (basic), 16 W (typ.), 16 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5°±2°/15°±2°

Product Dimensions

492.7 mm × 284.0 mm × 41.2 mm (19.396" × 11.18" × 1.623") (W × H × D) without wall-mount bracket

Package Size

598 mm × 366 mm × 99 mm (23.543" × 14.409" × 3.898") (W × H × D)

Unilateral Splicing

U/L/R/D: 3.3 mm/3.3 mm/3.3 mm/15.2 mm

Net Weight

2.05 kg (4.52 lb)

Gross Weight

2.86 kg (6.30 lb)

Casing Color

Black

Control Mode

Five-button

Wall Mount VESA

75 mm × 75 mm (2.95" × 2.95")

Accessory

Power adapter, base, HDMI cable, user's manual (QR code),legal and regulatory information, etc.

Optional Accessory

Wall mount
