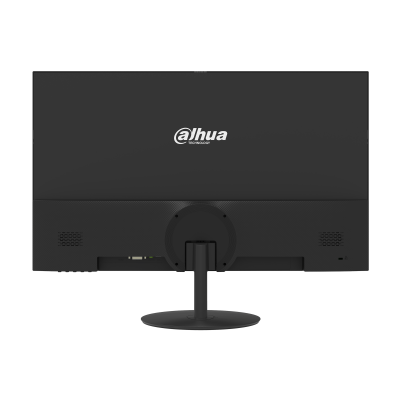

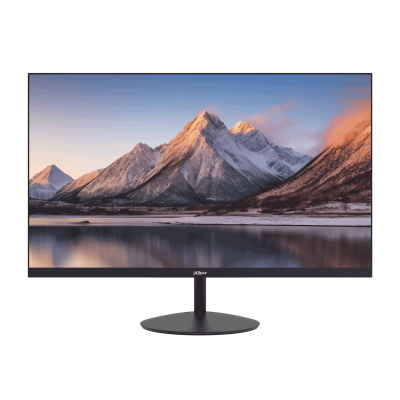

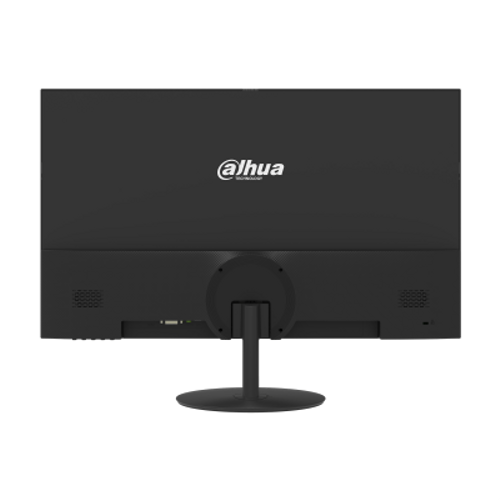

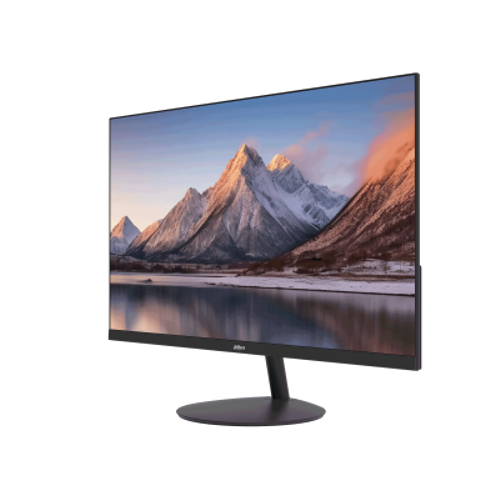

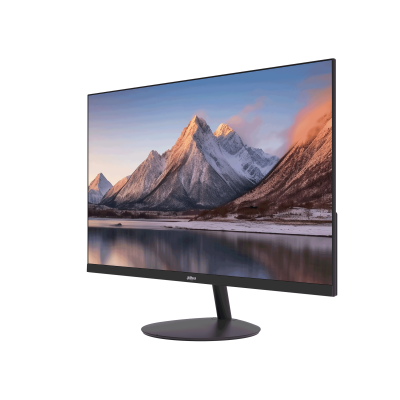

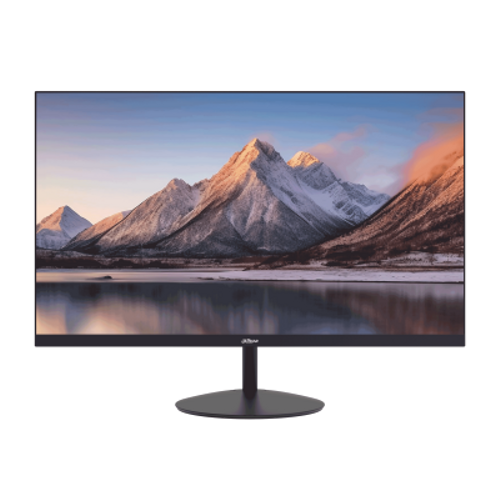

Dahua LM24-A200Y 23.8 inch 1920x1080 10ms 100Hz VGA HDMI Led Monitör

Display

Model

DHI-LM24-A200Y

LCD Technology

VA

Backlight

ELED

Screen Size

23.8 inch

Aspect Ratio

16:9

Viewing Size

527.04 (H) × 296.46 (V) mm

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2745 mm × 0.2745 mm

Pixels Per Inch

92.55

Resolution

1920 (H) × 1080 (V)

Refresh Rate

100 Hz

Display Color

8 bit

Color Gamut

72%NTCS (typ.)

Brightness

250 cd/m²

Contrast Ratio

3000:1

Response Time

10 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%

Device Ports

Input Port

1 × VGA (1080p@60 Hz), 1 × HDMI 1.4 (1080p@100 Hz)

Power & Environmental Conditions

Power Supply

12 VDC, 2.5 A

Power Type

External power adapter

Power Consumption

13 W (basic), 16 W (typ.), 16 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5°±2°/15°±2°

Product Dimensions

539.2 mm × 320.4 mm × 41.3 mm (21.229" × 12.616" × 1.624") (W × H × D) without wall-mount bracket

Package Size

612 mm × 405 mm × 101 mm (24.094" × 15.945" × 3.976") (W × H × D)

Unilateral Splicing

U/L/R/D: 3.1 mm/3.1 mm/3.1 mm/15.8 mm

Net Weight

2.79 kg (6.15 lb)

Gross Weight

3.75 kg (8.26 lb)

Casing Color

Black

Control Mode

Five-button

Wall Mount VESA

75 mm × 75 mm (2.95" × 2.95")

Accessory

Power adapter, base, HDMI cable, user's manual (QR code),legal and regulatory information, etc.

Optional Accessory

Wall mount
