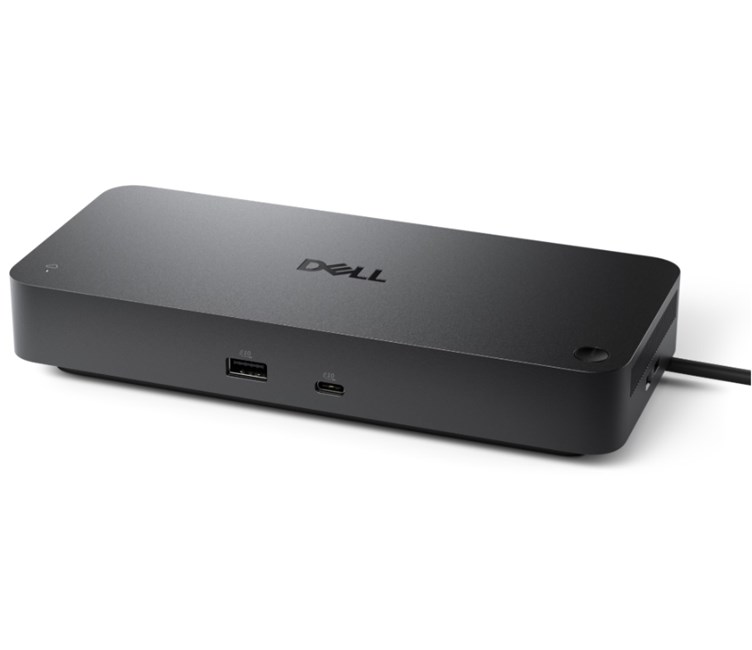

Dell SD25TB4 Pro Thunderbolt to HDMI DP RJ45 PD USB Smart Dosk Station

Video Resolution
DP1.4 / DP2.1 with Display Stream Compression
Up to:

• 4 x 4K (3840x2160) @ 60Hz
• 3 x 4K (3840x2160) @ 60Hz
• 2 x 6K (6144 x 3456) @ 60Hz
• 1 x 8K (7680 x 4320) @ 60Hz

DP1.4 without Display Stream Compression
Up to:

• 4 x QHD (2560x1440) @ 60Hz
• 3 x WQHD (3440 x 1440) @ 60Hz
• 2 x 4K (3840x2160) @ 60Hz
• 1 x 5K WUHD (5120 x 2160) @ 60Hz

---

Network & Communication
Ethernet Technology
RJ45 Ethernet port, 2.5GbE

---

Interfaces/Ports
Interfaces
Video interfaces

• 2 x DP1.4
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
• 2 x Thunderbolt 4

USB Ports (Data Only)

• 4 x USB-A 3.2 Gen 2 (10 Gbps)
• 1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 4 (15W each)
• All deliver power with or without PC

USB Power Delivery

• 130W (Dell systems)
• 96W (non-Dell systems)

---

Software
Operating System Supported

• Windows 10
• Windows 11
• Ubuntu
• Red Hat Enterprise Linux
• ChromeOS
• macOS

---

Power Description
Maximum Power Supply Wattage
180W

---

Physical Characteristics
Height
8.07"
Width
3.54"
Depth
1.39"
Weight (Approximate)
1.28lb

---

Miscellaneous
Package Contents

• Docking Station
• Power Adapter and Power Cord
• Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot
Yes

---

Warranty
Limited Warranty
3 Year
Additional Warranty Information

• 3-Year Limited Hardware Warranty with Advanced Exchange
• Additional 4- & 5-year warranty optional
