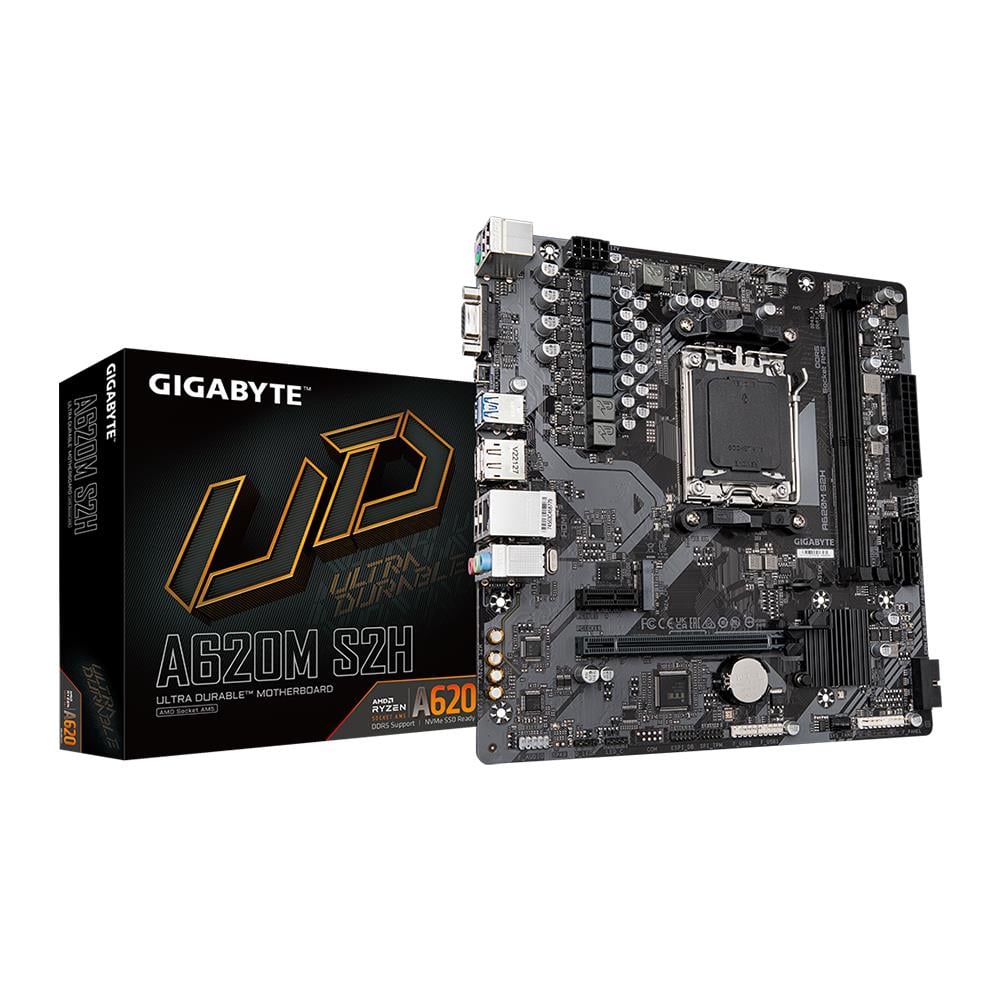

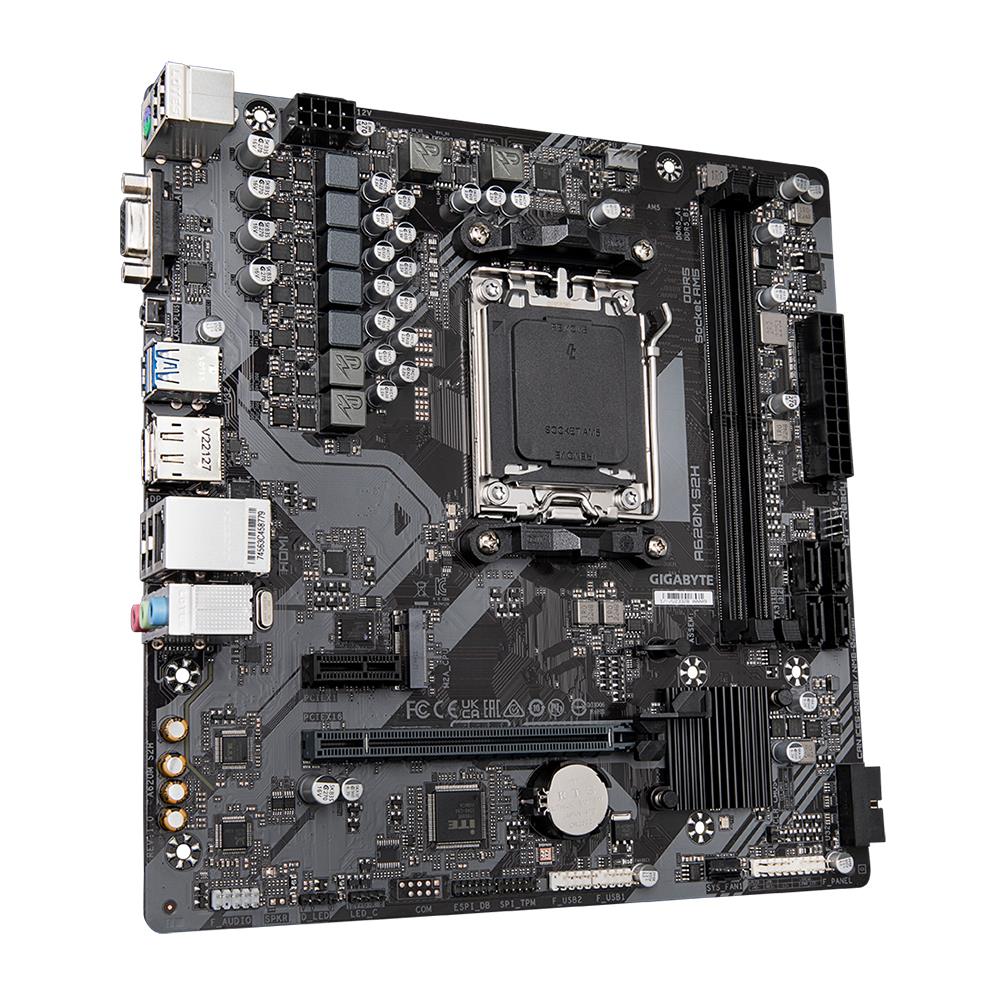

Gigabyte A620M S2H Sc-AM5 A620 DDR5 6400Mhz M.2 mATX AMD Anakart

Gigabyte A620M S2H Sc-AM5 A620 DDR5 6400Mhz M.2 mATX AMD Anakart

• CPU
  AMD Socket AM5, support for:
  AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
  (Please refer "CPU Support List" for more information.)
• Chipset
  AMD A620
• Memory
  Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor:
  - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

  * Support for DisplayPort 1.4 version.


  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)
  Support for up to 3 displays at the same time
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots
  1 x PCI Express x16 slot, integrated in the CPU:
  1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  Chipset:
  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
  1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
  1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  CPU:
  - 2 x USB 3.2 Gen 1 ports on the back panel
  - 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x Clear CMOS jumper

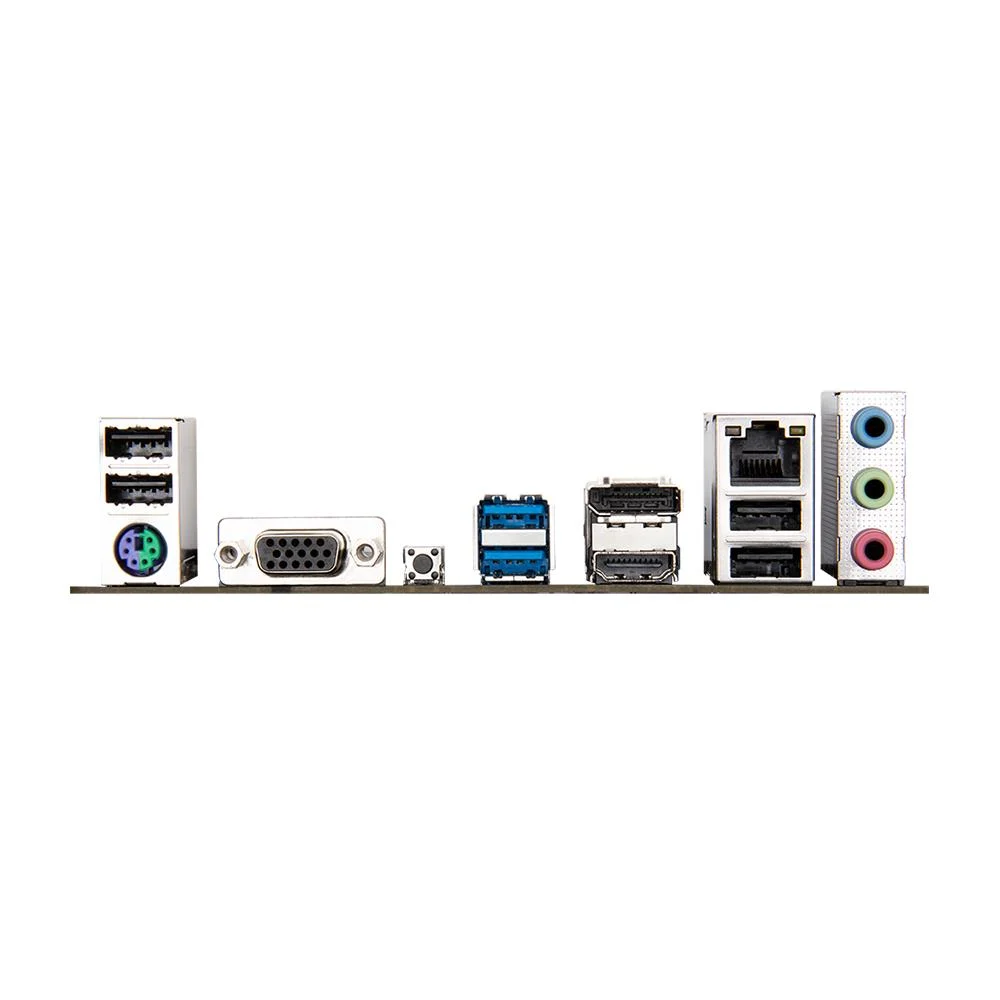

• Back Panel Connectors
  4 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x Q-Flash Plus button
  2 x USB 3.2 Gen 1 ports
  1 x DisplayPort
  1 x HDMI port
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash
  Support for Q-Flash Plus
• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
  Micro ATX Form Factor; 23.0cm x 22.5cm
