Gigabyte B850M AORUS ELITE WIFI6E Sc-AM5 DDR5 8200Mhz 2xM2 2.5Gbit Wi-Fi 6E mATX AMD Anakart
ParaPuan : 5.614.270
| Fiyat | : | 13.474,25 TL |
| Havale / EFT | : | 13.002,65 TL |
2.560,11 TL'den başlayan taksit seçenekleri için tıklayın.

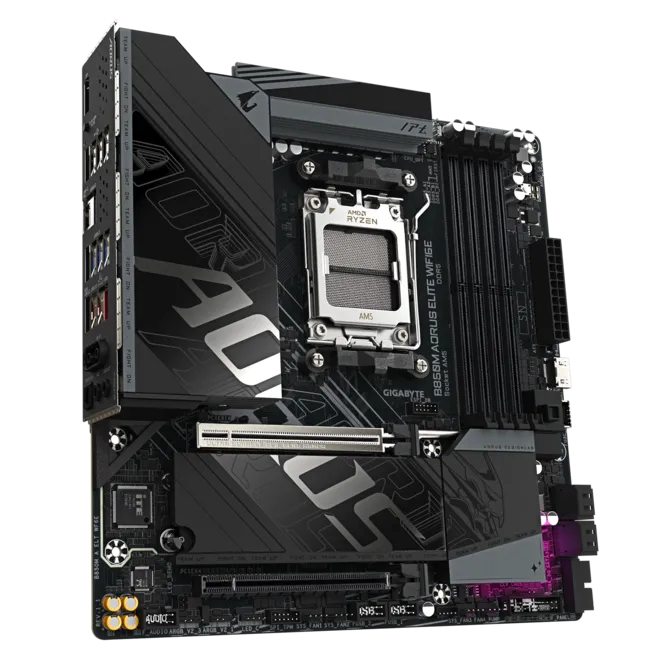

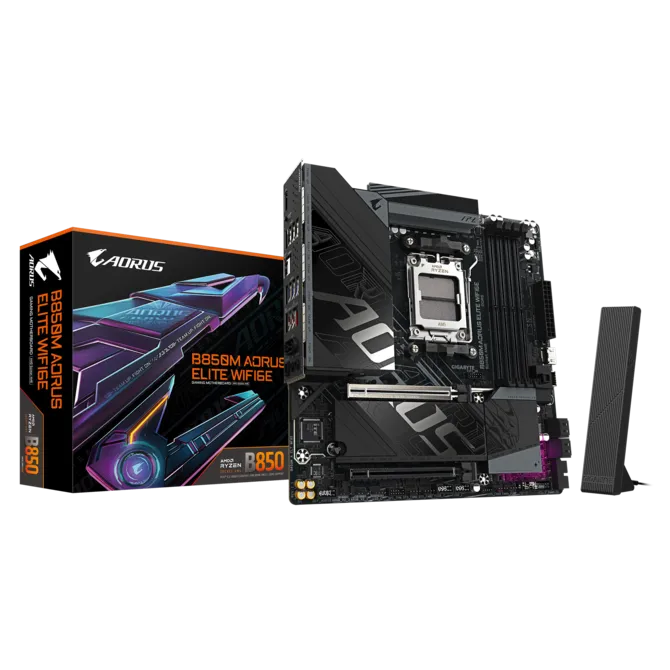

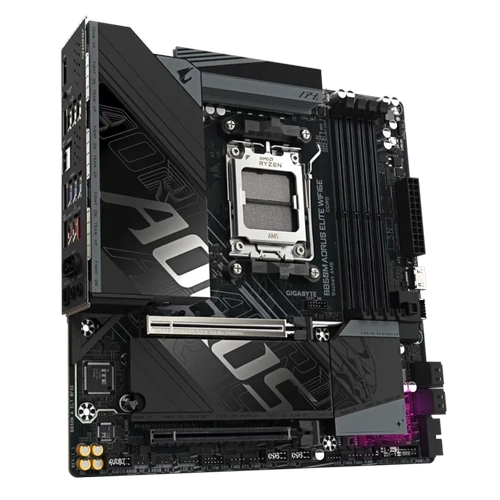

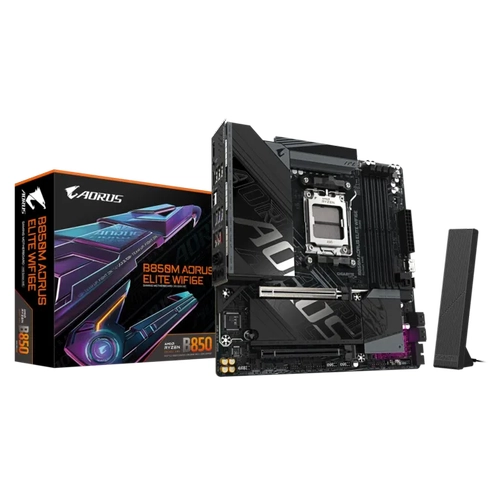

Gigabyte B850M AORUS ELITE WIFI6E Sc-AM5 DDR5 8200Mhz 2xM2 2.5Gbit Wi-Fi 6E mATX AMD Anakart
- CPU
- AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
- Chipset
- AMD B850
- Memory
- Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
- Onboard Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® Audio CODEC (Only for rev. 1.0)
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Realtek® ALC1220 CODEC (Only for rev. 1.1)* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication module
- Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
- Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
\\u001b AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
\\u001b AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
\\u001b AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
\\u001b AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
\\u001b AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
\\u001b AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
\\u001b AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
\\u001b AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
\\u001b AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- USB
- CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
(Note) Actual support may vary by CPU.

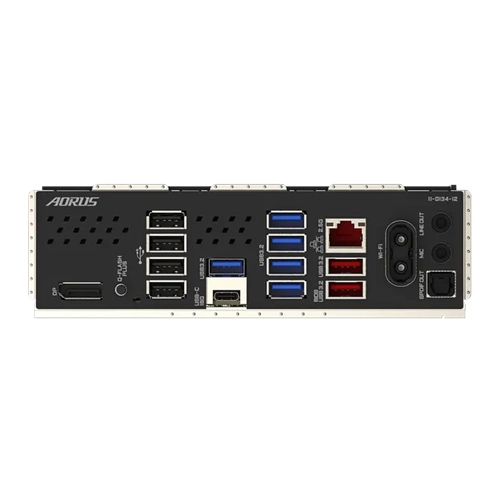

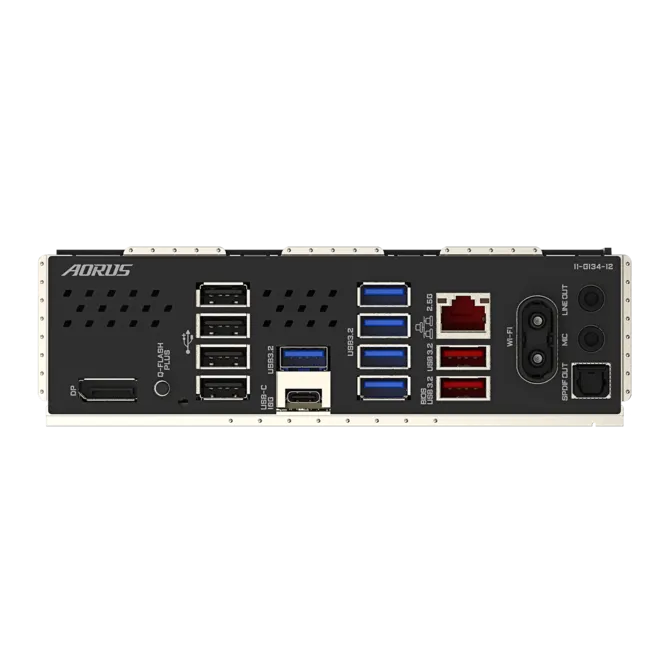

- Back Panel Connectors
- 1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
- BIOS
- 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
- Bundled Software
- Norton® Internet Security (OEM version)
LAN bandwidth management software
- Operating System
- Support for Windows 11 64-bit
Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
| Teknik Özellikler | |
|---|---|
| Soket Yapısı | AM5 |
| Bellek Tipi | DDR5 |
| Chipset | B850 |
| Ekran Kartı | Onboard |
| D-Sub Çıkışı | Yok |
| Dvı Çıkışı | Yok |
| Hdmı Çıkışı | Var |
| Display Port Çıkışı | Var |
| M.2 Slotu | Var |
| Kablosuz Bağlantı | Var |
| Ryzen 1. Nesil Desteği | Yok |
| Yapısı | mATX |
| Ryzen 2. Nesil Desteği | Yok |
| Ryzen 3. Nesil Desteği | Yok |
| Ryzen 4. Nesil Desteği | Yok |
| Ryzen 5. Nesil Desteği | Yok |
| Ryzen 6. Nesil Desteği | Yok |
| Ryzen 7. Nesil Desteği | Var |
| Ryzen 8. Nesil Desteği | Var |
| Ryzen 9. Nesil Desteği | Var |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | B850M-AORUS-ELITE-WIFI6E |
| Marka | GIGABYTE |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
