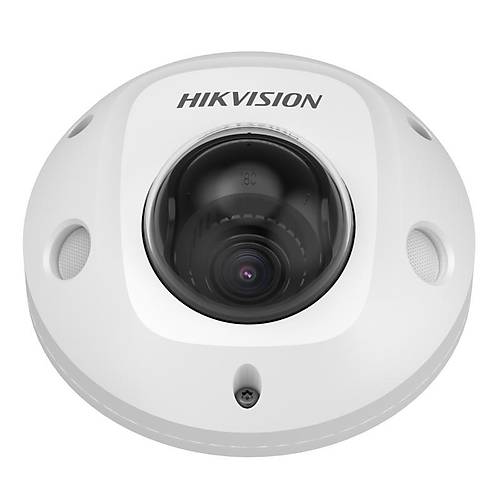

Hikvision DS-2XM6726G1-ID 2 MP 2.8mm Lensli Mobil 30Mt PoE Ip Dome Kamera
Geçici olarak temin edilememektedir. Temin edildiğinde
Hikvision DS-2XM6726G1-ID 2 MP 2.8mm Lensli Mobil 30Mt PoE Ip Dome Kamera
- Kamera
- Image Sensor1/2.8" CMOS Progressive Scan
- Min. Illumination0.002Lux @ (F1.6, AGC ON), 0lux with IR
- Resolution2MP
- Shutter Speed1/3 s to 1/100,000 s
- P/N
PAL: 25fps
NTSC: 30fps
- Day & NightIR Cut Filter
- Angle AdjustmentPan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
- White Balance
Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;
Support manual/automatic white balance adjustment.
- Lens
- Focal Length2mm/2.8mm/4mm/6mm
- Focal Length & FOV
2 mm, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 152°
2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4 mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Lens MountM12
- FocusManual focus
- Max. Aperture
2mm: F2.25
2.8mm/4mm/6mm: F1.6
- Illuminator
- Supplement Light TypeInfrared fill light lamp
- Smart Supplement LightSupport
- IR Wavelength850 nm
- IR RangeUp to 30 m
- Video
- Max. Resolution1920 × 1080
- Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Video Compression
Main stream: H.264, H.265, H.264+, H.265+
Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+
Third stream: H.264, H.265, H.264+, H.265+
- Video Bit Rate
Main Stream: 256 Kbps to 12288Kbps
Sub-Stream: 256 Kbps to 4096Kbps
Third Stream: 256 Kbps to 12288Kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlConstant Bit Rate, Variable Bit Rate
- Stream TypeMain stream, sub stream, third stream
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
- Audio
- Audio CompressionG711U, G711A, G726, AAC, G722, PCM, AAC
- Audio Bit Rate
Raw data PCM:256kbps
G711U, G711A, G726_A, AAC,G722.1:≤64kbps
- Audio Sampling Rate16 kHz
- Environment Noise FilteringSupport
- Network
- ProtocolsTCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS
- Simultaneous Live ViewUp to 8 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User ManagementUp to 16 users, 3 levels: Administrator, Operator and User
- Web BrowserIE8+, Chrome45+, Edge41+, Firefox45+
- Image
- Wide Dynamic Range (WDR)120 dB
- Image SettingsSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
- Day/Night SwitchDay/Night/Auto/Schedule
- SNR> 50 dB
- Image EnhancementBLC, HLC, 2DNR ,3DNR
- Privacy MaskEnables configuration, and supports drawing of up to 4 areas
- Picture OverlaySupport image overlay, uploading images, enabling, coordinates, etc.
- Target CroppingSupport (only the third stream)
- Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment
- Interface
- Video OutputNot supported
- Ethernet Interface
-ID: 1 RJ45 10M/100M self-adaptive Ethernet port
-IM/ND, IDM: 1 four-core M12 aviation plug
- Audio1 built-in mic, mono sound
- Reset KeySupport
- Interface TypeInterpolate
- TF Card StorageBuilt-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)
- Deep Learning Function
- People DensitySupport the detection of passenger congestion in carriages.
- DetectionSupport the detection of articles and personnel left behind in the carriage.
- Event
- Linkage MethodUpload to FTP, notify monitoring center, send email, trigger recording
- Basic EventMotion detection, video tampering alarm
- Smart Event
Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection,
defocus detection,
Loitering Detection,
People Gathering Detection,
Fast Moving Detection,
Parking Detection,
- General
- Product Dimension110 mm × 57.4 mm (4.3" × 2.26")
- Package Dimension252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
- Power
PoE: 0.30 A to 0.20 A, max: 7.5 W
DC: 0.83 A to 0.21 A, max:7.5 W
- Product WeightApprox. 452 g (1 lb.)
- With Package Weight252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
- ProtectionIP67, IK10
- Camera MaterialMetal
- Startup and Operating Conditions-30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing)
- LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
- General FunctionAnti-flicker, heartbeat, mirror
- Software ResetSupport
- Power Supply
-ID: 9-36V& PoE (802.3af, 36 V to 57 V)
-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)
-IM/ND: PoE (802.3af, 36 V to 57 V)
- Power Interface
-ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply
-IM/ND: four-core M12 aviation plug, PoE power supply
- Cable Length50 cm
- Approval
- ClassClass B
- EMC
FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B?
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013?
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020
KC: KN32:2015,KN35:2015
- Safety
UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014
CB: IEC 60950-1CE:
CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
LOA: SANS IEC60950-1
BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
- Environment
CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
WEEE: 2012/19/EUReach SVHC: Regulation (EC) No 1907/2006
Reach SVHC: Regulation (EC) No 1907/2006
- Electrical Safety ProtectionIK10(IEC 62262:2002)
- Automotive and Railway
EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010);
EN45545 (EN 45545-2:2013+A1:2015);
E-MARK (ECE R10)
| Diğer Özellikler | |
|---|---|
| Stok Kodu | DS-2XM6726G1-ID-2.8MM |
| Marka | HIKVISION |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. Bilgi İçin Arayın |
| Garanti (Yıl) | 2 |
