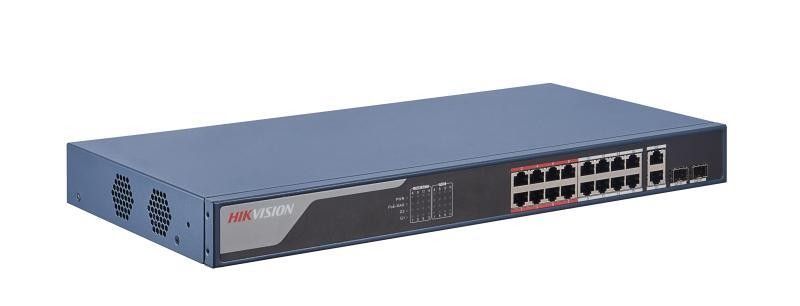

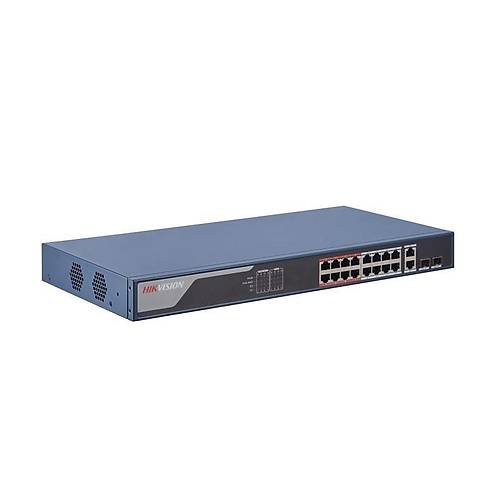

Hikvision DS-3E1318P-EI 16 Port 10/100Mbps 2 Port Uplink 2 Port SFP 230W Yönetilebilir PoE Switch

^{Hikvision DS-3E1318P-EI 16 Port 10/100Mbps 2 Port Uplink 2 Port SFP 230W Yönetilebilir PoE Switch}

• General
• ShellMetal material
• Net Weight2.59 kg (5.71 lb)
• Gross Weight3.68 kg (8.11 lb)
• Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
• Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 A
• Installation ModeRack (equipped with mounting ears)
• Max. Power Consumption250 W
• Power Consumption In Idle10 W
• Surge Protection6 KV

• Network Parameters
• Ports16 × 10/100 Mbps PoE port,2 × Gigabit combo
• MAC Address Table16 K
• Switching Capacity9.2 Gbps
• Packet Forwarding Rate6.84 Mpps
• Internal Cache4 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget230 W

• Software Function
• Long Range

  Ports 1 to 16: up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
• Link Aggregation

  Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

  Support static link aggregation.

  Support 1 aggregation groups.

• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Display the port rate.

  2. Display the port bandwidth utilization rate.

  3. Display the PoE power usage.

  4. Display topology information.

  5. Display the alarm status.

  6. Restart ports and devices.

  7. Enable port long-rage mode.

  8. Remotely upgrade the device.

• System MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
