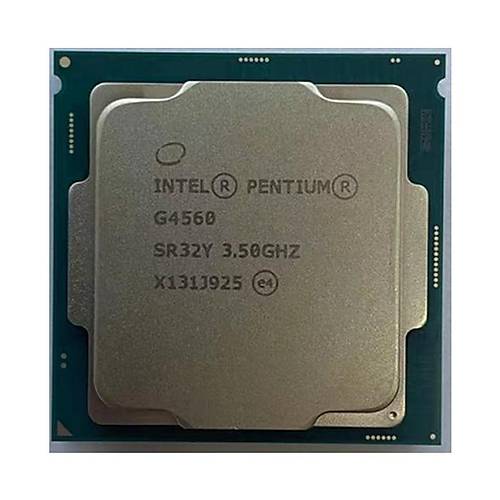

^{Intel CM8067702867064 Lg-1151 Pentium G4560 3.5 Ghz Kaby Lake Try İşlemci}

Product CollectionIntel® Pentium® Processor G Series
Code NameProducts formerly Kaby Lake
Vertical SegmentDesktop
Processor NumberG4560
StatusDiscontinued
Launch DateQ1'17
Lithography14 nm
CPU Specifications
Total Cores2
Total Threads4
Processor Base Frequency3.50 GHz
Cache3 MB
Bus Speed8 GT/s
# of QPI Links0
TDP54 W
Supplemental Information
Embedded Options AvailableNo
DatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type)64 GB
Memory TypesDDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels2
ECC Memory Supported ‡Yes
Processor Graphics
Processor Graphics ‡Intel® HD Graphics 610
Graphics Base Frequency350 MHz
Graphics Max Dynamic Frequency1.05 GHz
Graphics Video Max Memory64 GB
4K SupportYes, at 60Hz
Max Resolution (HDMI)‡4096x2304@24Hz
Max Resolution (DP)‡4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz
DirectX* Support12
OpenGL* Support4.4
Intel® Quick Sync VideoYes
Intel® InTru™ 3D TechnologyYes
Intel® Clear Video HD TechnologyYes
Intel® Clear Video TechnologyYes
# of Displays Supported ‡3
Device ID0x5902
Expansion Options
Scalability1S Only
PCI Express Revision3.0
PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes16
Package Specifications
Sockets SupportedFCLGA1151
Max CPU Configuration1
Thermal Solution SpecificationPCG 2015C (65W)
TJUNCTION100°C
Package Size37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡No
Intel® Turbo Boost Technology ‡No
Intel® Hyper-Threading Technology ‡Yes
Intel® Transactional Synchronization ExtensionsNo
Intel® 64 ‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Identity Protection Technology ‡Yes
Security & Reliability
Intel® AES New InstructionsYes
Secure KeyYes
Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX)Yes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡No
Execute Disable Bit ‡Yes
Intel® Boot GuardYes
Intel® Stable IT Platform Program (SIPP)No
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
