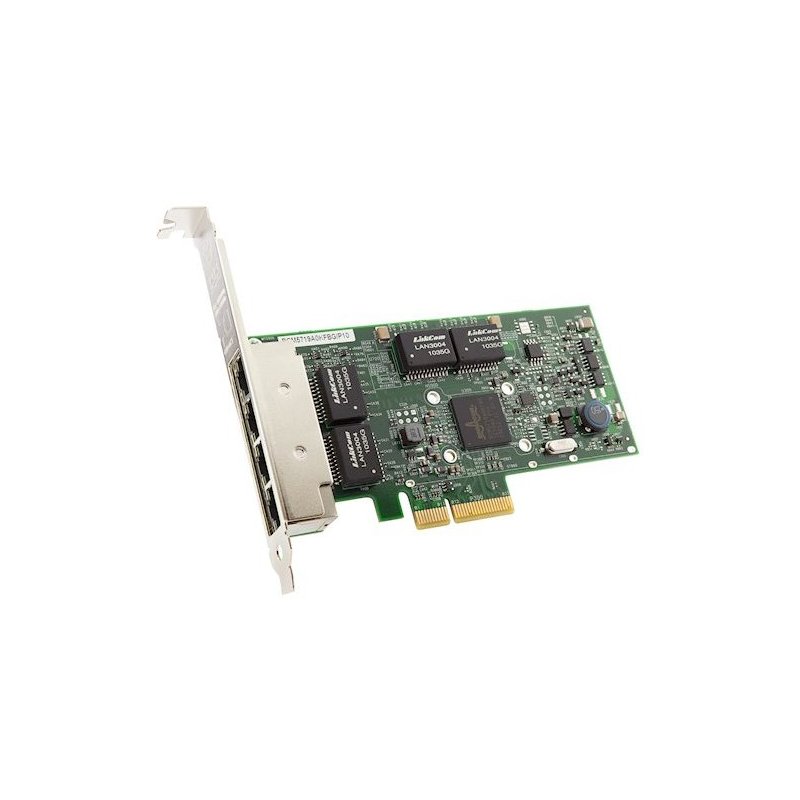

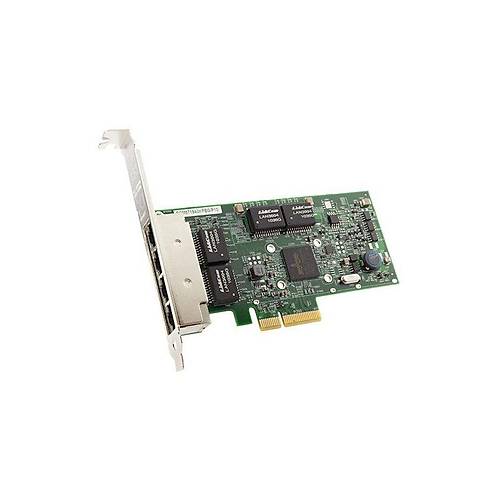

^{Lenovo 4XC7A08235 ThinkSystem 5719 4 Port 1GB RJ45 OCP PCI Express Ethernet Kartı}

Lenovo 4XC7A08235 THINKSYSTEM BROADCOM 5719 1GBE RJ45 4-PORT OCP ETHERNET ADAPTER Network Kartı

Ürün özellikleri

Bağlantı

Bağlantı teknolojisi

The technology that enables connectivity of the device, e.g. wired or wireless.

Kablolu

Ana bilgisayar arabirimi

Interface that enables a host controller to communicate with a driver.

PCI Express

Standart bağlantı

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA

Ethernet

Ethernet LAN (RJ-45) port sayısı

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

PCI versiyonu

2.0

Ağ Bağlantıları

Maksimum veri aktarım hızı

The maximum speed with which data can be transmitted from one device to another.

1000 Mbit/s

Ağ standartı

The way in which the network is working

IEEE 1588,IEEE 802.1Q,IEEE 802.1as,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z

Ethernet LAN bağlantısı

An Ethernet LAN (Local Area Network) interface is present

Ethernet arayüz türü

Gigabit Ethernet

Ethernet LAN veri transfer hızı

The different speed levels of the Ethernet LAN connection.

10,100,1000 Mbit/s

Wake-on-LAN hazır

LAN kontrolörü

Broadcom BCM5719

Tasarım

Önerilen kullanım

What the product should be used for

Sunucu

Ürün rengi

The colour e.g. red

Yeşil, Paslanmaz çelik

Dahili

The product is built in.

Tasarım

RoHS uyumlu

The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb)

Sertifikalar, uygunluk bildirimleri

EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V

Desteklenen ürünler

Other products that can be used with this product.

R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01)

Çevresel koşullar

Çalışma ısısı aralığı

The minimum and maximum temperatures at which the product can be safely operated.

10 - 35 °C

Çalıştırma nem aralığı

20 - 80%

Sistem gereksinimleri

Uyumlu işletim sistemi

List of desktop operating systems tested as compatible with this product.

Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 12 SP2, SUSE Linux Enterprise Server 12 SP2 with Xen, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP3 with Xen, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere Hypervisor (ESXi) 6.0 U3, VMware vSphere Hypervisor (ESXi) 6.5, VMware vSphere Hypervisor (ESXi) 6.5 U1, VMware vSphere Hypervisor (ESXi) 6.5 U2, VMware vSphere Hypervisor (ESXi) 6.5 U3, VMware vSphere Hypervisor (ESXi) 6.7, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3

Desteklenen server çalışma sistemleri

SUSE Linux Enterprise Server 12,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019

Ağırlık & boyutlar

Genişlik

The measurement or extent of something from side to side.

69 mm

Derinlik

The distance from the front to the back of something.

132 mm

Yükseklik

The measurement of the product from head to foot or from base to top.

19 mm

Diğer özellikler

Minimum çalışma ısısı

10 °C

Maksimum çalışma ısısı

35 °C

Akış kontrol desteği
