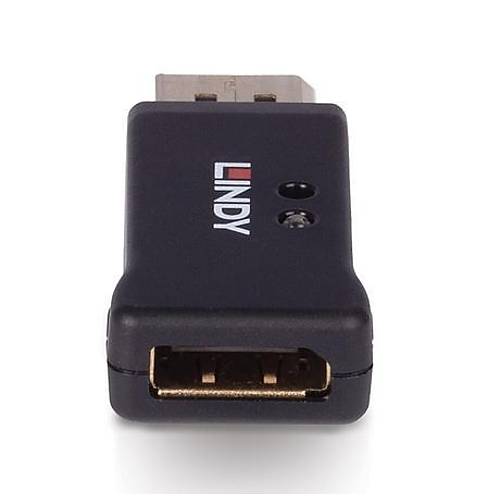

Lindy LIN-32118 DISPLAY PORT 1.4 EDID 3840x2160 144Hz Emulator

Technical details

Specification

• AV Interface: DisplayPort
• Interface Standard: 1.4
• Supported Bandwidth: 32.4Gbps
• Maximum Resolution: 7680x4320@30Hz 4:4:4 8bit
• Video EDID:
  • 800x600 at 60Hz
  • 832x624 at 60Hz
  • 1024x768 at 60Hz
  • 1280x720 at 60Hz
  • 1280x960 at 60Hz
  • 1280x1024 at 60Hz
  • 1366x768 at 60Hz
  • 1440x900 at 60Hz
  • 1600x900 at 60Hz
  • 1600x1200 at 60Hz
  • 1680x1050 at 60Hz
  • 1920x1080 at 60Hz (Default Resolution)
  • 1920x1200 at 60Hz
  • 1920x2160 at 60Hz
  • 2048x1536 at 60Hz
  • 2560x1440 at 60Hz
  • 3200x1800 at 60Hz
  • 3840x1620 at 60Hz
  • 3840x2160 at 60Hz
• Audio EDID: LPCM 2-Channel, 16/20/24 bit depths at 32/44.1/48 kHz
• HDCP Support: 2.2
• Special Features: Headless connection (No Monitor connection required)

Connectors

• Input: DisplayPort Male
• Output: DisplayPort Female
• Power: Via DP Source Interface

Physical Properties

• Dimensions WxDxH: 25.17x51.59x12.05mm (0.99x2.03x0.47in)
• Housing Material: ABS
• Net Weight: 0.012kg (0.028lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 136x138mm (5.35x5.43in)
• Gross Weight: 0.026kg (0.057lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

• DP 1.4 EDID Emulator
• Lindy Manual
