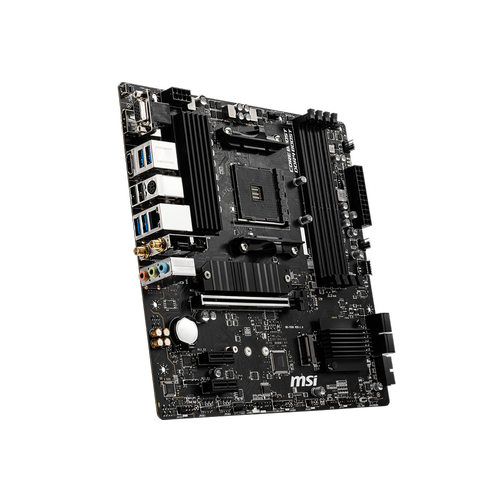

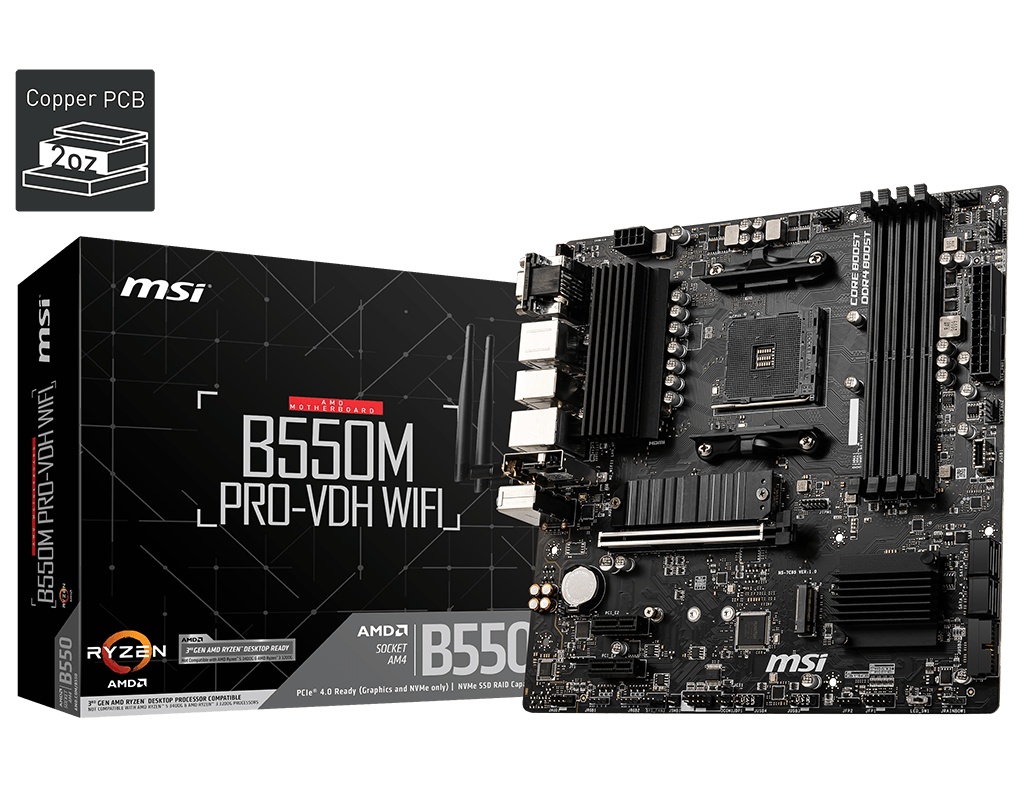

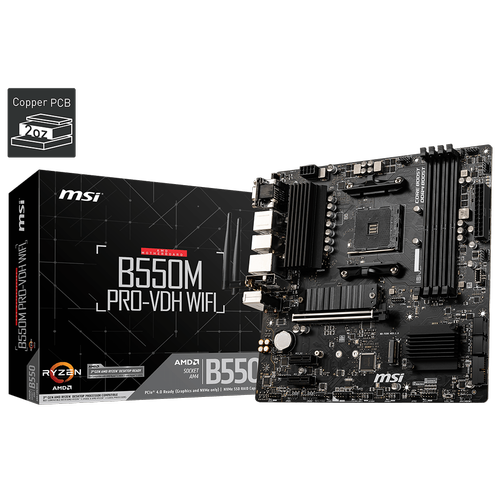

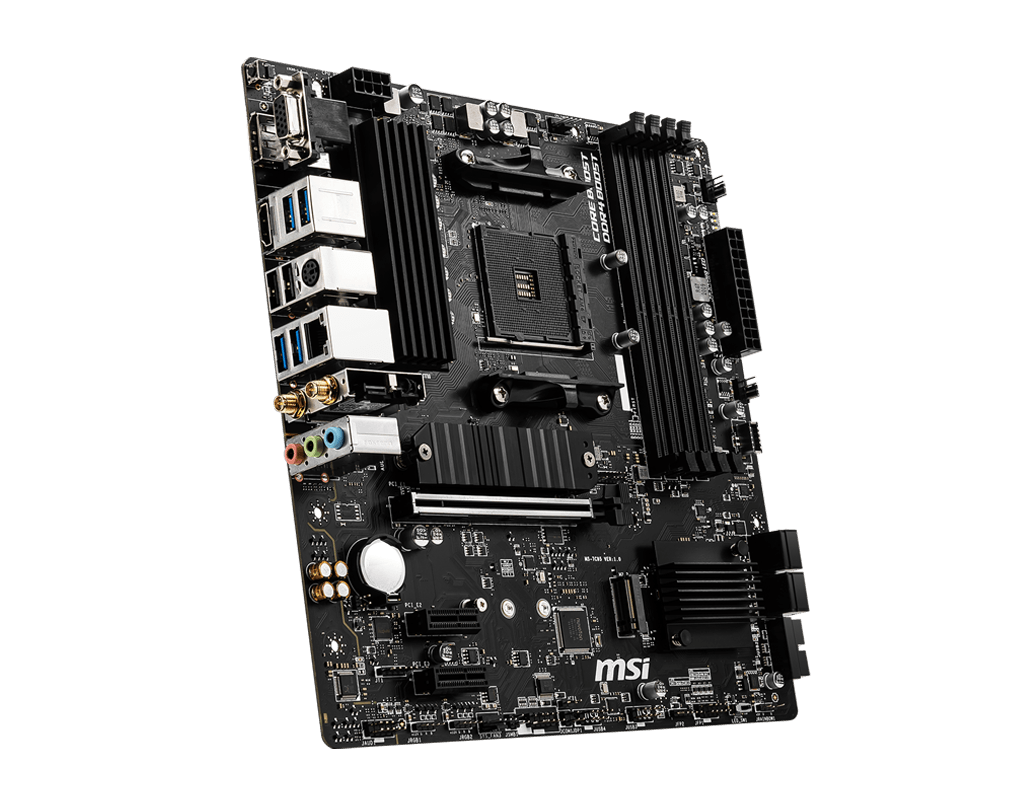

Msi B550M PRO-VDH WIFI Sc-AM4 B550 DDR4 4400Mhz M.2 USB 3.2 Wi-Fi mATX AMD Anakart

Görsel 1
Görsel 2
Görsel 3
ParaPuan : 1.979.735
Fiyat:
4.751,37 TL
Havale / EFT:
4.680,10 TL
902,76 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Msı B550M PRO-VDH WIFI SC-Am4 B550 DDR4 4000(OC) M2 Wi-Fi microATX Ryzen AMD Anakart



CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHZ
      • 1DPC 2R max speed 3733 MHZ
      • 2DPC 1R max speed 3866 MHZ
      • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.



ONBOARD GRAPHICS

  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
    Support HDCP 1.4 & 2.3
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® 8111HN Gigabit LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® Dual Band Wireless-AC 3168

  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

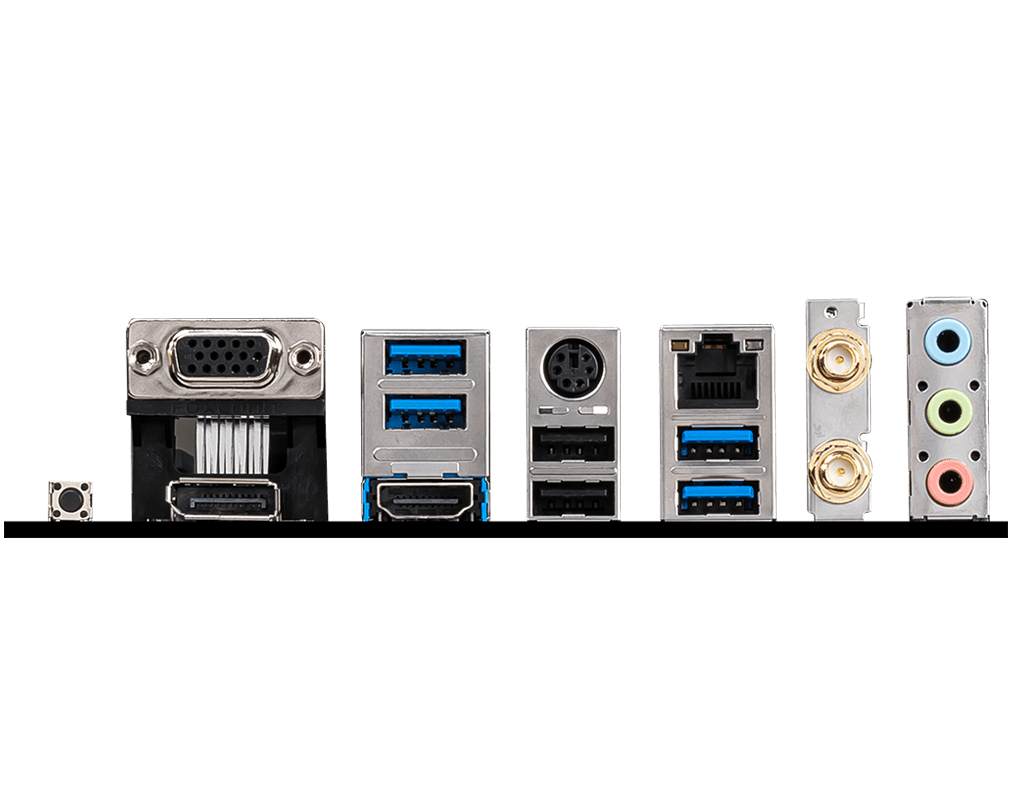

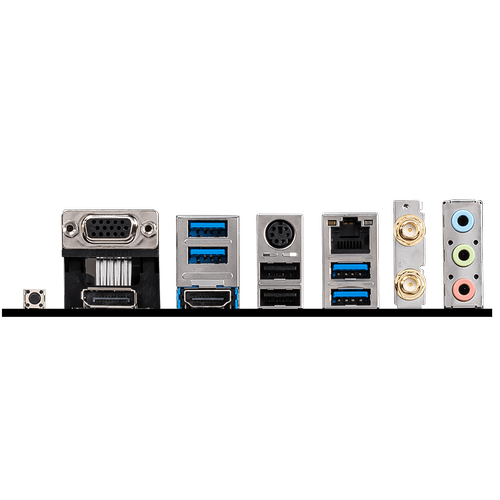

BACK PANEL PORTS

  1. VGA
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. Keyboard / Mouse
  4. LAN
  5. Flash BIOS Button
  6. DisplayPort
  7. HDMI
  8. USB 2.0
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. Wi-Fi Antenna connectors
  11. 3x Audio jacks

B550M PRO-VDH WIFI

DIMENSIONS

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

BOX CONTENT


MSI B550-A PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.

Teknik Özellikler
Soket YapısıAM4
Bellek TipiDDR4
ChipsetB550
Ekran KartıOnboard
D-Sub ÇıkışıVar
Dvı ÇıkışıVar
Hdmı ÇıkışıVar
Display Port ÇıkışıYok
M.2 SlotuVar
Kablosuz BağlantıVar
Ryzen 1. Nesil DesteğiVar
YapısımATX
Ryzen 2. Nesil DesteğiVar
Ryzen 3. Nesil DesteğiVar
Ryzen 4. Nesil DesteğiYok
Diğer Özellikler
Stok KoduB550M-PRO-VDH-WIFI
MarkaMSI
Stok DurumuVar
Garanti (Yıl)2
4719072733698
