Msi PRO H610M-E Sc-1700 H610 DDR5 5600Mhz M.2 USB3.2 mATX INTEL Anakart

Görsel 1
Görsel 2
Görsel 3
ParaPuan : 1.398.600
Fiyat:
3.356,64 TL
Havale / EFT:
3.306,29 TL
637,76 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo

PROCESSOR

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel® H610 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe x16 slot (From CPU)
    • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From H610 chipset)
    • Supports PCIe 3.0 x1

ONBOARD GRAPHICS

  • 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
  • 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
    1. Available only on processors featuring integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.

SATA PORTS

  • 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT

  • 1x M.2 slot (Key M) (from CPU)
    • Supports up to PCIe 3.0 x4
    • Supports 2242/ 2260/ 2280 storage devices

AUDIO

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® RTL8111H 1Gbps LAN controller

POWER CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin +12V power connector

INTERNAL USB CONNECTORS

  • 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From Hub-GL850G)
    • Supports additional 4 USB 2.0 ports

FAN CONNECTORS

  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors

SYSTEM CONNECTORS

  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector

JUMPERS

  • 1x Clear CMOS jumper

LED FEATURES

  • 1x 4-pin RGB LED connector
  • 4x EZ Debug LED

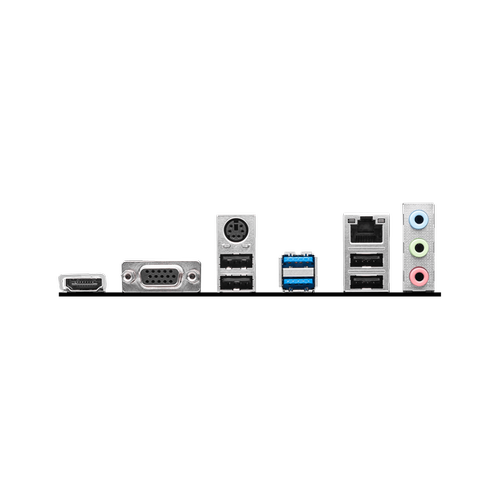

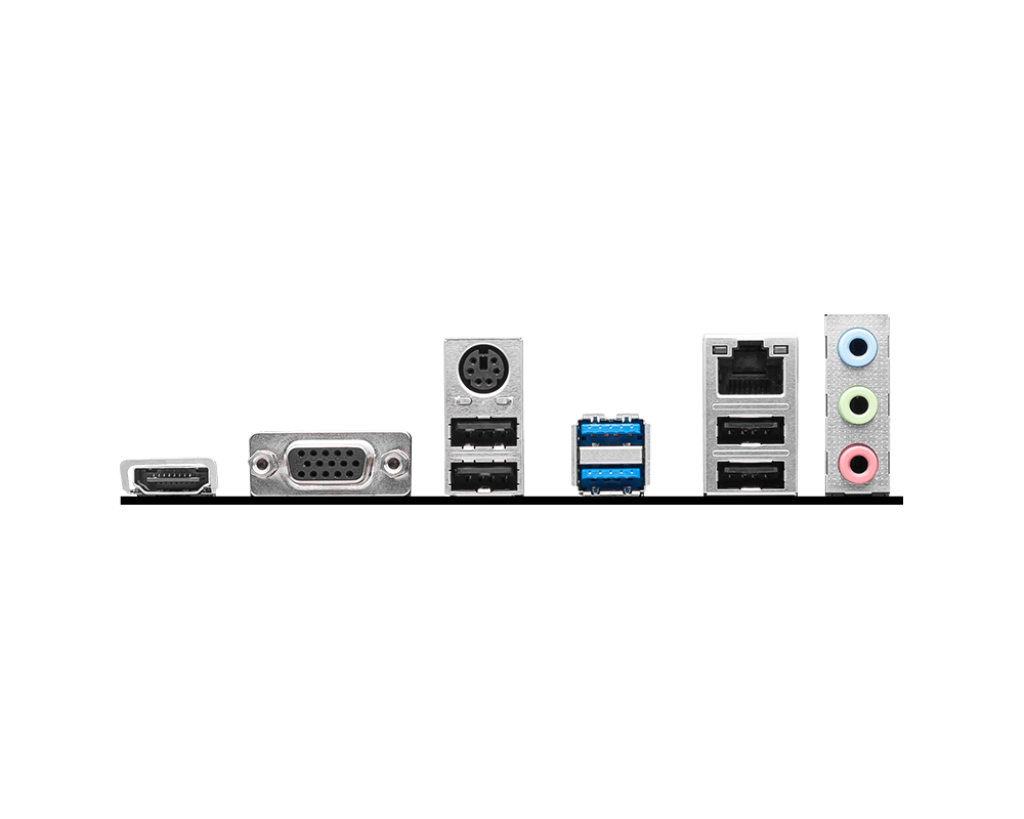

BACK PANEL PORTS

  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps Type-A
  5. LAN port
  6. Audio connector
  7. USB 2.0

MSI PRO H610M-B DDR4 back panel ports

DIMENSIONS

  • M-ATX Form Factor
  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Teknik Özellikler
Soket YapısıSc-1700
Bellek TipiDDR4
ChipsetH610
Ekran KartıOnboard
D-Sub ÇıkışıVar
Dvı ÇıkışıYok
Hdmı ÇıkışıVar
Display Port ÇıkışıYok
M.2 SlotVar
Kablosuz BağlantıYok
YapısımATX
4. Nesil CPU DesteğiYok
6. Nesil CPU DesteğiYok
7. Nesil CPU DesteğiYok
8. Nesil CPU DesteğiYok
9. Nesil CPU DesteğiYok
10. Nesil CPU DesteğiYok
11. Nesil CPU DesteğiYok
12. Nesil CPU DesteğiVar
13. Nesil CPU DesteğiVar
14. Nesil CPU DesteğiVar
Diğer Özellikler
Stok KoduPRO-H610M-E
MarkaMSI
Stok DurumuVar
Garanti (Yıl)2
4711377125147
