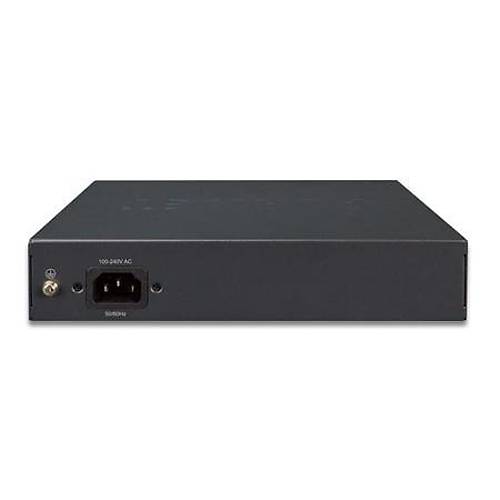

Planet PL-FSD-1008HP 8 Port 10/100TX PoE+ 2 Port 10/100TX 120W Masaüstü PoE Switch
ParaPuan : 791.040
Yönetilemeyen Masaüstü Tip Switch (Unmanaged Desktop Switch)
8-Port 10/100TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (Port-1 ile Port-8 arası) (PoE Güç Bütçesi maks. 120 Watt)
2-Port 10/100TX
Physical Port
- 10-port 10/100BASE-TX Fast Ethernet RJ45 copper
- 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
Power over Ethernet
- Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 55V DC power to PoE powered device
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode with 250m in extend mode
Switching
- Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
- 9-inch desktop size, 1U height, rack mountable
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- Fanless design
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
| Hardware Specifications | |
| Copper Port | 10 10/100BASE-TX MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 2Gbps/non-blocking |
| Switch Throughput@64 bytes | 1.48Mpps@64 bytes |
| MAC Address Table | 8K entries, automatic source address learning and aging |
| Maximum Frame Size | 1522 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED | System:
10/100BASE-TX RJ45 interfaces:
PoE interfaces:
|
| DIP Switch | Selectable operation mode
|
| Dimensions (W x D x H) | 220 x 150 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1230 g |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation | System On: Max. 2.4 watts/8.1 BTU Ethernet Full Loading: Max. 5 watts/10.2 BTU PoE Full Loading: Max. 129 watts/440.1 BTU |
| ESD Protection | Contact discharge of 4KV DC Air discharge of 6KV DC |
| Thermal Fan | Fanless |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 55V DC, 540mA. max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-FSD-1008HP |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
