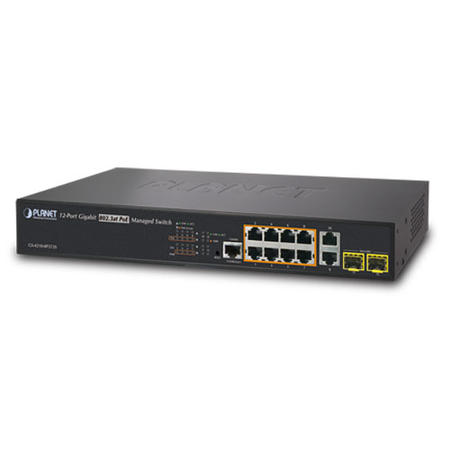

Planet PL-GS-4210-8P2T2S 8 Port Gigabit PoE 2 Port Gigabit 2 Port SFP 240W Yönetilebilir PoE Switch
Geçici olarak temin edilememektedir. Temin edildiğinde
Bu ürünün yerine tercih edebileceğiniz ürünler
Yönetilebilir Gigabit PoE Switch (Gigabit PoE Managed Switch)
10-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ Injector (Port-1 ile Port-8 arası) (Per port 30.8 watt) (PoE Güç Bütçesi maks. 240 Watt)
2-Port 100/1000BASE-X mini-GBIC/SFP yuva (Port-11 ve Port-12)
1 x Konsol port
Physical Port
Power over Ethernet
Layer 2 Features
Quality of Service
Multicast
Security
Management
10-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ Injector (Port-1 ile Port-8 arası) (Per port 30.8 watt) (PoE Güç Bütçesi maks. 240 Watt)
2-Port 100/1000BASE-X mini-GBIC/SFP yuva (Port-11 ve Port-12)
1 x Konsol port
Physical Port
- 10-Port 10/100/1000Base-T Gigabit RJ45 copper with 8-Port IEEE 802.3at/af PoE Injector (Port-1 to Port-8)
- 2 100/1000Base-X mini-GBIC/SFP slots
- RJ45 console interface for switch basic management and setup
Power over Ethernet
- - Total PoE power budget control
- - Per port PoE function enable/disable
- - PoE Port Power feeding priority
- - Per PoE port power limitation
- - PD classification detection
- - PD alive-check
- - PoE schedule
- Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
- Complies with IEEE 802.3af Power over Ethernet End-Span PSE
- Up to 8 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE Management
Layer 2 Features
- - IEEE 802.1Q tagged VLAN
- - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- - Protocol VLAN
- - Voice VLAN
- - Private VLAN
- - Management VLAN
- - GVRP
- - STP (Spanning Tree Protocol)
- - RSTP (Rapid Spanning Tree Protocol)
- - MSTP (Multiple Spanning Tree Protocol)
- - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (Static Trunk)
- - Maximum 8 trunk groups, up to 8 ports per trunk group
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
- Supports Spanning Tree Protocol
- Supports Link Aggregation
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service
- - Broadcast / Unknown-Unicast / Unknown-Multicast
- - IEEE 802.1p CoS
- - TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- Ingress / Egress Rate Limit per port bandwidth control
- Storm Control support
- Traffic classification
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IGMP Snooping v2 and v3
- Supports MLD Snooping v1, v2
- IGMP Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
Security
- - IEEE 802.1X Port-based network access authentication
- - Built-in RADIUS client to co-operate with the RADIUS servers
- - RADIUS / TACACS+ login user access authentication
- - IPv4 / IPv6 IP-based ACL
- - MAC-based ACL
- - Static MAC
- - MAC Filtering
- Authentication
- Access Control List
- MAC Security
- Port Security for Source MAC address entries filtering
- DHCP Snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- DoS Attack Prevention
- SSH/SSL
Management
- - Web switch management
- - Telnet Command Line Interface
- - SNMP v1, v2c and v3
- - SSH / SSL secure access
- - Firmware upload/download via HTTP / TFTP
- - Configuration upload / download through Web interface
- - Dual Images
- - Hardware reset button for system reboot or reset to factory default
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- User Privilege Levels Control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- SNTP Network Time Protocol
- Cable Diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms, and events)
- PLANET Smart Discovery Utility
- Smart fan with speed control
| Hardware Specifications | |
| Copper Ports | 10 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 x 100/1000Base-X SFP interfaces with Port-11 to Port-12. Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port | 8 ports with 802.3at / af PoE injector function with Port-1 to Port-8 |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | Switch Fabric 24Gbps / non-blocking |
| Switch Throughput@64Bytes | |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 8 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Var |
| Ethernet Port | 8 Port |
| SFP Port | 2 Port |
| PoE Port | 8 Port |
| PoE Değeri (Watt) | 240 Watt |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-GS-4210-8P2T2S |
| Marka | PLANET |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. Bilgi İçin Arayın |
| Garanti (Yıl) | 2 |
