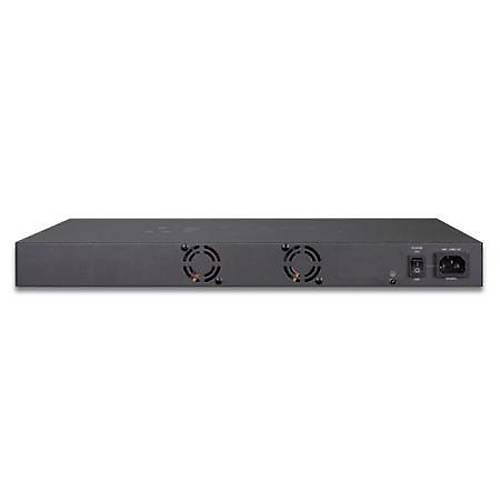

Planet PL-GS-5220-16S8C 24 Port 100/1000Base-X SFP 8 Port Gigabit SFP Rack Mount Switch
Geçici olarak temin edilememektedir. Temin edildiğinde
Bu ürünün yerine tercih edebileceğiniz ürünler
L2+ Managed Switch
24-Port 100/1000Base-X mini-GBIC/SFP yuva
8-port 10/100/1000Base-T (Port-1 ile Port-8 paylaşımlı)
1 x Konsol port
Physical Port
- 24 100/1000Base-X mini-GBIC/SFP slots
- 8-port 10/100/1000Base-T Gigabit Ethernet RJ-45, shared with Port-1 to Port-8
- RJ45 to RS-232 DB9 console interface for basic management and setup
Layer 2 Features
- - Broadcast / Unicast / Unknown Unicast
- - STP, IEEE 802.1D Spanning Tree Protocol
- - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- - BPDU Guard
- - 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (Static Trunk)
- - Maximum 12 trunk groups, up to 8 ports per trunk group
- - Up to 16Gbps bandwidth (full duplex mode)
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Storm Control support
- Supports VLAN
- - IEEE 802.1Q tagged VLAN
- - Up to 255 VLANs groups, out of 4095 VLAN IDs
- - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- - Private VLAN Edge (PVE)
- - Protocol-based VLAN
- - MAC-based VLAN
- - IP Subnet-based VLAN
- - Voice VLAN
- Supports Spanning Tree Protocol
- Supports Link Aggregation
- Provides Port Mirror (many-to-1)
- Port Mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
Layer 3 IP Routing Features
- Supports maximum 128 static routes and route summarization
Quality of Service
- - IEEE 802.1p CoS
- - TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- - IP TCP/UDP port number
- - Typical network application
- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP Snooping v1, v2 and v3
- Supports MLD Snooping v1 and v2
- Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
- MVR (Multicast VLAN Registration)
Security
- IEEE 802.1X Authentication with Guest VLAN
- Built-in RADIUS client to cooperate with the RADIUS servers
- RADIUS / TACACS+ users access authentication
- IP-based Access Control List (ACL)
- MAC-based Access Control List (ACL)
- Source MAC / IP address binding
- DHCP Snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management
- - Console / Telnet Command Line Interface
- - Web switch management
- - SNMP v1, v2c, and v3 switch management
- - SSH / SSL secure access
- Switch Management Interfaces
- Four RMON groups (history, statistics, alarms and events)
- IPv6 Address / NTP management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- Firmware upload / download via HTTP / TFTP
- DHCP Relay and Option 82
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP)
- SFP-DDM (Digital Diagnostic Monitor)
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues for TP ports
- ICMPv6 / ICMPv4 Remote Ping
- Reset button for system reboot or reset to factory default
- SMTP / Syslog / SNMP Trap remote alarm
- System Log
- PLANET Smart Discovery Utility for deploy management
Redundant Power System (GS-5220-16S8CR)
- Redundant 100~240V AC / 36-60V DC dual power
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
| Hardware Specifications | |
| Copper Ports | 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, shared with Port-1~Port-8 |
| SFP/mini-GBIC Slots | 24 100/1000Base-X dual-speed SFP interfaces |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 48Gbps / non-blocking |
| Throughput | 35.7Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and ageing |
| Shared Data Buffer | 16M bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | PoE Switch |
| Port Sayısı | 24 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Var |
| Ethernet Port | 8 Port |
| SFP Port | 8 Port |
| PoE Port | Yok |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-GS-5220-16S8C |
| Marka | PLANET |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. Bilgi İçin Arayın |
| Garanti (Yıl) | 2 |
