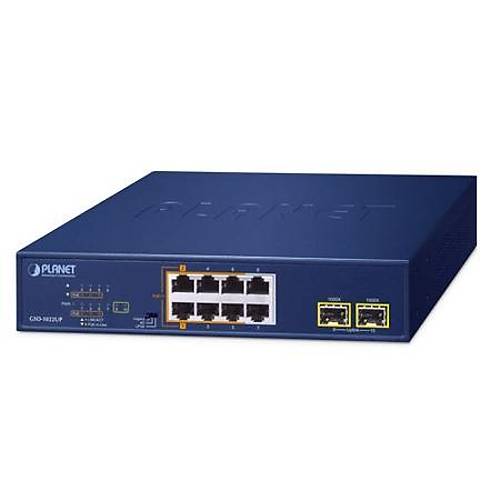

Planet PL-GSD-1022UP 8 Port PoE+ 2 Port Gigabit 2 Port SFp PoE Switch
ParaPuan : 3.424.890
| Fiyat | : | 8.219,74 TL |
| Havale / EFT | : | 7.932,05 TL |
1.561,75 TL'den başlayan taksit seçenekleri için tıklayın.
Planet PL-GSD-1022UP 8 Port PoE+ 2 Port Gigabit 2 Port SFp PoE Switch
| Hardware Specifications | |
|---|---|
| Copper Port | 8 10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
| Fiber Port | 2 1000BASE-X SFP slots |
| PoE Inject Port | 2 ports with 802.3bt PoE++ injector function (Ports 1 to 2) 4 ports with 802.3af/at PoE+ injector function (Ports 3 to 6) |
| DIP Switch | PoE power feeding options (Legacy/BT/UPOE) selection |
| Thermal Fan | 1 |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max |
| Power Consumption | Max. 200 watts, 682.4 BTU |
| Dimensions (W x D x H) | 220 x 150 x 44 mm |
| Weight | 1322g |
| Surge Protection | Differential mode ±2KV Common mode ±4KV |
| ESD Protection | Contact: ±6KV Air: ±8KV |
| Installation | Desktop, Wall-mount or Rack-mount installation |
| LED Indicators | System: ?Power (Green) 10/100/1000BASE-T RJ45 interfaces: ?10/100/1000Mbps LNK/ACT (Green) 1000BASE-X SFP interfaces: ?1000Mbps LNK/ACT (Green) PoE interfaces: ?PoE-in-Use (Amber) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 20Gbps |
| Switch Throughput | 13.39Mpps |
| Jumbo Packet | 9K bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3bt Power over Ethernet Plus Plus/PSE |
| PoE Power Supply Type | Ports 1 to 2: End-span + Mid-span Ports 3 to 6: End-span |
| Power Pin Assignment | Ports 1 to 2: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Ports 3 to 6: 2 pairs 1/2 (-), 3/6 (+) |
| PoE Power Output | Ports 1 to 2: 95W max. Ports 3 to 6: 32W max. |
| Total PoE Power Budget | 180 watts |
| Standard Conformance | |
| EMI Safety | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| EEE | IEEE 802.3az |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | PoE Switch |
| Port Sayısı | 8 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Yok |
| Ethernet Port | 4 Port |
| SFP Port | 2 Port |
| PoE Port | 4 Port |
| PoE Değeri (Watt) | 200 Watt |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-GSD-1022UP |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
