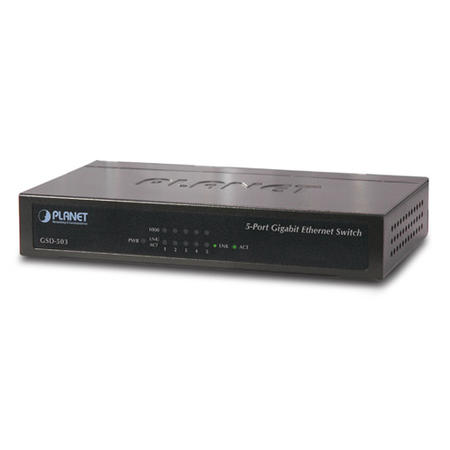

Planet PL-GSD-503 5 Port 10/100/1000Base-T Gigabit Masaüstü Ethernet Switch
ParaPuan : 271.150
Unmanaged Switch 5-Port 10/100/1000Base-T
RJ-45 Interface
- 5-Port 10/100/1000Mbps Gigabit Ethernet
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
- Supports auto MDI/MDI-X function
Switching
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- 9K Jumbo packet size
- Power saving ability for Green networking
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Hardware
- Made of metal, desktop size and wall-mount design
- LED indicators for system power, per port 1000 & Link / Act
- 5V DC, 1A external power adapter
- FCC, CE Class B compliant
| Hardware Specification | |
| Hardware Version | 7 |
| 10/100/1000Base-T Ports | 5 Auto MDI/MDIX ports |
| LED Display | One for Power, Two for 1000 & Link / Act per port |
| Enclosure | Metal |
| Dimensions (W x D x H) | 86 x 155 x 26 mm |
| Weight (g) | 317g |
| Power Requirements (External power adapter) | 5V DC, 1A |
| Power Consumption (100M Full operating) | 3.3 watts / 11 BTU |
| Switch Specification | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K |
| Flow Control | Back pressure half duplex IEEE 802.3x pause frame full duplex |
| Switch fabric | 10Gbps |
| Throughput (packet per second) | 7.44Mpps |
| Jumbo packet size | 9K |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-duplex Flow Control) IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Environments | |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Masaüstü |
| Port Sayısı | 5 Port |
| Veri Transferi | 10/100/1000 Mbps |
| Yönetim | Yok |
| Ethernet Port | 5 Port |
| SFP Port | Yok |
| PoE Port | Yok |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-GSD-503 |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
