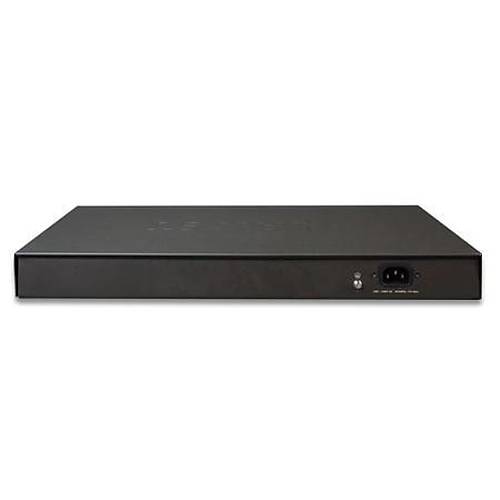

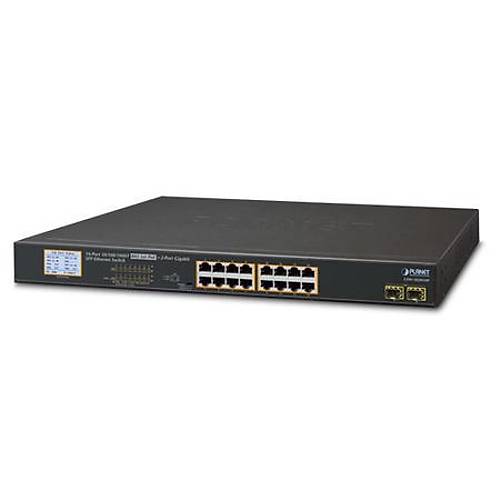

Planet PL-GSW-1820VHP 16 Port 1000Base-T PoE+ 2 Port 1000Base-X SFP 300W PoE Switch
ParaPuan : 2.825.280
Yönetilemeyen Switch (Unmanaged Switch)
16-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 300 Watt)
2 x 1000Base-X SFP yuva
LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için
Physical Port
- 16-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
- 2 1000BASE-X mini-GBIC SFP interfaces
Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 16 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 52V DC power to PoE powered device
- 300-watt PoE budget
- Auto detects powered device
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode and 250m in extend mode
Switching
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
- 19-inch desktop size, 1U height, rack mountable
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- LCD monitor for system status and PoE usage status display
- 2 silent fans to provide stable and efficient power performance
| Hardware Specifications | |
| 10/100/1000BASE-T MDI/MDIX Ports | 16 |
| 1000BASE-X SFP Interfaces | 2 |
| PoE Injector Port | 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput@64 bytes | 26.8Mpps@64Bytes |
| MAC Address Table | 8K entries, automatic source address learning and aging |
| Maximum Frame Size | 9K bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED | System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Orange) 1000Mbps LNK/ACT (Green) 1000BASE-X SFP Interfaces: 1000Mbps LNK/ACT (Green) PoE Interfaces: PoE-in-Use (Orange) |
| LCD Monitor | ■ PoE loading of each port ■ Total PoE power usage ■ Total PoE budget ■ System status, such as overload, low voltage, over voltage and high temperature |
| DIP Switch | Selectable operation mode ■ Standard ■ VLAN ■ Extend + VLAN |
| Dimensions (W x D x H) | 233 x 440 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 3.3kg |
| Power Requirements | AC 100~240V, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 330 watts/1132 BTU |
| Thermal Fan | 2 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 52V DC, 600mA. max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 300 watts |
| Max. Number of Class 2 PDs | 16 |
| Max. Number of Class 3 PDs | 16 |
| Max. Number of Class 4 PDs | 11 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-GSW-1820VHP |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
