Planet PL-ICS-110 1 Port 100 Mt RS232/422/485 RJ45 Serial Dönüştürücü
ParaPuan : 2.257.200
| Fiyat | : | 5.417,28 TL |
| Havale / EFT | : | 5.227,68 TL |
1.029,28 TL'den başlayan taksit seçenekleri için tıklayın.

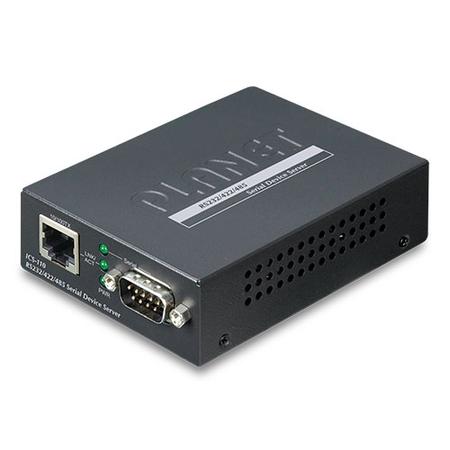

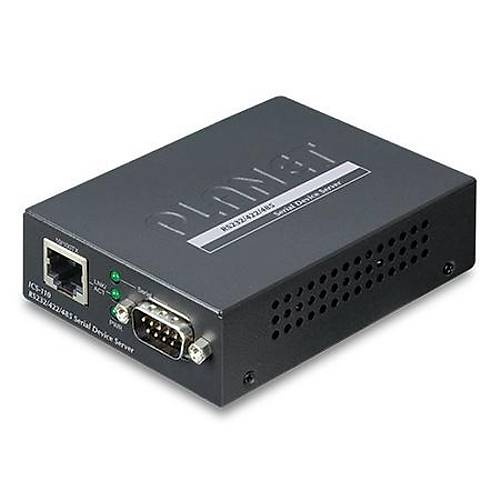

PLANET PL-ICS-110 1 Port 100 Mt RS232/422/485 RJ45 Serial Dönüştürücü
| Serial Port | 1 x DB9 male |
| Serial Standards | RS232/RS422/4-wire RS485/2-wire RS485 |
| Baud Rate (Data Rate) | 50bps to 921Kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| Parity Type | Odd, Even, None, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS232 only) XON/XOFF |
| Signals | RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS422: Tx+, Tx-, Rx+, Rx-, GND 4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND 2-wire RS485: Data A (+), Data B (-), GND |
| Ethernet Ports | 1 x RJ45 |
| Standard | 10/100BASE-TX |
| Distance | 100m |
| ESD Protection | 6KV |
| Management Interfaces | Web management Telnet Console management Windows-based VCOM Utility management SNMPv1, v2c / SNMP Trap UNI-NMS monitoring PLANET Smart Discovery Utility |
| IP Version | IPv4 and IPv6 |
| Operation Mode | ? TCP Server / TCP Client ? UDP Client ? Virtual COM ? RFC2217 ? Telnet Server ? Pair Connection – Remote (Slave) ? Pair Connection – Local (Master) ? Modbus converter server / client |
| Virtual COM Utility Platform Supports | Windows-based Only: ?Windows XP ?Windows Server 2003 ?Windows 7 ?Windows Server 2008 ?Windows 8 (Must install the latest version of WinPcap) ?Windows Server 2012 (Must install the latest version of WinPcap) ?Windows 10 |
| Fault Alarm | Record: System log / SNMP trap |
| Time | NTP |
| Security | Accessible IP (white list) |
| SNMP | SNMP v1 and v2c |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-ICS-110 |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
