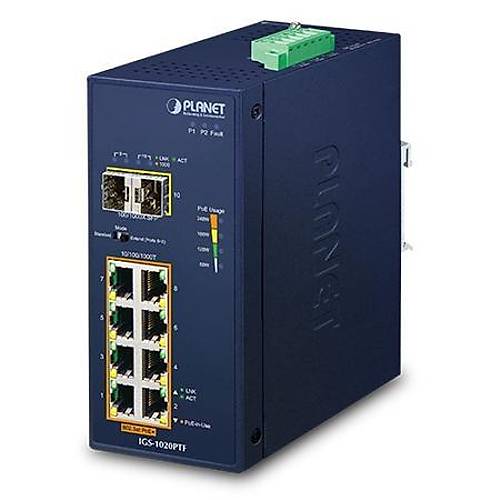

Planet PL-IGS-1020PTF 8 Port Gigabit PoE+ 2 Port SFP 240W PoE Endüstriyel Yönetilebilir Switch

Görsel 1
ParaPuan : 4.651.520
Fiyat:
11.163,65 TL
Havale / EFT:
10.996,20 TL
2.121,09 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch (-40~75 degrees C)



Physical Port

  • Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE+ Injector (Ports 1 to 8)
  • Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10)



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 240-watt PoE budget
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters



Industrial Case and Installation

  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 48~56V DC redundant power with reverse polarity protection
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Switching

  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 20Gbps switch fabric
  • 9K jumbo frame
  • Hardware-based DIP switch for “Standard” and  “Extend” mode selection; the “Extend” mode features 30-watt PoE transmission distance of 250m at speed of 10Mbps
  • Automatic address learning and address aging



Teknik Özellikler
Kullanım TipiEndüstriyel
Port Sayısı8 Port
Veri Transferi10/100/1000 Mbps
YönetimVar
Ethernet Port8 Port
SFP Port2 Port
PoE Port8 Port
PoE Değeri (Watt)240 Watt
Diğer Özellikler
Stok KoduPL-IGS-1020PTF
MarkaPLANET
Stok DurumuVar
Garanti (Yıl)2
4711605284943
