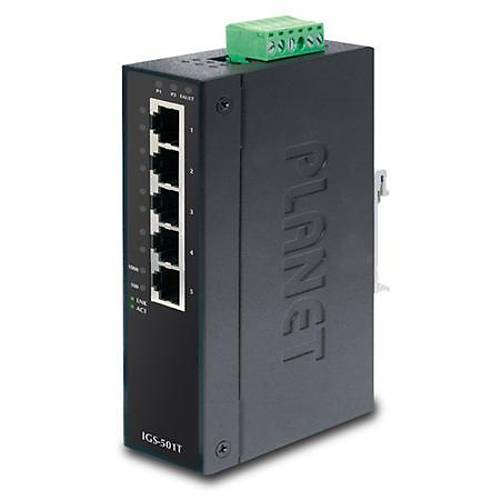

Endüstriyel Tip Yönetilemeyen Switch (Industrial Unmanaged Switch)
5-Port 10/100/1000T
IP30, -40~75 Derece C
Physical Port- 5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function
Layer 2 Features- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- 1M bits on-chip buffer memory
- 9K Jumbo packet size support
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case / Installation- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
- Supports EFT protection 6000V DC for power line
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Hardware Specifications |
Hardware Version | 3 |
Copper Ports | 5 x 10/100/1000Base-T RJ45 TP auto-MDI/MDI-X, auto-negotiation |
Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
LED | 3 x LED for system and power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Green: Power Fault 2 x LED for each copper port ■ Green: 1000Mbps LNK/ACT ■ Orange:10/100Mbps LNK/ACT |
ESD Protection | 6KV |
EFT Protection | 6KV |
Power Requirements | 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support |
Power Consumption / Dissipation | 4.8 watts / 16BTU (48V DC) 8.3 watts / 28BTU (24V DC) |
Installation | DIN rail kit and wall-mount ear |
Enclosure | IP30 metal case |
Dimensions (W x D x H) | 135 x 87 x 32 mm |
Weight | 498g |
Switch Specifications |
Switch Processing Scheme | Store-and-Forward |
Address Table | 2K entries |
Buffer Memory | 1M bits on-chip buffer memory |
Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
Switch Fabric | 10Gbps |
Throughput (packet per second) | 7.4Mpps @64bytes |
Jumbo Frame | 9K |
Network Cables | 10/100/1000Base-T Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)] EIA/TIA-568 100-ohm STP [100 meters (max.)] |
Standards Conformance |
Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x full-duplex flow control |
Regulation Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
Environment |
Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
Diğer Özellikler |
Stok Kodu | PL-IGS-501T |
Marka | PLANET |
Stok Durumu | Var |
Garanti (Yıl) | 2 |
