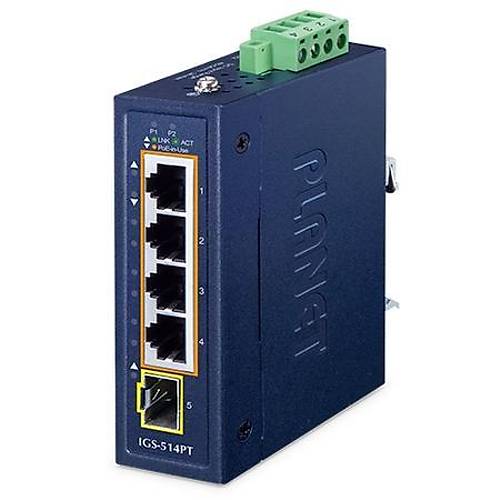

Planet PL-IGS-514PT 4 Port Gigabit 1 Port SFP PoE+ Industrial Ethernet Switch
ParaPuan : 3.149.535
| Fiyat | : | 7.558,88 TL |
| Havale / EFT | : | 7.294,32 TL |
1.436,19 TL'den başlayan taksit seçenekleri için tıklayın.
Planet PL-IGS-514PT 4 Port Gigabit 1 Port SFP PoE+ Industrial Ethernet Switch
| Hardware Specifications | |
|---|---|
| Copper Ports | 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| SFP Ports | 1 1000BASE-SX/LX/BX SFP interface, backward compatible with 100BASE-FX SFP |
| PoE Injector Ports | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| Power Requirements | 48~54V DC, 3A (max.) Redundant power with reverse polarity protection |
| Power Consumption | DC 54V: Max. 1.62 watts/5.53BTU (System) Max. 135 watts/460.64BTU ( Full Loading) |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 260g |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps@64bytes |
| Address Table | 2K entries |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Output | 30 watts (per port) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 4 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Yok |
| Ethernet Port | 4 Port |
| SFP Port | 1 Port |
| PoE Port | 4 Port |
| PoE Değeri (Watt) | 120 Watt |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-514PT |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
