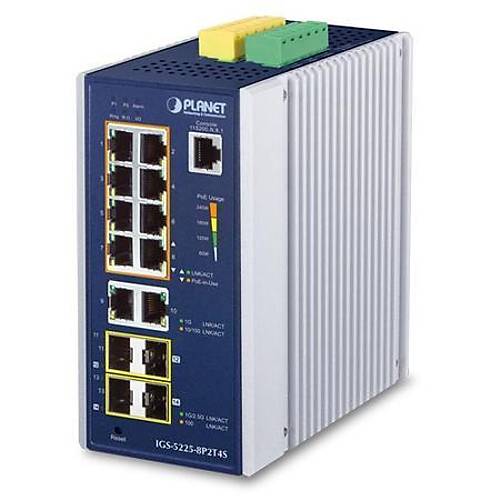

Planet PL-IGS-5225-8P2T4S 14 Port 8 Port 100T PoE 240W 2 Port 1000T 2 Port SFP Endüstriyel Switch
ParaPuan : 13.341.150
| Fiyat | : | 32.018,76 TL |
| Havale / EFT | : | 30.898,10 TL |
6.083,56 TL'den başlayan taksit seçenekleri için tıklayın.
Planet PL-IGS-5225-8P2T4S 14 Port 8 Port 100T PoE 240W 2 Port 1000T 2 Port SFP Endüstriyel Switch
| Hardware Specifications | |
|---|---|
| Copper Ports | 10 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Fiber Ports | 2 100/1000BASE-X SFP interfaces (Port-11 and Port-12) 2 100/1000/2500BASE-X SFP interfaces (Port-13 and Port-14) |
| PoE Injector Ports | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| RAM | 128MBytes |
| Flash Memory | 64MBytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| ESD Protection | 6KV DC |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input | 2 digital input (DI) ?Level 0: -24V~2.1V (±0.1V) ?Level 1: 2.1V~24V (±0.1V) ?Input load to 24V DC, 10mA max. |
| Digital Output | 2 digital output(DO) Open collector to 24VDC, 100mA max. |
| Dimensions (W x D x H) | 76.8 x 107.3 x 152 mm |
| Weight | 1.1kg |
| Power Requirements | Dual 48~56V DC (>51V DC for PoE+ output recommended) |
| Power Consumption | Max. 7W/23.88 BTU (Power on) Max. 262W/893.98 BTU(Full Loading) |
| LED Indicator | System: ?Power 1 (Green) ?Power 2 (Green) ?Fault Alarm (Red) ?Ring (Green) ?Ring Owner (Green) ?DIDO (Red) Per 10/100/1000T RJ45 PoE+ Ports: ?PoE-in-Use (Amber) ?LNK/ACT (Green) Per 10/100/1000T RJ45 Ports: ?1000 LNK/ACT (Green) ?100 LNK/ACT (Amber) Per SFP Interface: ?100 LNK/ACT (Amber) ?1G/2.5G LNK/ACT (Green) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 34Gbps/non-blocking |
| Throughput (packet per second) | 25.30Mpps@ 64 bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with 802.3af Power over Ethernet |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard ?Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard ?Per port 52V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 48V Power input ?125W maximum (depending on power input) 52~56V Power input ?240W maximum (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 8 |
| PoE Management Functions | |
| Active PoE device alive detection | Yes |
| PoE Power Recycling | Yes, daily or predeinded schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. 160 to 200 meters |
| PoE System Management | System PoE Admin control Total PoE power budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm |
| PoE Port Management | Port Enable/Disable/Schedule Port Priority |
| Layer 3Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4k VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 6 trunk groups with 4 ports per trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Up to 255 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups |
| Bandwidth Control | Per port bandwidth control ?Ingress: 500Kb~1000Mbps ?Egress: 500Kb~1000Mbps |
| RING | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms |
| Synchronization | IEEE 1588v2 PTP(Precision Time Protocol) ?Peer-to-peer transparent clock ?End-to-end transparent clock |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching ?Port number ?802.1p priority ?802.1Q VLAN tag ?DSCP/TOS field in IP packet |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 12 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Var |
| Ethernet Port | 2 Port |
| SFP Port | 2 Port |
| PoE Port | 8 Port |
| PoE Değeri (Watt) | 240 Watt |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-5225-8P2T4S |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
