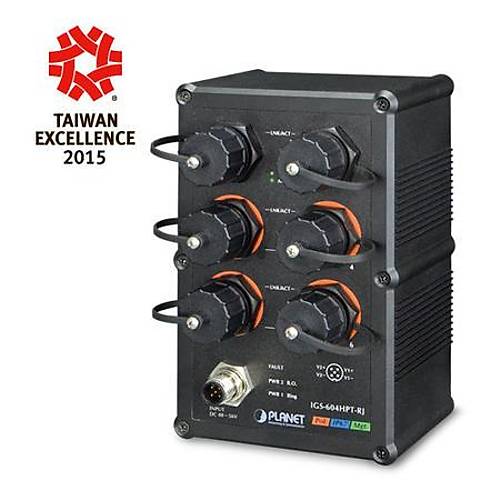

Planet PL-IGS-604HPT-RJ 4 Port Gigabit PoE+ 2 Port Gigabit 144W PoE Yönetilebilir Endüstrieyel Switch
Lütfen Teklif İsteyin |
Endüstriyel Tip Yönetilebilir Ethernet Switch (Industrial Managed Ethernet Switch)
4-Port 10/100/1000Base-TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt)(PoE Güç Bütçesi maks. 144 watt)
2-Port 10/100/1000T
IP67, 40~75 Derece C
Physical Port
Hardware Conformance
Hardware Conformance
Layer 3 IP Routing Features
Layer 2 Features
Quality of Service
Multicast
Security
Management
4-Port 10/100/1000Base-TX IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt)(PoE Güç Bütçesi maks. 144 watt)
2-Port 10/100/1000T
IP67, 40~75 Derece C
Physical Port
- 6-port 10/100/1000BASE-T waterproof and dustproof RJ45 copper with 4-port IEEE 802.3at/af Power over Ethernet Injector function
Hardware Conformance
- - Total PoE power budget control
- - Per port PoE function enable/disable
- - PoE Port Power feeding priority
- - Per PoE port power limitation
- - PD classification detection
- - PD alive check
- - PoE schedule
- - PD scheduled power recycling
- Complies with IEEE 802.3at High Power over Ethernet end-span PSE
- Complies with IEEE 802.3af Power over Ethernet end-span PSE
- Up to 4 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE Power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE Management
Hardware Conformance
- - 48 to 56V DC, redundant power with polarity reverse protect function
- - Active-active redundant power failure protection
- - Backup of catastrophic power failure on one supply
- - Fault tolerance and resilience
- IP67-rated aluminum case
- Redundant power design
- DIN-rail and wall-mount design
- Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Layer 3 IP Routing Features
- Supports maximum 32 static routes and route summarization
Layer 2 Features
- - Broadcast/Multicast/Unicast
- - IEEE 802.1Q tagged VLAN
- - Up to 255 VLANs groups, out of 4095 VLAN IDs
- - Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- - Private VLAN Edge (PVE)
- - Protocol-based VLAN
- - MAC-based VLAN
- - IP subnet-based VLAN
- - Voice VLAN
- - STP, IEEE 802.1D Spanning Tree Protocol
- - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- - BPDU Guard
- - 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (static trunk)
- - Maximum 3 trunk groups, with 2 ports for each trunk
- - Up to 4Gbps bandwidth (full duplex mode)
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
- Storm control support
- Supports VLAN
- Supports Spanning Tree Protocol
- Supports Link Aggregation
- Provides port mirror (many-to-1)
- Port mirroring monitors the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops

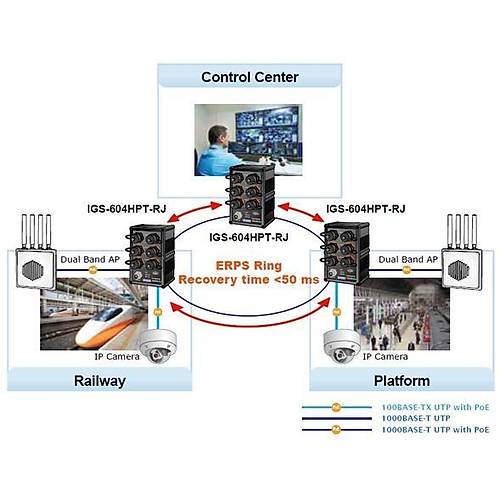

- Supports E.R.P.S. (Ethernet Ring Protection Switching)
- IEEE 1588 and Synchronous Ethernet network timing
Quality of Service
- - IEEE 802.1p CoS
- - ToS/DSCP/IP precedence of IPv4/IPv6 packets
- - IP TCP/UDP port number
- - Typical network application
- Ingress shaper and egress rate limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP snooping v1, v2 and v3
- Supports MLD snooping v1 and v2
- Querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
- MVR (Multicast VLAN Registration)
Security
- - IEEE 802.1x port-based/MAC-based network access authentication
- - IEEE 802.1x authentication with guest VLAN
- - Built-in RADIUS client to cooperate with the RADIUS servers
- - RADIUS/TACACS+ users access authentication
- - IP-based Access Control List (ACL)
- - MAC-based Access Control List (ACL)
- Authentication
- Access Control List
- Source MAC/IP address binding
- DHCP Snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management
- - Telnet command line interface
- - Web switch management
- - SNMP v1, v2c, and v3 switch management
- - SSH/SSL secure access
- - Firmware upload/download via HTTP/TFTP
- - Reset button for system reboot or reset to factory default
- - Dual images
- - Cable diagnostic technology provides the mechanism to detect and
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 4 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Var |
| Ethernet Port | 4 Port |
| SFP Port | Yok |
| PoE Port | 4 Port |
| PoE Değeri (Watt) | 144 Watt |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-604HPT-RJ |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
