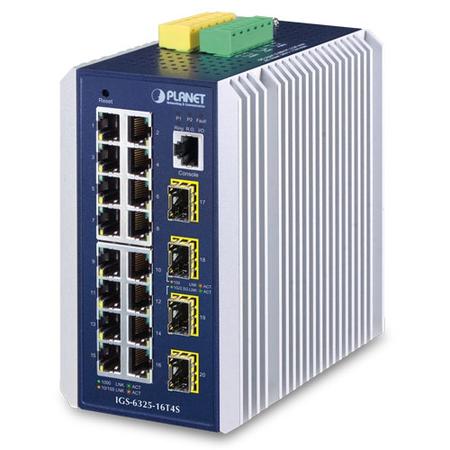

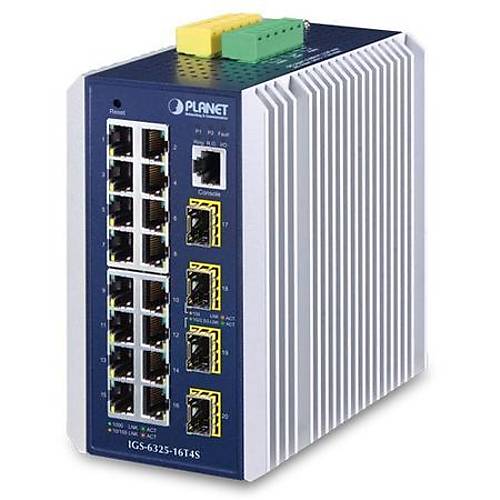

Planet PL-IGS-6325-16T4S 16 Port Gigabit 4 Port SFP L3 Endüstriyel Yönetilebilir Switch
ParaPuan : 13.590.795
| Fiyat | : | 32.617,91 TL |
| Havale / EFT | : | 31.476,28 TL |
6.197,40 TL'den başlayan taksit seçenekleri için tıklayın.
Planet PL-IGS-6325-16T4S 16 Port Gigabit 4 Port SFP L3 Endüstriyel Yönetilebilir Switch
| Hardware Specifications | |
|---|---|
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Ports | 4 100/1000/2500BASE-X SFP slot interfaces (Port-17 to Port-20) Compatible with 100BASE-FX SFP transceiver |
| SFP+ Ports | N/A |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| SDRAM | 512Mbytes |
| Flash Memory | 64Mbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) | 2 digital input: ?Level 0: -24~2.1V (±0.1V) ?Level 1: 2.1~24V (±0.1V) ?Input load to 24V DC, 10mA max. |
| Digital Output (DO) | 2 digital output: ?Open collector to 24VDC, 100mA |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail or wall mounting |
| Dimensions (W x D x H) | 76.8 x 107.3 x 152 mm |
| Weight | 1,168g |
| Power Requirements | DC 9~48V, 3.3A max. AC 24V, 1.2A max. |
| Power Consumption | DC input: Max. 9.12 watts/32BTU (system on) Max. 26.04 watts/89 BTU (Full loading) AC 24V input: Max. 12 watts/41BTU (system on) Max. 29 watts/99 BTU (Full loading) |
| ESD Protection | 6KV DC |
| Surge Protection | 4KV DC |
| LED Indicators | System: ?Power 1 (Green), Power 2 (Green) ?Fault Alarm (Red) ?Ring (Green), Ring Owner (Green) ?DIDO (Red) Per 10/100/1000T RJ45 Port: ?1000Mbps LNK/ACT (Green) ?10/100Mbps LNK/ACT (Amber) Per SFP Port: ?1G/2.5G LNK/ACT (Green) ?100Mbps LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Throughput | 38.69Mpps@64Bytes |
| Address Table | 32K entries, automatic source address learning and aging |
| Shared Data Buffer | 16Mb |
| Jumbo Frame | 10K bytes |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 static routing entries Max. 4000 dynamic routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing OSPFv2 dynamic routing |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 16 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Var |
| Ethernet Port | 16 Port |
| SFP Port | 4 Port |
| PoE Port | Yok |
| PoE Değeri (Watt) | Yok |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-6325-16T4S |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
