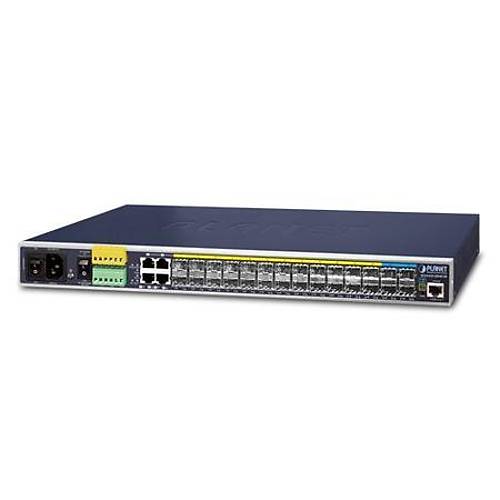

Planet PL-IGS-6325-20S4C4X 10 Port 1G SFp 10 Port 2.5G SFP+ 4 Port 10G SFp+ L3 Endüstriyel Yönetilebilir Switch
ParaPuan : 24.092.435
| Fiyat | : | 57.821,84 TL |
| Havale / EFT | : | 55.798,08 TL |
10.986,15 TL'den başlayan taksit seçenekleri için tıklayın.
Planet PL-IGS-6325-20S4C4X 10 Port 1G SFp 10 Port 2.5G SFP+ 4 Port 10G SFp+ L3 Endüstriyel Yönetilebilir Switch
| Hardware Specifications | |
|---|---|
| Copper Ports | 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4 |
| SFP/mini-GBIC Slots | 14 100/1000BASE-X SFP interfaces (Port-1 to Port-14) Compatible with 100BASE-FX SFP transceiver 10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24) Compatible with 100BASE-FX and 2500BASE-X SFP transceiver |
| SFP+ Slots | 4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28) Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 440 x 200 x 44.5 mm, 1U height |
| Weight | 2.935kg |
| Power Consumption | AC input: ?Max. 38.3 watts/131.4 BTU DC input: ?Max. 41.4 watts/142 BTU |
| Power Requirements – AC | AC 100~240V, 50/60Hz 1A |
| Power Requirements – DC | DC 24~60V, 2.25A |
| DI and DO | 2 digital input (DI): ?Level 0: -24~2.1V ?Level 1: 2.1~24V ?Max. input current: 10mA 2 digital output (DO): ?Open collector to 24VDC, 100mA |
| EFT Protection | 6KV DC |
| ESD Protection | 6KV DC |
| LED Indicator | System: ?AC (Green), DC1 (Green), DC2 (Green), Fault (Red) ?Ring (Green), DI/DO. (Red) 10/100/1000T RJ45 Interfaces (Port 1 to Port 4): ?1000Mbps LNK/ACT (Green) ?10/100Mbps LNK/ACT (Amber) 100/1000Mbps SFP Combo Interfaces (Port 1 to Port 4): ?1000Mbps LNK/ACT (Green) ?100Mbps LNK/ACT (Amber) 100/1000Mbps SFP Interfaces (Port 5 to Port 14): ?1000Mbps LNK/ACT (Green) ?100Mbps LNK/ACT (Amber) 100/1G/2.5Gbps SFP Interfaces (Port 15 to Port 24): ?1G/2.5G LNK/ACT (Green) ?100 LNK/ACT (Amber) 1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28): ?1G/2.5G LNK/ACT (Green) ?10Gbps LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 158Gbps/non-blocking |
| Throughput | 117.5Mpps@64Bytes |
| Address Table | 32K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| SDRAM | 512MB |
| FLASH Memory | 64MB |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4096 VLAN IDs GVRP |
| Link Aggregation | IEEE 802.3ad LACP/static trunk 14 trunk groups with 16 port per trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: ?Port number ?802.1p priority ?802.1Q VLAN tag ?DSCP/ToS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) snooping IGMP querier mode support Supports 255 IGMP groups |
| MLD Snooping | MLD (v1/v2) snooping MLD querier mode support Supports 255 MLD groups |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: ?MAC Address ?IP Address ?Ethertype ?Protocol Type ?VLAN ID ?DSCP ?802.1p Priority Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| Synchronization | IEEE 1588v2 PTP(Precision Time Protocol) ?Peer-to-peer transparent clock ?End-to-end transparent clock |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing OSPFv2 dynamic routing |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 28 Port |
| Veri Transferi | 10 Gigabit |
| Yönetim | Var |
| Ethernet Port | 4 Port |
| SFP Port | 4 Port |
| PoE Port | Yok |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-6325-20S4C4X |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
