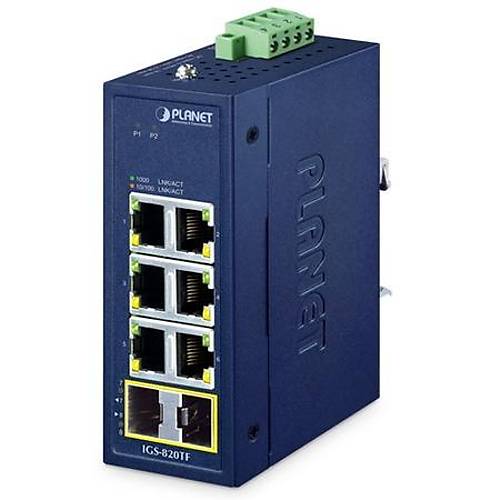

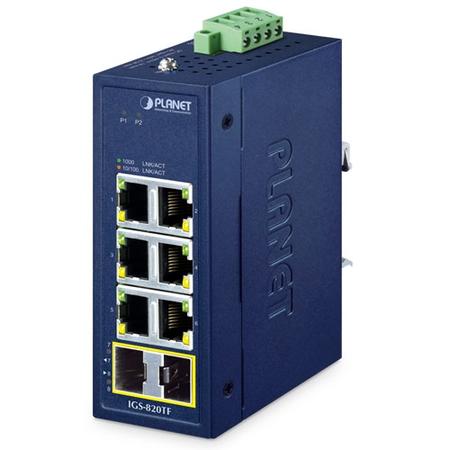

Planet PL-IGS-820TF 6 Port Gigabit 2 Port SFP Compact Endüstriyel Switch
ParaPuan : 3.503.405
| Fiyat | : | 8.408,17 TL |
| Havale / EFT | : | 8.113,88 TL |
Planet PL-IGS-820TF 6 Port Gigabit 2 Port SFP Compact Endüstriyel Switch
| Hardware Specifications | |
|---|---|
| Copper Ports | 6 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation ports (Ports 1 to 6) |
| SFP Slots | 2 x 1000BASE-X SFP interfaces (Ports 7 to 8) Backward compatible with 100BASE-FX transceiver |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Power Requirements | 9~48V DC redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption / Dissipation | System on: Max. 1.44 watts/4.9BTU Ethernet Full Loading: Max. 2.88 watts/9.8BTU |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 41 x 70 x 115 mm |
| Weight | 345g |
| LED | 2 x LED for system and power: ?Green: Power 1 ?Green: Power 2 2 x LED for each port: ?10/100/1000T RJ45 Ports: ??Green: 1000Mbps LNK/ACT ??Amber:10/100Mbps LNK/ACT ?100/1000BASE-X SFP Interfaces: ??Green: 1000Mbps LNK/ACT ??Amber: 100Mbps LNK/ACT |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K entries |
| Buffer Memory | 4M bits on-chip buffer memory |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps@64bytes |
| Jumbo Frame | 9Kbytes |
| Network Cables | 10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90%, Storage: 5~90% (non-condensing) |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | Endüstriyel |
| Port Sayısı | 6 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Yok |
| Ethernet Port | 5 Port |
| SFP Port | 2 Port |
| PoE Port | Yok |
| PoE Değeri (Watt) | Yok |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-820TF |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
