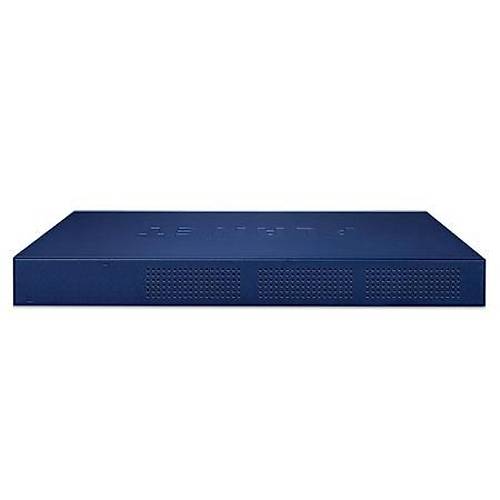

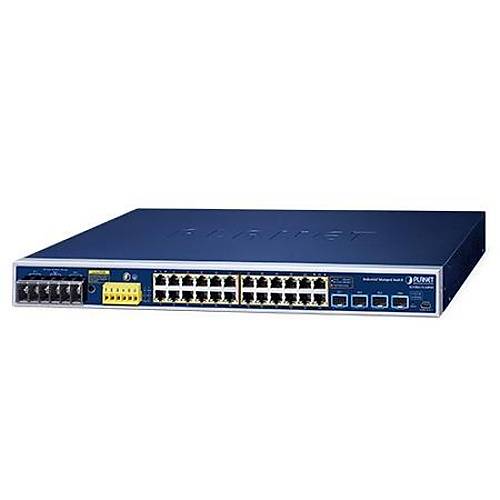

Planet PL-IGS-R4215-24P4X 24 Port Gigabit PoE+ 4 Port 10G SFP+ L2 Yönetilebilir PoE Switch
ParaPuan : 19.075.445
| Fiyat | : | 45.781,07 TL |
| Havale / EFT | : | 44.178,73 TL |
6.205,88 TL'den başlayan taksit seçenekleri için tıklayın.
Planet PL-IGS-R4215-24P4X 24 Port Gigabit PoE+ 4 Port 10G SFP+ L2 Yönetilebilir PoE Switch
| Hardware Specifications | |
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24) |
| PoE Injector Port | 24 ports with 802.3at PoE+ injector function (Ports 1 to 24) |
| SFP+ Ports | 4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4) Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers |
| Console | 1 x USB Type-C to RS232 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Terminal Block | Fixed 6-pin terminal block for power input ?Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface ?Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for port breakdown and power failure. Alarm relay current carry ability: 3A @ 24V DC |
| Digital Input (DI) | 2 digital input (DI) ?Level 0: -24V~2.1V (±0.1V) ?Level 1: 2.1V~24V (±0.1V) ?Input load to 24V DC, 10mA max. |
| Digital Output (DO) | 2 digital output (DO) ?Open collector to 24V DC, 100mA max. |
| Enclosure | IP30 metal case |
| Installation | Rack-mount kit |
| Dimensions (W x D x H) | 444 x 200 x 44.2 mm, 1U height |
| Weight | 3250g |
| Power Requirements | Dual 48-54V DC, 12A max. |
| Power Consumption/ Dissipation | Max. 10.7 watts / 36.6 BTU (system on) Max. 486 watts / 1658.4 BTU (Full loading) |
| EFT Protection | 6KV DC |
| ESD Protection | 6KV DC |
| LED | System: ?DC1 (Green) ?DC2 (Green) ?Alarm (Red) ?Ring (Green) ?R.O. (Green) ?I/O (Red) Per 10/100/1000T RJ45 PoE+ Ports: ?Left: 1000 LNK/ACT (Green) ??? 10/100 LNK/ACT (Amber) ?Right: 802.3at (Amber) Per 10G SFP+ Interface: ?1G/2.5G LNK/ACT (Green) ?100/10G LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 128Gbps/non-blocking |
| Switch Throughput@64Bytes | 95.23Mpps @64Bytes |
| Address Table | 16K MAC address table with auto learning function |
| Shared Data Buffer | 12Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 12KBytes |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard ?Per port 48V~54V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard ?Per port 50V~54V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Power Power Budget | Single Power input: 240W maximum Dual Power input: 440W maximum ?Dual power input must be the same as DC voltage, like dual 54V. |
| Max. Number of Class 2 PDs | 24 |
| Max. Number of Class 3 PDs | 24 |
| Max. Number of Class 4 PDs | 16 |
| PoE Management Functions | |
| PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
| Enhanced PoE Mode | Standard/ Legacy/ Force |
| Active PoE Device Live Detection | Yes |
| PoE Power Recycling | Yes, daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. up to 250 meters |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
| VLAN | 802.1Q tag-based VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk ?Static Port Trunking, (Max. 8 groups with 8 ports for each group) ?Dynamic LACP (Max. 8 groups with 8 ports for each group) |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IGMP Querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD snooping v2, v3, up to 256 multicast groups |
| QoS | 8 mapping ID to 8 level priority queues ?Port number ?802.1p priority ?802.1Q VLAN tag ?DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
| Layer 3 Functions | |
| IP Interfaces | Max. 64 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
| Port Security | Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Teknik Özellikler | |
|---|---|
| Kullanım Tipi | PoE Switch |
| Port Sayısı | 28 Port |
| Veri Transferi | 1 Gigabit |
| Yönetim | Var |
| Ethernet Port | Yok |
| SFP Port | 4 Port |
| PoE Port | 24 Port |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IGS-R4215-24P4X |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
