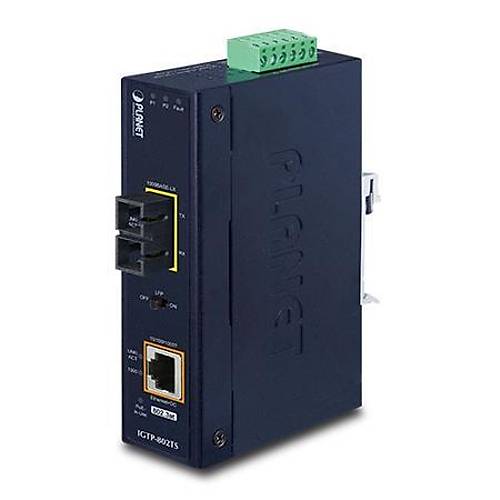

    PLANET PL-IGTP-802TS 10 Km 1000BASE-LX To 10/100/1000BAse-T Media Converter


    1000BASE-LX to 10/100/1000BASE-T 802.3at PoE+ Industrial Media Converter (SC,SM) -10km

    https://www.planet.com.tw/en/product/igtp-80xt-series-v2

    Ethernet Interface
    Copper10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance.
    Auto-negotiation, auto MDI/MDI-X with PoE injector function
    1000BASE-X Fiber-optic Connector TypeIGTP-802T: SC
    IGTP-802TS: SC
    IGTP-805AT: SFP (LC)
    Fiber CableIGTP-802T
    Multi-mode: 50/125μm or 62.5/125μm optic fiber

    IGTP-802TS
    Single-mode: 9/125μm optic fiber

    IGTP-805AT
    Varying on SFP Module
    Fiber Cable DistanceIGTP-802T: 220m & 550m
    IGTP-802TS: 10km
    IGTP-805AT: Varying on SFP Module
    Fiber Optical FrequencyIGTP-802T: 850nm
    IGTP-802TS: 1310nm
    IGTP-805AT: Varying on SFP Module
    Launch PowerIGTP-802T
    Max. -4dBm
    Min. -9.5dBm

    IGTP-802TS
    Max. -3dBm
    Min. -9.5dBm

    IGTP-805AT
    Varying on SFP Module
    Receive SensitivityIGTP-802T: -13.5dBm
    IGTP-802TS: -14.4dBm
    IGTP-805AT: Varying on SFP Module
    Maximum Input PowerIGTP-802T: -18dBm
    IGTP-802TS: -20dBm
    IGTP-805AT: Varying on SFP Module
    Power Over Ethernet
    PoE StandardIEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    PoE Power Output52V DC: 15.4 watts
    52V DC: 30 watts
    PoE Power Supply TypeEnd-span
    Power Pin Assignment1/2(+), 3/6(-)
    PoE Power Budget30 watts
    Hardware Specifications
    SpeedTwisted-pair:
    10/20Mbps for half/full duplex
    100/200Mbps for half/full duplex
    1000/2000Mbps for full duplex

    Fiber Optic:
    200Mbps / 2000Mbps for full duplex
    Flow ControlBack pressure for half duplex mode
    IEEE 802.3x pause frame for full duplex mode
    Maximum Frame Size9K
    LEDSystem: Power 1, Power 2 and Fault LED (Green)
    Fiber 1000BASE-X: LNK/ACT (Green)
    TP 10/100/1000BASE-T: LNK/ACT, 1000 (Green)
    PoE: Power-in-use (Orange)
    Dimensions (W x D x H)135 x 87 x 32 mm
    WeightIGTP-802T: 510g
    IGTP-802TS: 510g
    IGTP-805AT: 500g
    Unit Input Voltage12 ~ 48V DC
    24V AC
    Power Consumption24V: 4.3watts/14BTU, 48V: 4.8watts/16BTU (without PoE)
    24V: 33watts/112BTU, 48V: 31watts/105BTU (with PoE)
    Link Fault Passthrough DIP SwitchON/OFF
    EnclosureIP30 metal case
    InstallationDIN-rail kit and wall-mount ear
    ESD Protection6KV DC
    AlarmProvides one relay output for power failure
    Alarm relay current carry ability: 1A @ DC 24V
    Cables10/100/1000BASE-T:
    2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
    EIA/TIA-568 100-ohm STP (maximum 100 meters)

    100BASE-FX/1000BASE-SX/LX:
    Multi-mode: 50/125μm or 62.5/125μm optical fiber
    Single-mode: 9/125μm optical fiber
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Protocols and Standards ComplianceIEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3z Gigabit Ethernet over Fiber Optic
    IEEE 802.3x Flow Control
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    Stability TestingIEC60068-2-32 (free fall)
    IEC60068-2-27 (shock)
    IEC60068-2-6 (vibration)
    Environment
    TemperatureOperating: -40~75 degrees C
    Storage: -40~85 degrees C
    HumidityOperating: 5~90% (non-condensing)
    Storage: 5~90% (non-condensing)

    Diğer Özellikler
    Stok KoduPL-IGTP-802TS
    MarkaPLANET
    Stok DurumuVar
    Garanti (Yıl)2
