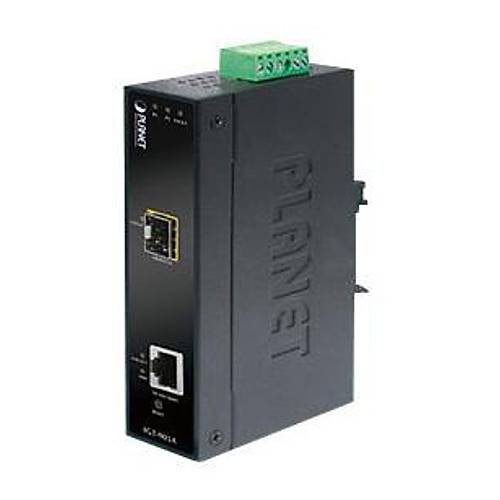

Planet PL-IGTP-805At 1000Base-Sx/Lx To 10/100/1000Base-T Poe Sfp

Görsel 1
ParaPuan : 2.129.795
Fiyat:
5.111,51 TL
Havale / EFT:
5.034,84 TL
971,19 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava
Endüstriyel Tip Yönetilebilir Media Converter
10/100/1000Base-T to mini-GBIC (LC, MM/SM)
IP30, -30 ile 75 Derece C


Interface

• 1-port 10/100/1000Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function

• 1 Mini-GBIC slot, provides multi choice of SFP modules on



Industrial Conformance

• 12V to 48V DC, redundant power

• -30 to 75 degrees C operating temperature

• IP-30 metal case

• Relay alarm for port breakdown

• Supports 6KV DC Ethernet ESD protection

• Free fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design



Layer 2 Features

• Store-and-Forward mechanism

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

• Maximum frame size to 9216 Bytes

• Loop detection / Broadcast / Multicast / Unicast storm control

• Supports VLANs

 –IEEE 802.1Q Tagged based VLAN

 –Up to 16 VLANs groups, out of 4K VLAN IDs

 –Management VLAN



Quality of Service

• Ingress/Egress Bandwidth control on TP / Fiber port

• 4 priority queues, strict priority and Weighted Round Robin (WRR)

• Traffic classification by:

 –IEEE 802.1p Class of Service

 –IP DSCP priority

 –IP Address priority



Management

• Built-in IP-based Web interface for remote management

• SNMP v1 / v2c and 4 RMON groups, Event trap and SNMP trap support

• Manual IP address setting / DHCP client for IP address assignment

• TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

• 16 TCP / UDP Filter groups

• Password setting, IP setting and devices description setting through Planet Smart discovery utility

• Firmware upgrade via remote Web interface

• Reset Button at the front panel for the factory default reset

• Display the current operating temperature





Hardware Specifications
Copper Interface1 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
Optic InterfaceSFP
Optical ModeVary on module
Optic WavelengthVary on module
SpeedTwisted-pair
10/20Mbps for Half / Full-Duplex
100/200Mbps for Half / Full Duplex
2000Mbps for Full-Duplex

Fiber-optic
2000Mbps for Full-Duplex
CableTwisted-pair
10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m
100Base-TX: 2-pair UTP Cat. 5, up to 100 m
1000Base-T: 4-pair STP Cat 5,6 up to 100m

Fiber-optic Cable
• 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m.
• 9/125μm single-mode cable, provides long distance for
10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP
module)
LED indicator• Power: P1, P2, Fault
• TP: LNK/ACT, 1000
• Fiber: LNK/ACT
Power InputDC 12V to 48V
Redundant power with polarity reverse protection function
Power Consumption7.9 Watts/ 27 BTU (maximum)
Dimensions (W x D x H)135 x 85 x 32 mm
Weight423g
InstallationDIN rail kit and wall mount ear
Management and Layer 2 Features
Management InterfaceWEB / SNMP v1, v2c
Port ConfigurationPort disable/enable
Auto negotiation 10/100/1000Mbps full and half duplex mode selection.
Flow Control disable / enable. Bandwidth control on each port.
VLANIEEE 802.1q Tagged based VLAN , 4K VLAN ID, up to 16 VLAN groups
Q-in-Q VLAN
QoSTraffic classification based on :
• 802.1p priority
• IP DSCP field in IP Packet
• IP Address
Bandwidth ControlIngress / Egress bandwidth control
• Rate range: 512kbps to 500Mbps
Storm control
• Broadcast / Multicast / Unknown Unicast packet
Standard Conformance
Standards ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX / FX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-SX / LX Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
Regulation ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Environmental Specifications
TemperatureOperating: -30~75 degrees C
Storage: -40~85 degrees C
HumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
Diğer Özellikler
Stok KoduPL-IGTP-805AT
MarkaPLANET
Stok DurumuVar
Garanti (Yıl)2
4711213686979
