Planet PL-IHD-420PR 4K 60Hz HDMI USB over IP Recevier with PoE Video Wall
ParaPuan : 9.693.705
| Fiyat | : | 23.264,89 TL |
| Havale / EFT | : | 22.450,62 TL |
4.420,33 TL'den başlayan taksit seçenekleri için tıklayın.

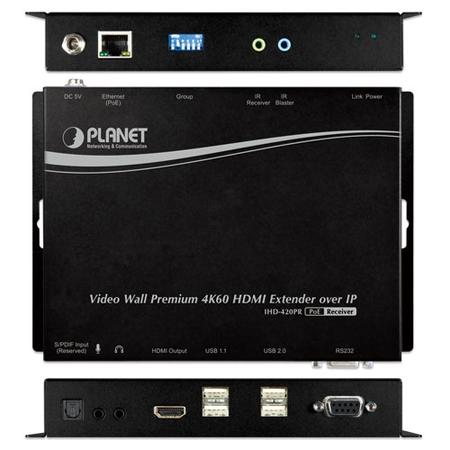

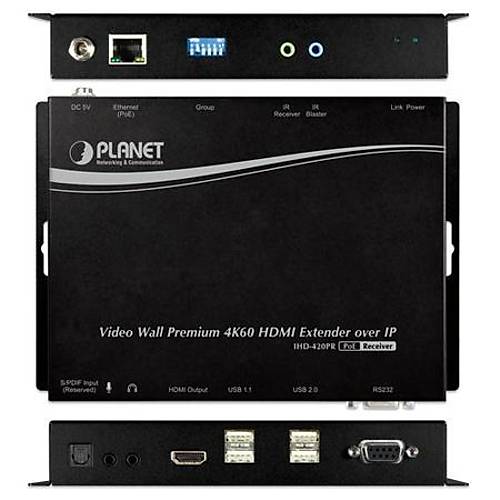

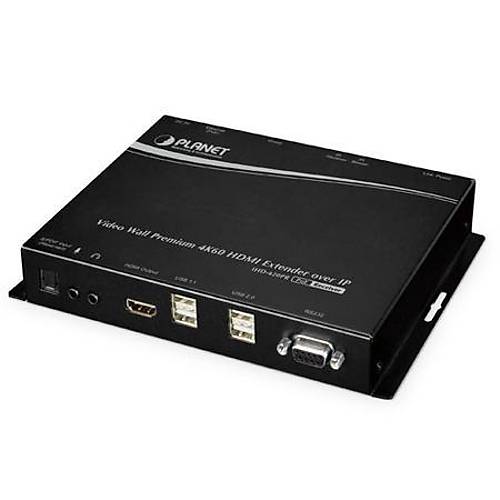

Planet PL-IHD-420PR 4K 60Hz HDMI USB over IP Recevier with PoE Video Wall
| Hardware Specifications | |
|---|---|
| Role | IHD-420PT Transmitter Connecting to HDMI video source device IHD-420PR Receiver Connecting to HDMI Display device |
| Network Interface | RJ45 port (10/100/1000BASE-T Ethernet) x 1 |
| Serial Interface | DB-9 female connector for RS232 |
| LED | Power LED x 1 Link LED x 1 |
| Video In Interface | IHD-420PT HDMI A Type female connector x 1 IHD-420PR N/A |
| Video Out Interface | IHD-420PT N/A IHD-420PR HDMI A Type female connector x 1 |
| External Audio In Interface | 3.5mm jack x 1 |
| External Audio Out Interface | 3.5mm jack x 1 |
| IR | 3.5mm jack for IR blaster/receiver cable |
| RS-232 | Yes, you need to adjust the DIP switch at the bottom of both devices to the "1" position. Setting it to "ON" activates the debug mode. |
| Channel Switching | DIP (64 channels) |
| USB | IHD-420PT USB 2.0 type B x 1 (For PC/server) IHD-420PR USB 1.1 type A x 2 USB 2.0 type A x 2 (For mouse/keyboard) |
| S/PDIF Input | Reserved |
| Power Supply | IEEE 802.3af/at PoE+ 5V DC, 2A |
| CASE | Metal |
| Power Consumption | 7W (Max.) |
| ESD Protection | 15KV for air-gap discharge 8KV for contact discharge |
| Dimensions (W x D x H) | 194.2 x 132.6 x 28.5 mm |
| Weight | 645 g |
| Video and Audio | |
| Maximum Video Wall | 8 x 16 (row x column) |
| HDMI Video In Resolution | IHD-420PT 4K (3840x2160) @ 60/50 Hz 4K (3840x2160) @ 30/25/24 Hz 1080p @ 60/50 Hz XGA, SXGA, UXGA, WSXGA IHD-420PR N/A |
| HDMI Video Out Resolution | IHD-420PT N/A IHD-420PR 4K (3840x2160) @ 60/50 Hz 4K (3840x2160) @ 30/25/24 Hz 1080p @ 60/50 Hz XGA, SXGA, UXGA, WSXGA |
| HDMI Video Out Rotation | 0 degrees/90 degrees/180 degrees/270 degrees |
| Compression | Visual lossless compression |
| Audio | HDMI: 2-ch uncompressed audio |
| General | |
| Management Interfaces | Web management |
| System Expandability (max.) | 64 groups |
| Resolution Identification | EDID (Extended Display Identification Data) |
| Security | HDCP compliant (2.2) |
| Media Stream Bandwidth | Approximately 500Mbps@ 4K 60Hz |
| Maximum Distance (between unit and PoE switch) | 100 meters (330 feet) over CAT5e/6 cable |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PL-IHD-420PR |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
