Planet PL-ISW-621TS15 4 Port 10/100/Base-Tx 2 Port SFP Endüstriyel Ethernet Switch

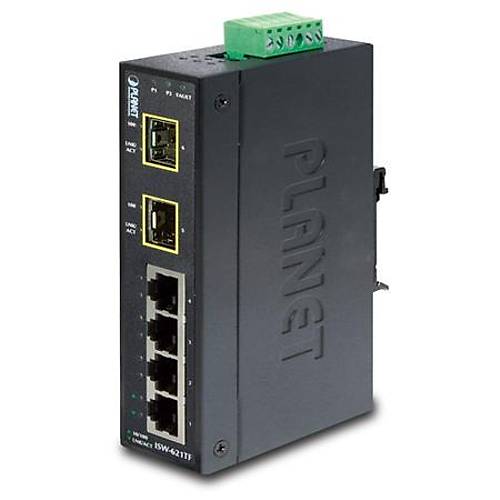

Görsel 1
ParaPuan : 1.146.200
Fiyat:
2.705,03 TL
245,26 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava
Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch)
4-Port 10/100Base-TX
2-Port 100Base-FX Single-mode SC 15 km
IP30, 40~75 Derece C

Physical Port
• 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
• 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
• 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance

Layer 2 Features
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
• Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
• High performance Store and Forward architecture
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (Switching Fabric): 1.2Gbps
• Integrated address look-up engine, supporting 2K absolute MAC addresses
• 1Mbit on-chip frame buffer
• Automatic address learning and address aging
• CSMA/CD Protocol

Industrial Case / Installation
• IP30 metal case / protection
• DIN rail and wall mount design
• 12 to 48V DC, redundant power with polarity reverse protection and connective removable
?terminal block for master and slave power
• Supports EFT protection 6KV DC for power line
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C wide operating temperature



Hardware Specifications
Copper Interface Ports
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X

Cable
10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
Optical Interface Port
2 x 100Base-FX

Cable
ISW-621T: 50/125μm / 62.5/125μm fiber
ISW-621TS15: 9/125μm fiber

Mode
ISW-621T: Multi-mode
ISW-621TS15: Single-mode

Distance
ISW-621T: 2km
ISW-621TS15: 15km

Wavelength
ISW-621T: 1310nm
ISW-621TS15: 1310nm

Launch Power
ISW-621T: Max. -14dBm, Min. -20dBm
ISW-621TS15: Max. 0dBm, Min. -20dBm

Receive Sensitivity
ISW-621T: -32dBm
ISW-621TS15: -32dBm

Max. Input Power
ISW-621T: -14dBm
ISW-621TS15: 0dBm
Dimensions (W x D x H) 135 x 97 x 32 mm
Weight 442g
Power Requirements 12~48V DC
Redundant power with polarity reverse protection function
Power Consumption / Dissipation Max. 16 watts / 54 BTU
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Switch Fabric 1.2Gbps
Throughput (Packet Per Second) 0.89Mpps @ 64Bytes
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x full-duplex Flow Control
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Operating Humidity Operating: 5~90%
Storage: 5~90% (non-condensing)
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Teknik Özellikler
Kullanım TipiEndüstriyel
Port Sayısı4 Port
Veri Transferi10/100 Mbps
YönetimYok
Ethernet Port4 Port
SFP Port2 Port
PoE PortYok
Diğer Özellikler
Stok KoduPL-ISW-621TS15
MarkaPLANET
Stok DurumuVar
Garanti (Yıl)2
