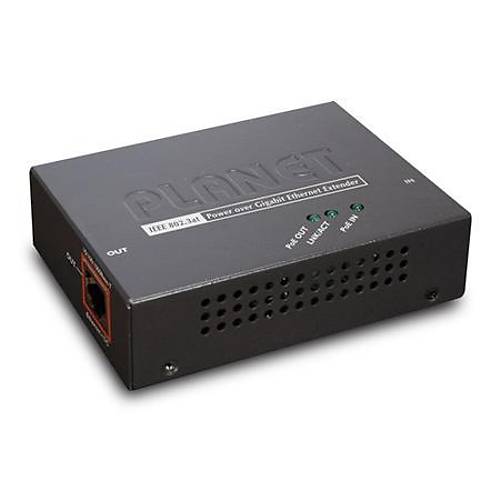

Planet PL-POE-E201 IEEE 802.3at Power over Gigabit Ethernet Extender

Görsel 1
Görsel 2
ParaPuan : 909.150
2.181,96 TL
Havale / EFT:
2.149,23 TL
407,30 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

EEE 802.3at Power over Gigabit Ethernet Extender

IEEE 802.3at / 802.3af Power over Ethernet compliant
• Complies with IEEE 802.3 / 802.3u / 802.3ab 10/100/1000Base-T
• Extends the range of PoE to more than 100 meters (328ft.)
• Automatically detects and protects PoE equipment from being damaged by incorrect installation
• Multiple units, daisy-chain installation support
• Forwards both Ethernet data and PoE power to the remote device
• No external power cable installation required
• Compact size, wall-mountable design
• Plug and Play



LAN IN1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ-45 connector
LAN OUT1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ-45 connector
Power over Ethernet
PoE StandardIEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High Power over Ethernet)
PoE Power Supply TypeMid-Span / Type B
PoE Power Output52V DC, 510mA, Max. 26 watts
Power Pin Assignment4/5(+), 7/8(-)
Maximum Distance4 units, daisy-chain installation with 500m support
Hardware Specifications
Data Rate10/100/1000Mbps
Switch ArchitectureStore-and-Forward
Switch Throughput10Mbps:14880pps@64Bytes
Maximum Frame Size1552Bytes
Flow ControlBack pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
LED Indicators??? 1 x PoE IN (Green)
??? 1 x LAN Data (Green)
??? 1 x PoE OUT (Green)
ProtectionESD (Ethernet): 2KV (TBD)
Surge (EFT for power) : 2KV (TBD)
Dimensions (W x D x H)94 x 70 x 26 mm
Power RequirementsIEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption3.2 watts (system maximum)
MechanicalMetal / Wall mountable
Network Cable10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft)
100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m, 328ft)
Standards Conformance
Regulation ComplianceFCC Part 15 Class A, CE
Standard ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3x Flow Control
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Diğer Özellikler
Stok KoduPL-POE-E201
Stok DurumuVar
Garanti (Yıl)2
